Selecting Fused Silica and Quartz Glass for Precision Components

Why Material and Coating Choice Defines Precision Glass Performance

The substrate you specify sets the ceiling for your component’s optical clarity, thermal resilience, and chemical inertness. In precision glass manufacturing, even a decade‑old specification can be improved by re‑evaluating material choices against today’s available options. Fused silica and quartz glass are often the starting point for high‑end applications, but the final decision hinges on a clear understanding of each material’s behavior in your operating environment.

For B2B buyers—optical engineers, process designers, and procurement specialists—the goal is to balance optical performance, mechanical durability, and cost. An AR coating can boost transmission to 99%, but only if the substrate can withstand the coating process and end use. This guide walks through the most common glass materials, their trade‑offs, and how surface treatments further refine component performance.

Available Glass Materials at a Glance

The glass industry offers distinct material families, each with strengths for specific precision tasks. Below are the options typically considered for components like windows, wafers, lenses, and substrates:

• Fused Silica Glass: A synthetic, ultra‑pure amorphous silica. Contains virtually no metallic impurities, providing exceptional UV transmission and laser damage threshold. Preferred for excimer lasers, semiconductor optics, and deep‑UV applications.

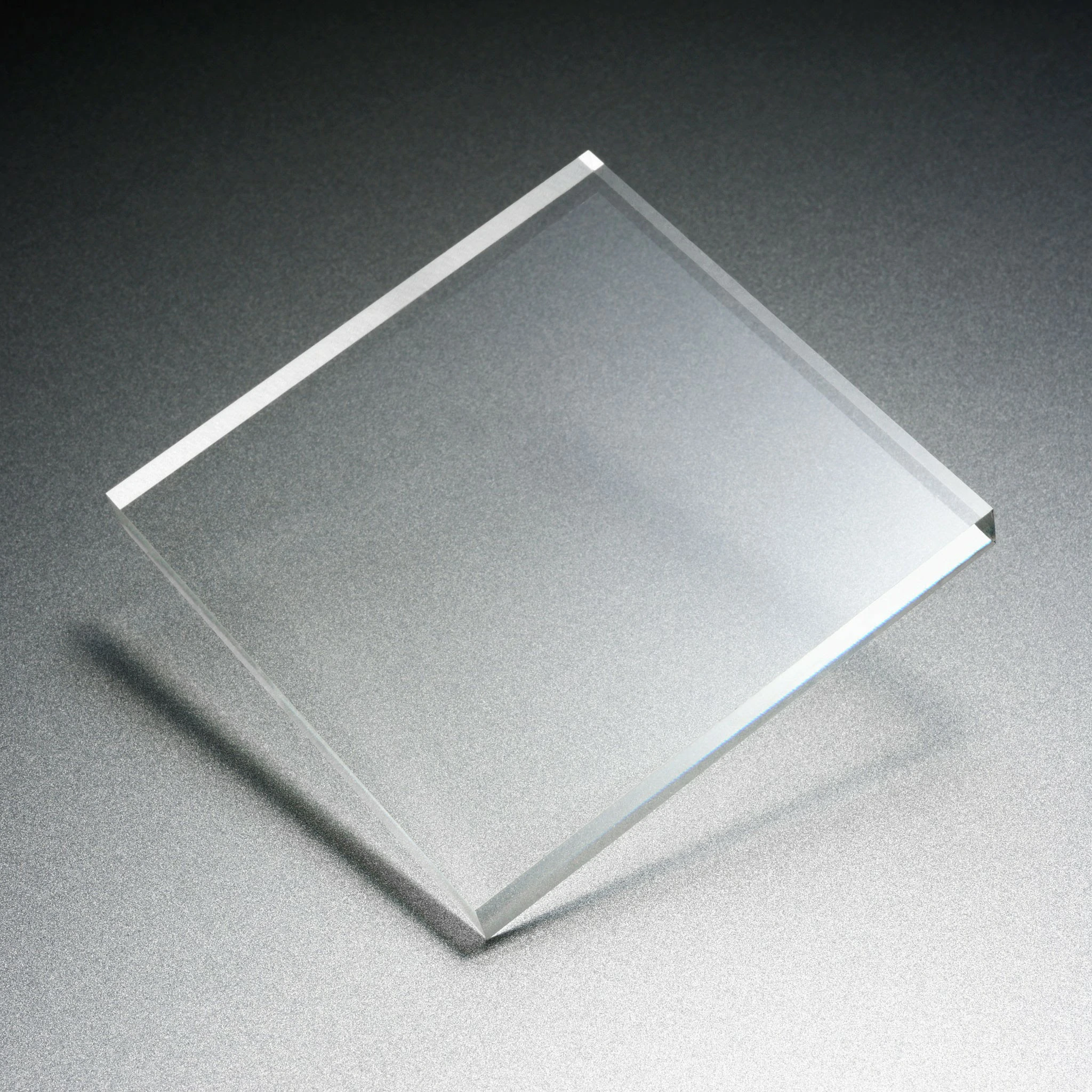

• Quartz Glass (Fused Quartz): Produced by melting natural quartz crystals. Slightly lower purity than synthetic fused silica but still >99.9% SiO₂. More economical while retaining excellent thermal shock resistance and high softening point. Common in furnace tubes, high‑temperature viewports, and non‑critical optics.
• Borosilicate Glass: Contains boron trioxide, giving a low thermal expansion coefficient (CTE) similar to fused silica but with easier melting and forming. Often used for labware, sight glasses, and lower‑cost thermal applications. Transmission cuts off in the UV around 300 nm.
• Soda‑Lime Glass: The most common and least expensive flat glass. Used where optical quality and thermal resistance are secondary to cost, such as protective cover plates or disposable substrates. Not suitable for UV or high temperatures.
• Aluminosilicate Glass: Engineered for high mechanical strength and chemical durability. Commonly chemically strengthened for touch screens and rugged cover glasses. Moderate thermal resistance; can be used where borosilicate is too fragile but sapphire is over‑budget.
• Sapphire (Single Crystal Al₂O₃): The hardest of the oxide glasses, offering extreme scratch resistance, high thermal conductivity, and broad transmission from UV to mid‑IR. Ideal for military optics, watch windows, and harsh‑environment sensors. Significantly more expensive and harder to machine.
• Optical Glass (e.g., BK7, crown glass): Formulated for consistent refractive index and high transmission in the visible spectrum. Used in lenses, prisms, and beam splitters. Limited UV/IR performance and poor thermal shock resistance compared to fused silica.

Properties and Trade‑offs of Each Material

Evaluating materials requires comparing several key attributes side by side. The table below summarizes typical relative performance; exact values depend on grade and manufacturer.

Optical Transmission: Fused silica offers outstanding transparency from the UV (as low as 185 nm) through the near‑IR. Quartz glass has slightly higher absorption in the deep UV due to trace impurities. Borosilicate cuts off around 300 nm, while soda‑lime is limited to visible and near‑IR. Sapphire transmits from 150 nm to 5 µm, covering a wider range but with some IR absorption bands. Optical glass is optimized for visible and NIR.

Thermal Properties: Fused silica and quartz glass have extremely low CTE (~0.55×10⁻⁶/°C), making them virtually immune to thermal shock. Borosilicate is also low (3–6×10⁻⁶/°C). Soda‑lime and optical glasses have higher CTE and risk fracture under rapid temperature changes. Sapphire has moderate CTE but high thermal conductivity for heat dissipation.

Chemical Resistance: Fused silica and quartz resist most acids and halogens but are attacked by alkaline solutions and hydrofluoric acid. Borosilicate offers similar acid resistance with slightly better alkali durability. Aluminosilicate can be formulated for enhanced chemical toughening. Soda‑lime is susceptible to acids and weathering.

Hardness and Strength: Sapphire (Mohs 9) is second only to diamond and extremely scratch‑resistant. Aluminosilicate can be chemically strengthened for high surface compression. Fused silica and quartz are harder than most glasses but can still be scratched. Soda‑lime is the softest and most prone to damage.

Cost: Soda‑lime is the lowest cost, then borosilicate, quartz glass, aluminosilicate, fused silica, optical glass (depending on grade), and sapphire as the most expensive. Price escalates with purity, homogeneity, and fabrication complexity.

Coating and Surface‑Treatment Options

Bare glass rarely meets all requirements. Coatings modify surface properties and are critical for optical throughput, electrical function, or environmental protection.

• Anti‑Reflection (AR) Coatings: Multiple dielectric layers reduce reflectance and increase transmission. Broadband AR can cover visible to near‑IR; V‑coats target a single wavelength for >99.5% transmission. Trade‑off: adds cost and requires careful handling to avoid scratches.
• Mirror Coatings: Metallic (aluminum, gold, silver) or dielectric stacks create high reflectance. Gold mirrors excel in IR but are soft; dielectric mirrors are durable and can exceed 99.9% reflectance at specific wavelengths. Trade‑off: narrow wavelength range for dielectrics; gold is fragile.
• ITO (Indium Tin Oxide) Coatings: Transparent conductive coating used for EMI shielding, heated windows, or touch sensors. Trade‑off: reduces transmission slightly (typically 5–10% loss) and can be brittle.
• Hydrophobic/Oleophobic Coatings: Fluoropolymer‑based layers that repel water and oils, reducing cleaning frequency. Commonly applied to cover glasses and outdoor optics. Trade‑off: limited lifetime under abrasion or UV exposure.
• Tempering (Thermal Strengthening): Increases glass strength and alters break pattern to safer, small fragments. Trade‑off: can introduce optical distortion and warping; not suitable for high‑precision optics.
• Chemical Strengthening: Ion exchange creates surface compressive stress, increasing break resistance without optical distortion. Works best on aluminosilicate and some soda‑lime glasses. Trade‑off: limited to glasses with mobile ions; depth of layer is shallow.

Matching Material and Coating to Your Application

Start by identifying the primary stressor: is it thermal cycling, deep UV exposure, abrasive particles, or chemical attack? For a semiconductor wafer stage requiring nanometer stability, fused silica with its near‑zero CTE and high chemical purity is ideal. For a furnace viewing port, quartz glass or borosilicate can suffice if UV transparency isn’t needed. For outdoor sensor covers, sapphire with a hydrophobic coating resists both scratching and rain.

Regulatory compliance is rarely a deal‑breaker with established glass suppliers, but always verify RoHS and REACH declarations, especially for coated components. Most bulk glasses (SiO₂, Al₂O₃) are inherently compliant; the concern lies in coatings and adhesives. Reputable manufacturers provide documentation to support your product’s compliance file.

Request a Material Recommendation

Choosing the optimal glass and coating combination can be complex. If you are weighing fused silica against quartz glass for a new design, or exploring aluminosilicate as a lighter alternative, our application engineers can help. Describe your operating wavelength, temperature range, and environmental conditions for a tailored recommendation—without obligation.

Critical Specifications for Procuring Fused Silica and Quartz Glass Parts

When sourcing precision glass components, procurement teams must verify dimensional tolerances, surface quality, and material purity against the application’s requirements. Fused silica and quartz parts are often deployed in UV optics, semiconductor processing chambers, and laser systems—environments where even minor deviations can lead to yield loss or system failure. Request detailed datasheets from your supplier that cover coefficient of thermal expansion (CTE), transmission curves, impurity levels, and mechanical properties for the specific grade being proposed.

For components that demand tight tolerances, fused silica CNC machining routinely achieves dimensional accuracies down to ±0.02 mm, with surface finishes below 0.5 µm Ra. When surface quality is critical—as in laser optics or high-fluence windows—specify a scratch-dig rating of 20-10 or better to minimize scattering. Quartz glass grinding processes can also deliver sub-micron roughness on lapped and polished faces, provided the shop has the proper metrology to verify it.

Key Facts for Specifying High-Purity Glass Components

• Transmission Range: Fused silica transmits effectively from 185 nm (UV) to over 2 µm, while optical quartz glass covers the visible to near-IR with cost savings.
• Thermal Stability: Both materials withstand continuous use up to 1,000°C with CTE values around 0.5 × 10⁻⁶ /°C, minimizing thermal distortion.
• Surface Quality: Polished fused silica lenses and windows can be supplied with 10-5 scratch-dig per MIL-PRF-13830B for demanding laser applications.
• Material Purity: High-purity fused quartz typically contains less than 50 ppm total impurities, crucial for semiconductor and chemical processing to avoid contamination.

What to Verify in a Fused Silica / Quartz Glass Supplier

Not all suppliers offer the same level of control or documentation. When qualifying a source, evaluate the following points:

• Material Certifications: Ask for traceable certificates that confirm the glass type (e.g., Corning 7980 for fused silica, Heraeus Suprasil, or Schott lithography glass). This ensures the substrate meets the published optical and mechanical specs.
• Dimensional Tolerances: Confirm the shop can hold the required ± tolerance on diameter, thickness, parallelism, and flatness. Prototype runs may accept looser tolerances than production volumes.
• Surface Quality: If your application involves imaging or high-power lasers, specify the scratch-dig number and require interferometric or profilometer data in the inspection report.
• Minimum Order Quantity (MOQ): Some processes (e.g., optical polishing) have higher setup costs, so MOQs for custom designs may start in the low hundreds, while standard wafer sizes can be supplied in smaller lots. Discuss expectations early.
• Lead Times: Stock materials like common quartz sheets ship quickly; custom-machined fused silica parts with coatings may extend lead times. Clarify whether expediting is available for urgent projects.

Material Selection Overview Table

Request a Project Quote

Whether you need a single prototype or a full production batch, our engineering team can review your drawings and recommend the optimal fused silica or quartz glass material. Send your specifications to receive a no-obligation quote, including material selection guidance and DFM feedback.
