Model: laser.
Overview

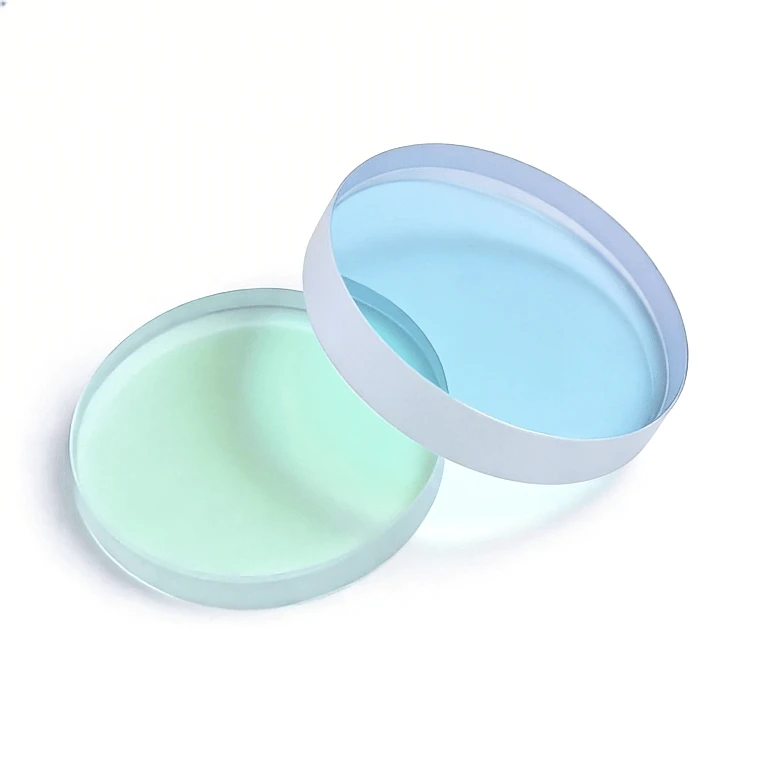

The High-Quality Optical Glass Convex Lens for Laser Applications is supplied as an optical lens made from Fused Silica. Listed geometry: diameter Cusomized, thickness Cusomized, plane lens shape. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Fused Silica |
|---|---|
| Shape | Plane Lens |
| Diameter | Cusomized |
| Thickness | Cusomized |
| Model NO. | laser |
| Single Gross Weight | 0.040kg |
| Color | Transparent |
| Single Package Size | 10X10X5.Cm |
| Cutting Material | Metal Material Cutting |
| Video Outgoing-Inspection | Provided |
| Laser Type | Fiber Laser |
| Spare Parts Type | Machine Consumables |
| Power | 1-30kw |
| Selling Units | Single Item |
| Other laser equipment accessories includE | laserhead,protective lens, nozzle, collimating focusing lens,sensor,ceramic body, radio frequency cable and so on. |
| Supplier | Shanghai Shockoe Automation Technology Co., Ltd. |
Technical data
| Series | Specification | Wavelength nm | Suitable power kw | Single Weight kg | Stock |
| 20 | 18*2 | 1064 | 1-6 | 0.007 | Yes |
| 20*2 | 1064 | 1-6 | 0.007 | Yes | |
| 20*3 | 1064 | 1-6 | 0.008 | Yes | |
| 20*4 | 1064 | 1-6 | 0.01 | Yes | |
| 21.5*26000w | 1064 | 1-6 | 0.01 | Yes | |
| 21.5*215000w | 1064 | 1-15 | 0.008 | Yes | |
| 22.35*4.1 | 1064 | 1-6 | 0.01 | Yes | |
| 24.9*1.5 | 1064 | 1-6 | 0.009 | Yes | |
| 25.4*4 | 1064 | 1-6 | 0.013 | Yes | |
| 27.9*4.1 | 1064 | 1-6 | 0.011 | Yes | |
| 28*4 | 1064 | 1-6 | 0.011 | Yes | |
| 30 | 30*5 | 1064 | 1-6 | 0.014 | Yes |
| 34*510000w | 1064 | 6-10 | 0.019 | Yes | |
| 34*515000w | 1064 | 6-15 | 0.019 | Yes | |
| 34*520000w | 1064 | 6-20 | 0.019 | Yes | |
| 36*3 | 1064 | 1-6 | 0.014 | Yes | |
| 37*710000w | 1064 | 6-10 | 0.026 | Yes | |
| 37*715000w | 1064 | 6-15 | 0.026 | Yes | |
| 37*720000w | 1064 | 6-20 | 0.026 | Yes | |
| 37*730000w | 1064 | 6-30 | 0.026 | Yes | |
| 38.1*1.6 | 1064 | 6-10 | 0.012 | Yes | |
| 50 | 50*2 | 1064 | 6-10 | 0.038 | Yes |
| 55*9 | 1064 | 6-10 | 0.079 | Yes | |
| Any other specifications. Feel Free to contact us |
What to specify when you request a quote
- Material — listed as “Fused Silica”; name the glass or crystal.
- Geometry — listed as “Cusomized”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
