Product type: Flat Lens. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc. Model: OS-0145.
Overview

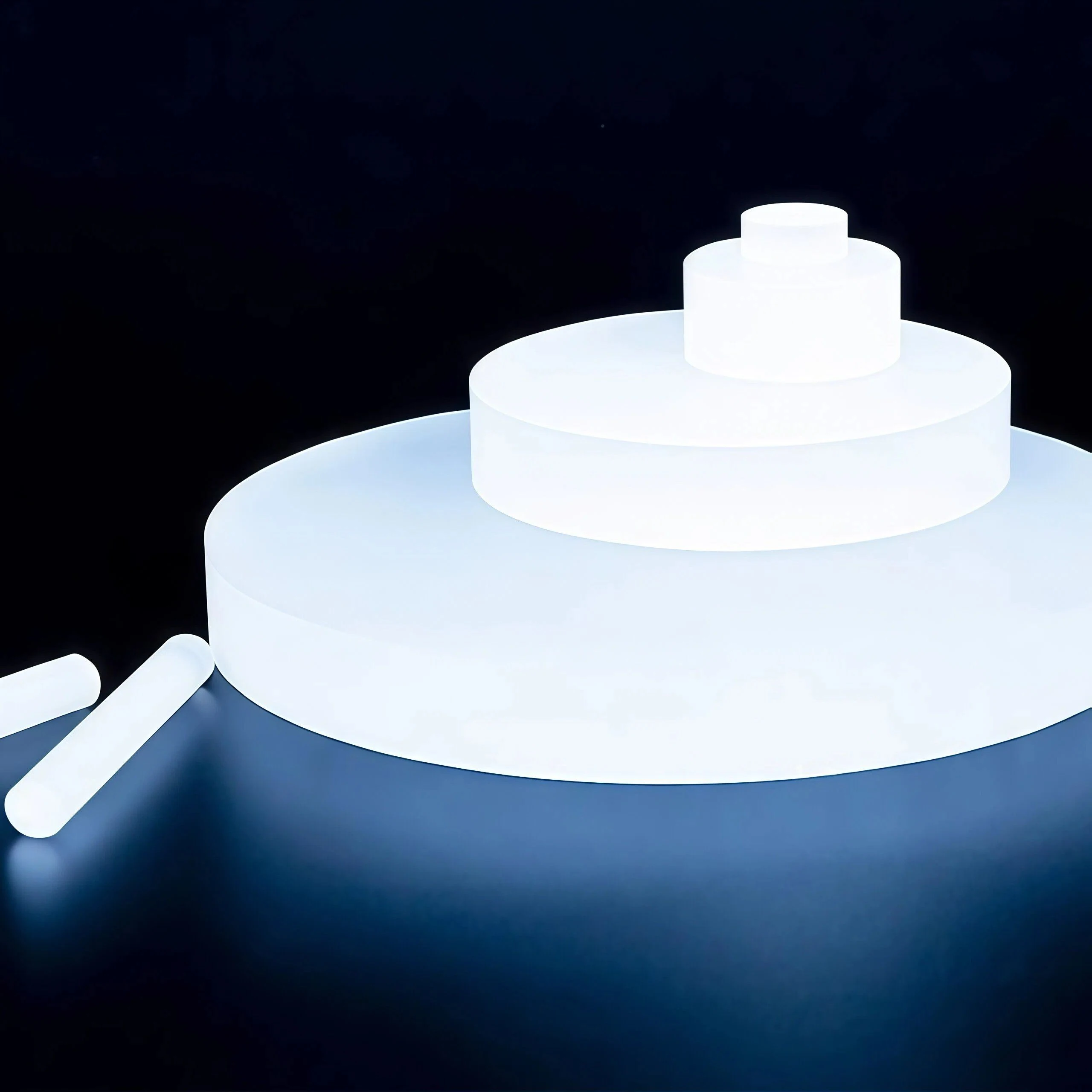

High-Quality Unpolished Calcium Fluoride Infrared Optical Lens Blanks: an optical lens made from Calcium Fluoride. Listed geometry: single-lens shape. Optical / electrical data: transmittance >95%. Supplied uncoated. Listed for Lighting, Medical, Optical, Photography and Laser applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Calcium Fluoride |
|---|---|
| Substrate | Calcium Fluoride |
| Type | Flat Lens |
| Shape | Single-lens |
| Transmittance | >95% |
| Coating | Uncoating |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | OS-0145 |
| Lenses Color | Clear |
| Melting Point | 1420 Celsuis Degrees |
| Supplier | C-Laser (Taicang) Material Technology Co., Ltd. |
Technical data
| Material | calcium fluoride(CaF2) |
|---|---|
| Material Grade | VIR, UV,Raman grade, laser excime grade,lithography grade, low stress |
| Available Sizes | 3mm<φ<420mm |
| Wavelength Range | 130nm-10μm |
| Crystal Structure | Monocrystalline, Polycrystalline |
| Orientation | <111>, <110>, <100> |
| Blank Shape | Round, rectangular, wedge, lens, step, drilled, special-shaped |
What to specify when you request a quote
- Material — listed as “Calcium Fluoride”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Uncoating”; list the band and reflectance or transmission target.
