Product type: Cylindrical Lens. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc. Model: RAY-LH261#.
Overview

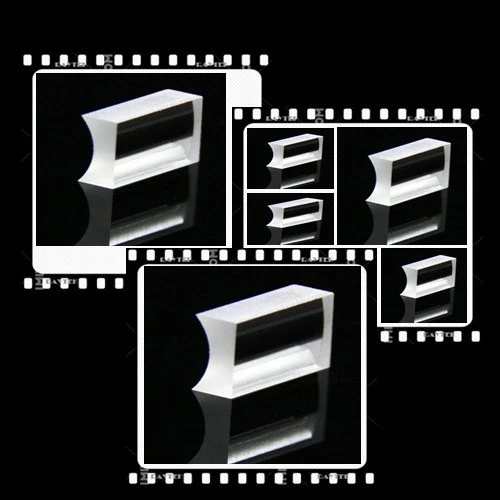

The High-Quality UV Plano-Concave Optical Lens for Superior Imaging is supplied as an optical lens in Optical Glass (UV Fused Silica substrate). Listed geometry: single-lens shape. Optical / electrical data: transmittance Central 80% of Diameter. Coating: Ar.14, Ar.16, Ar.18, Ar.33 Coated; surface quality 40-20 Scratch-Dig or Custom Manufacturing; flatness Lambda/2-4 or Custom Manufacturing. Typical applications: Lighting, Medical, Optical, Photography and Laser. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | UV Fused Silica |
| Type | Cylindrical Lens |
| Shape | Single-lens |
| Transmittance | Central 80% of Diameter |
| Coating | Ar.14, Ar.16, Ar.18, Ar.33 Coated |
| Surface Quality | 40-20 Scratch-Dig or Custom Manufacturing |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | RAY-LH261# |
| Lenses Color | Clear |
| Surface Flatness | Lambda/2-4 or Custom Manufacturing |
| Effective Focal Length(Efl) | From -25.4mm to -300mm |
| Surface Accuracy, Irregularity | Lambda/2-4 or Custom Manufacturing |
| Products Name | UVFS Plano-Concave Cylindrical Lenses |
| Lens Substrates | UV FUSED SILICA |
| Coating Code | Coating Type |
| Applying Fields I | Laser diode beam shaping |
| Applying Fields II | Other |
| Main Characters | 1).High performance 40-20 scratch-dig UV FUSED SILICA substrates |
| Main Optical Tech Specification | Tech Data |
| UV Coating | 2 J/cm |
| Visible Coating | 7.5 J/cm |
| NIR Coating | 7.5 J/cm |
| Popular Physical Size Specification | Size |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Coating Code: | Coating Type | Wavelength Range |
| AR.10 | UV Antireflection Coated | 245-440 nm |
| AR.14 | Visible Multilayer | 430-700 nm |
| AR.16 | NIR Multilayer | 650-1000 nm |
| AR.33 | Laser Line V-Coat Multilayer | 1064 nm |
| – | Uncoated | – |
| Applying Fields I: | Laser diode beam shapingProfile analysis of laser diodeLaser metrologyLaser scanningLine illumination in spectroscopy |
|---|---|
| Applying Fields II: | Other |
| ***** |
| Tech Data | Description |
|---|---|
| Lens Shape | Plano-Concave Cylindrical (Double Concave) |
| Material | UV FUSED SILICA |
| Surface Quality | 40-20 scratch-dig |
| Surface Flatness | λ/2-λ/4 |
| Surface Accuracy, Irregularity | λ/2-λ/4 |
| Surface Accuracy, Power | 1.5 λ |
| Centration | – |
| Damage Threshold | UV Coating: 2 J/cm2, 10 nsec pulses, 10 Hz at 355 nmVisible Coating:7.5 J/cm2, 10 ns pulses, 10 Hz at 532 nmNIR Coating:7.5 J/cm2, 10 ns pulses, 10 Hz at 1064 nm1064nm Coating:12 J/cm2, 10 ns pulses, 10 Hz at 1064 nm |
| Chamfers | 0.5 mm face width |
| Chamfers Angle Tolerance | 45°, typical |
| Focal Length Tolerance | ±2.0% |
| Clear Aperture | ≥central 80% of diameter |
| Effective Focal Length(EFL) | From -25.4mm to -300mm |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “From -25.4mm to -300mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20 Scratch-Dig or Custom Manufacturing”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Ar.14, Ar.16, Ar.18, Ar.33 Coated”; list the band and reflectance or transmission target.
