Product type: Quartz Wafer. Application: Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting, Glass. Model: OS-0023.
Overview

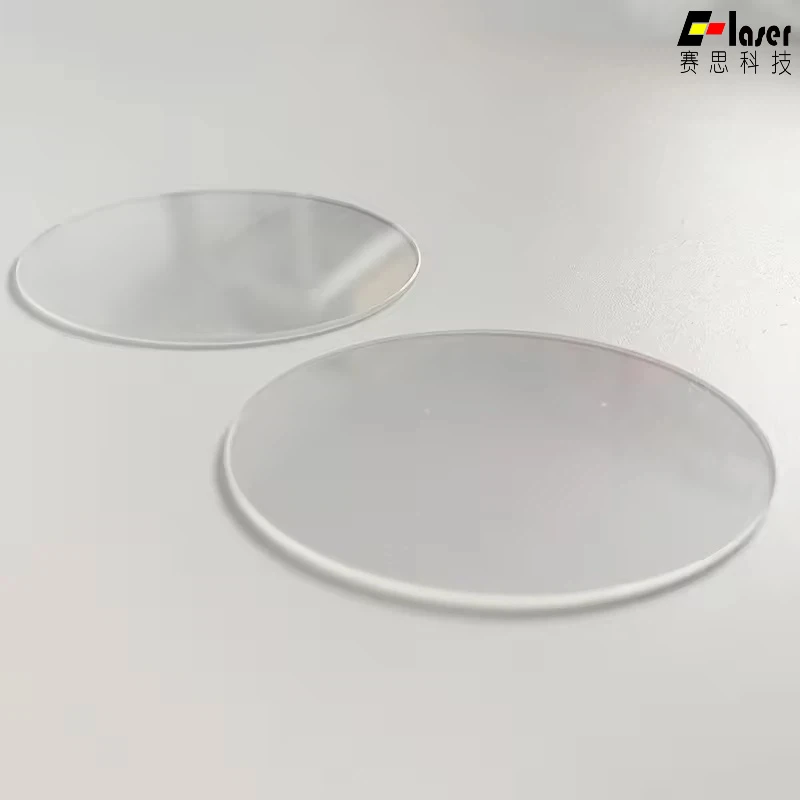

High Temperature Jgs1 /Jgs2 Quartz Glass Plate Transparent Quartz Semiconductor Wafer is a fused silica / quartz wafer made from Corning 7980, Nikon, Hera Quartz/Fused Silica. Listed geometry: size 2, 3, 4, 5, 6, 8, 10, 12 Inches, etc or Customize. It is used in Rubber, Plastic, Chemical, Construction and Metallurgy. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Substrate | Corning 7980, Nikon, Hera Quartz/Fused Silica |
|---|---|
| Type | Quartz Wafer |
| Size | 2, 3, 4, 5, 6, 8, 10, 12 Inches, etc or Customize |
| Application | Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting, Glass |
| Model NO. | OS-0023 |
| Size Tolerance | 0/-0.1mm |
| Ppv | Less Than =20um |
| Purity of Quartz Wafer | 1). Synthetic Quartz Wafer 99.999% 2). High Purity |
| Main Applying | Applying 1 |
| Supplier | C-Laser (Taicang) Material Technology Co., Ltd. |
Technical data
| Main Applying: | |
|---|---|
| Applying 1 | Laser systems/Laser optics |
| Applying 2 | All types of sensors and chips |
| Applying 3 | Optical windows and lens |
| Applying 4 | high frequency circuit / microwave circuit/Integrated circuit |
| Applying 5 | Internet of things array |
What to specify when you request a quote
- Diameter and flat / notch — listed as “2, 3, 4, 5, 6, 8, 10, 12 Inches, etc or Customize”; state diameter, flat or notch and their tolerances.
- Thickness and TTV — give thickness, its tolerance and total thickness variation.
- Polish and roughness — specify single- or double-side polish and roughness.
- Flatness, bow and warp — quote flatness, bow and warp limits.
- Material grade — listed as “Corning 7980, Nikon, Hera Quartz/Fused Silica”; name the grade (JGS1/JGS2, Borofloat 33, alkali-free, sapphire orientation).
