Application: Industrial Use.
Overview

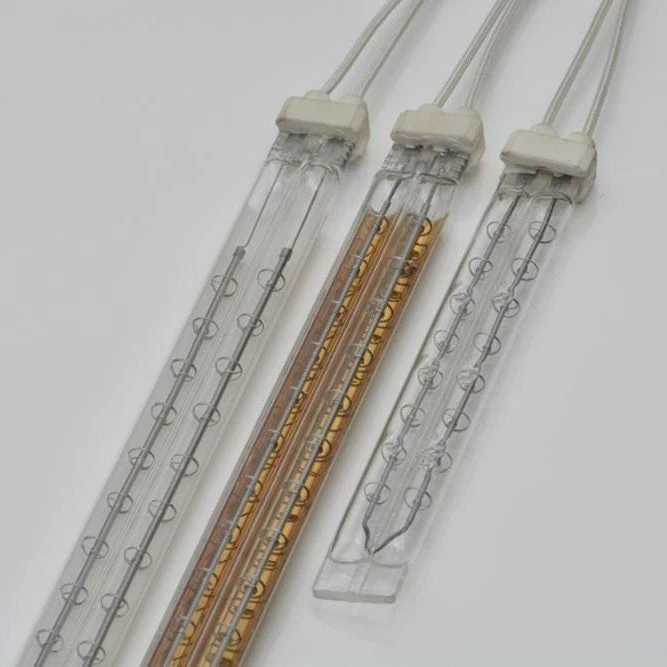

Infrared Quartz IR Tube Bulb with Gold Reflector and White Reflector is an optical mirror made from Quartz Glass. Optical / electrical data: wavelength Short Wave. It is used in Industrial Use. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Quartz Glass |
|---|---|
| Wavelength | Short Wave |
| Usage | Industrial Use |
| Color | Golden |
| Voltage | 24-600V |
| Power | 100-6000W |
| Working Life | Over 5000 Hrs |
| Supplier | Lianyungang Yongsin Quartz Co., Ltd. |
Technical data
| Product Name | Infrared quartz heater tube |
|---|---|
| Outside Diameter | 8-20mm |
| Length | 100-3000mm |
| Power | 100-3000w |
| Voltage | 24V/75V/110/220V/240V,etc |
| Surface | 400~1000 °C |
What to specify when you request a quote
- Material — listed as “Quartz Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
