Application: Medical, Civil, Labs. Model: Mirror.
Overview

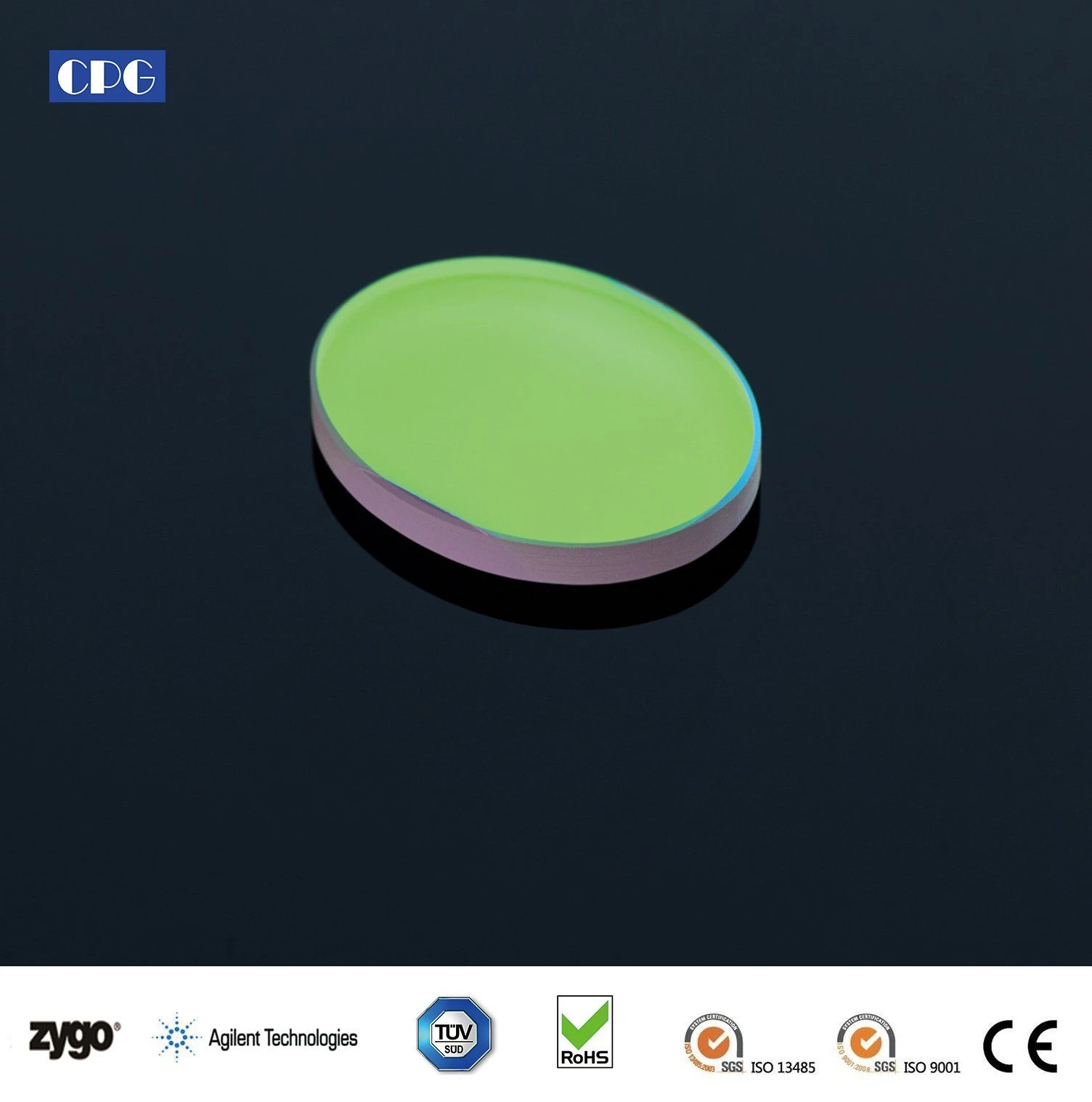

Infrared Schott Zerodur Mirror (Ravg>99%@1530-1570nm): an optical mirror made from Glass. Listed geometry: diameter 25.0×20.0+/-0.1mm, thickness 3.0+/-0.1m, circle shape. It is used in Medical, Civil and Labs. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Shape | Circle |
| Diameter | 25.0×20.0+/-0.1mm |
| Thickness | 3.0+/-0.1m |
| Parallelism | <10arcsec |
| Clear Aperture | >90% |
| Application | Medical, Civil, Labs |
| Model NO. | Mirror |
| ROC1 | Infinity |
| ROC2 | Infinity |
| Chamfer | Protected |
| Standard | MIL-PRF-13830B |
| Inspections | Other Windows CPG handle |
| CPG is also an ISO | 9001&14001 certified manufacture, we deliver fast and provide best cost performance ratio for our customers. |
| Package detail | Optics are packed with Capacitor paper, white paper, custom-made plastic containers etc |
| Supplier | CPG OPTICS LIMITED |
Technical data
| Items | Description | |
| Mirror | Material: | Schott Zerodur |
| Diameter: | 25.0×20.0+/-0.1mm | |
| Thickness: | 3.0+/-0.1m | |
| ROC1: | Infinity | |
| ROC2: | Infinity | |
| Surface quality: | S1&S2:S-D 10-5 | |
| Parallelism: | <10arcsec | |
| Clear Aperture: | >90% | |
| Chamfer: | Protected | |
| Standard: | MIL-PRF-13830B |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — listed as “25.0×20.0+/-0.1mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — listed as “Protected”; state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
