Product type: Flat or Bent. Application: Furniture, Building. Model: i55.
Overview

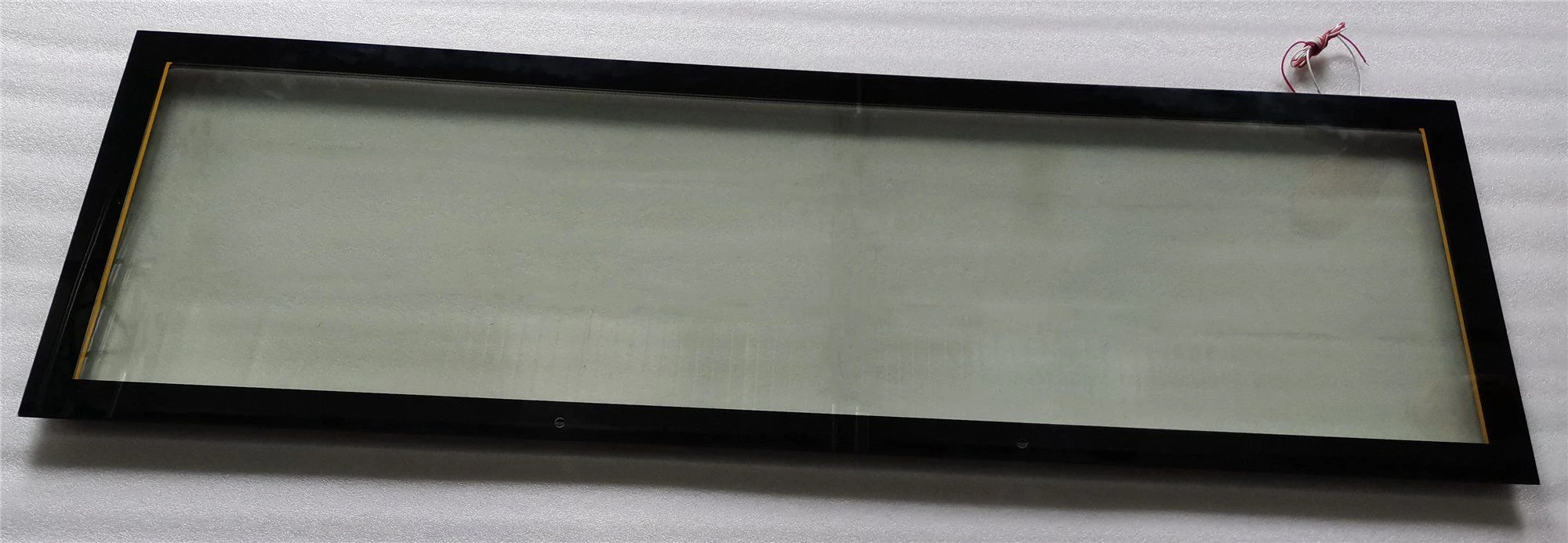

The Insulated Tempered Low E ITO Anti-Condensation Printed Display Case Glass Cooler Show Cabinet Glass Freezer Glass is supplied as an ITO-coated glass. Listed geometry: thickness 3+9A+3+9A+3, 3+6A+3+6A+3, flat shape. Typical applications: Furniture and Building. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Flat or Bent |
|---|---|
| Shape | Flat |
| Usage | Furniture, Building |
| Model NO. | i55 |
| Structure | Hollow |
| Glass Thickness | 3+9A+3+9A+3, 3+6A+3+6A+3 |
| Air Cavity Depth | 9mm |
| Moh's Hardness | 9 |
| Energy Transfer | Low E |
| Deep Processing Depth | Hollow Glass |
| Color | Clear |
| Capability | 1000 Sq.M Per Day |
| AS/NZS 2208 | 1996(AU), BS6206(UK), EN12150(EU) |
| Supplier | Suzhou Yilin Glass Manufacturing Co., Ltd. |
Technical data
| Layers | 2 and more |
|---|---|
| Composition | 3+6A+3,5+6A+5, 6+9A+6, 6+12A+6, 6+16A+6,3.2+6A+3.2+6A+3.2 4+6A+4+6A+6 etc. low E or ITO coated |
| Glass Color | clear,ulra clear. |
| Inspection | AS/NZS 2208:1996(AU), BS6206(UK), EN12150(EU) |
| Equipment | Korean insulating line |
What to specify when you request a quote
- Sheet resistance — state the target sheet resistance and its tolerance.
- Transmittance — give the minimum visible transmission at the resistance you need.
- Substrate and thickness — listed as “3+9A+3+9A+3, 3+6A+3+6A+3”; name the base glass (soda-lime, borosilicate, alkali-free, quartz) and thickness.
- Size and cutting — give the cut size and whether edges are seamed.
- Pattern or electrodes — send a drawing for any etched pattern, bus bar or electrode.
