Product type: Flat Lens. Application: Lighting, Medical, Optical, Photography. Model: TT Window 40.
Overview

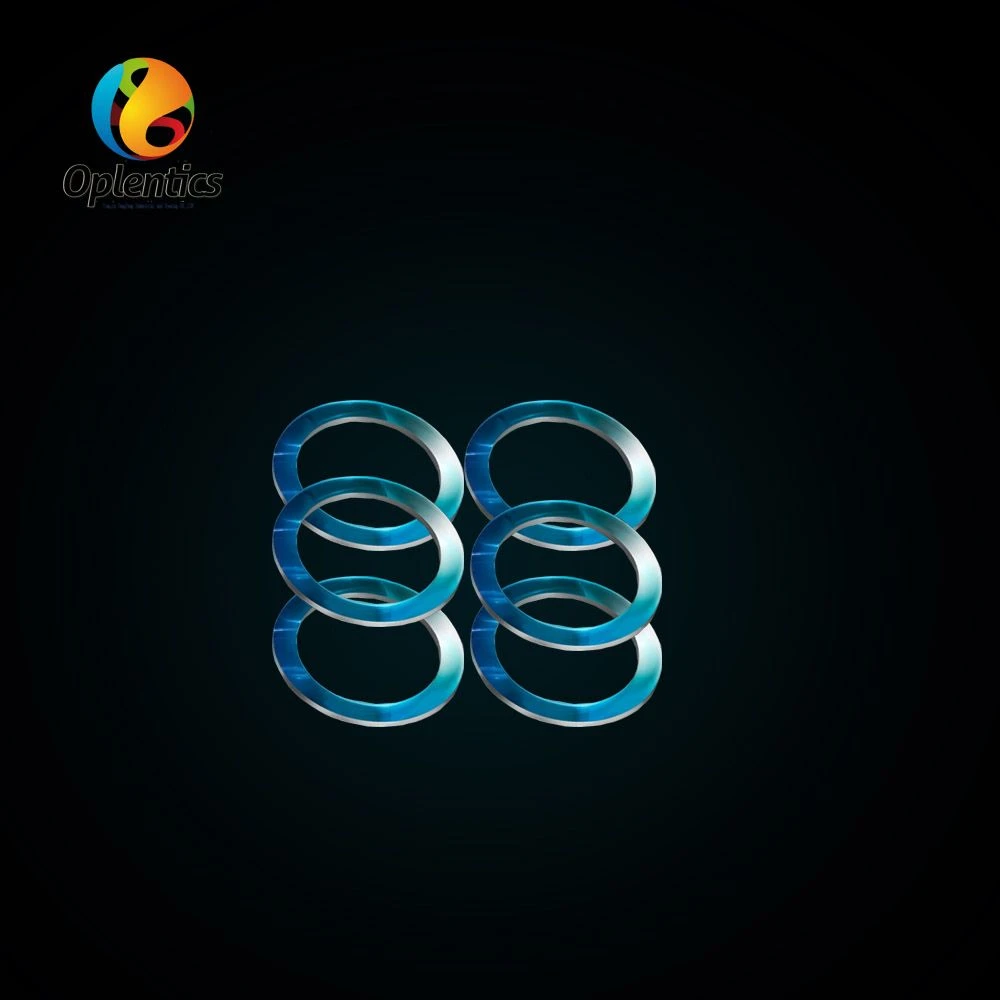

ITO Coating Optical Window with Round Hole for Medical Instrument: an ITO-coated glass made from Optical Glass. Listed geometry: thickness as Required, single-lens shape. Optical / electrical data: transmittance >95%. Coating: HMC; surface quality 60-40, 40-20, 20-10, 10-5. Listed for Lighting, Medical, Optical and Photography applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Flat Lens |
| Shape | Single-lens |
| Thickness | as Required |
| Transmittance | >95% |
| Coating | HMC |
| Surface Quality | 60-40, 40-20, 20-10, 10-5 |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | TT Window 40 |
| Lenses Color | Clear |
| Bevel | Protective as Needed |
| Edges | Fine Ground |
| Polished | Yes |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
Technical data
| Product Name | Customized ITO Coating Optical Window with Round Hole for Medical Instrument |
|---|---|
| Material | Corning 7980/JGS1/N-BK7 or as required |
| Size | From 1mm to 300mm Diameter |
| Coating | AR Coating or as required |
What to specify when you request a quote
- Sheet resistance — state the target sheet resistance and its tolerance.
- Transmittance — listed as “>95%”; give the minimum visible transmission at the resistance you need.
- Substrate and thickness — listed as “Optical Glass”; name the base glass (soda-lime, borosilicate, alkali-free, quartz) and thickness.
- Size and cutting — give the cut size and whether edges are seamed.
- Pattern or electrodes — send a drawing for any etched pattern, bus bar or electrode.
