Product type: Aspherical Lenses. Application: Lighting, Medical, Optical, Photography. Model: TT Lens 43.
Overview

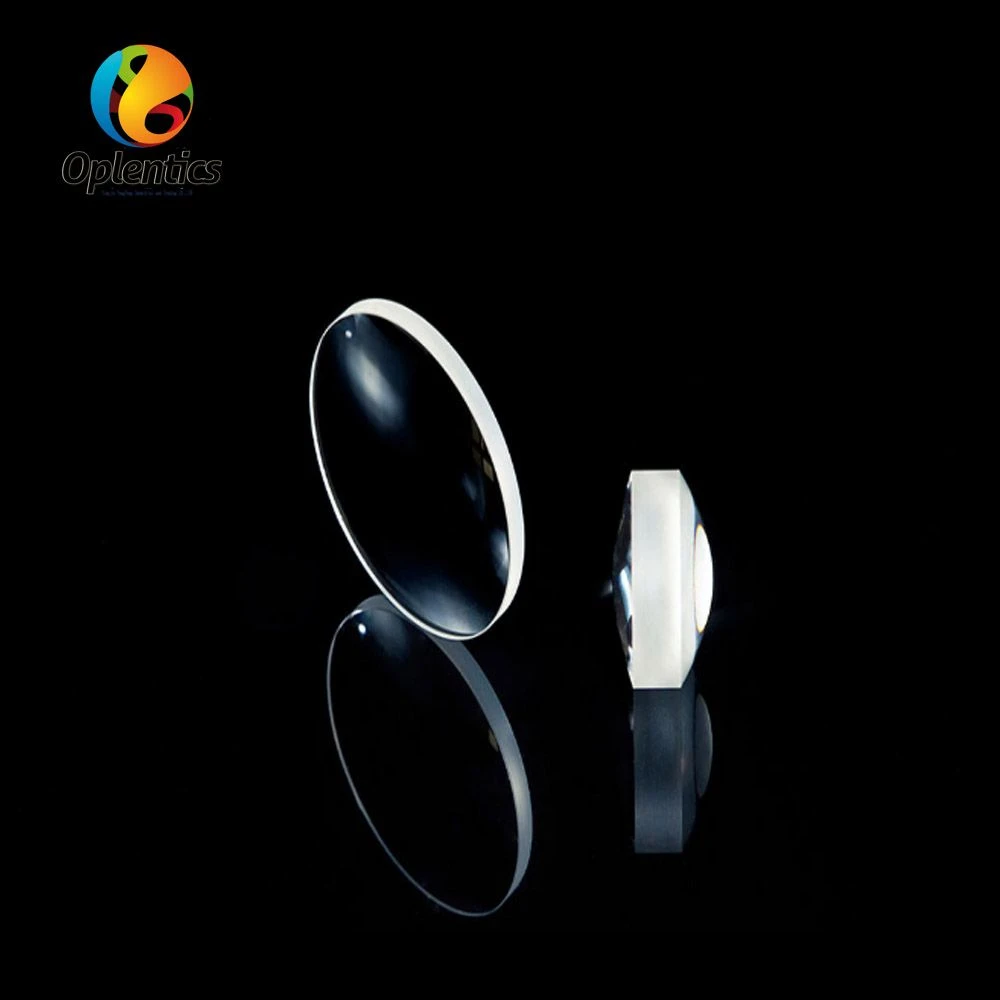

Jgs1/H-K9l Ar Coating Customized Optical Glass Aspherical Lens is an optical lens made from Optical Glass. Listed geometry: diameter 10mm-250mm, thickness >=1mm, single-lens shape. Optical / electrical data: transmittance >95%. Coating: HMC; surface quality 60-40 or Better; flatness Lambda/2. Listed for Lighting, Medical, Optical and Photography applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Aspherical Lenses |
| Shape | Single-lens |
| Diameter | 10mm-250mm |
| Thickness | >=1mm |
| Transmittance | >95% |
| Coating | HMC |
| Surface Quality | 60-40 or Better |
| Flatness | Lambda/2 |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | TT Lens 43 |
| Lenses Color | Clear |
| Thickness Tolerance | +/-0.02mm or Others |
| Wedge | 0.01mm |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
Technical data
| Name | H-K9L/JGS1 AR Coating Customized Optical Glass Aspherical Lens |
|---|---|
| Material | H-K9L/JGS1 or as required |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “10mm-250mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “60-40 or Better”; quote surface figure (λ) and scratch-dig.
- Centring and edges — listed as “0.01mm”; state centration and edge chamfer.
- Coating — listed as “HMC”; list the band and reflectance or transmission target.
