Product type: Meniscus Lens. Application: Lighting, Medical, Optical, Photography. Model: TT Lens 78.
Overview

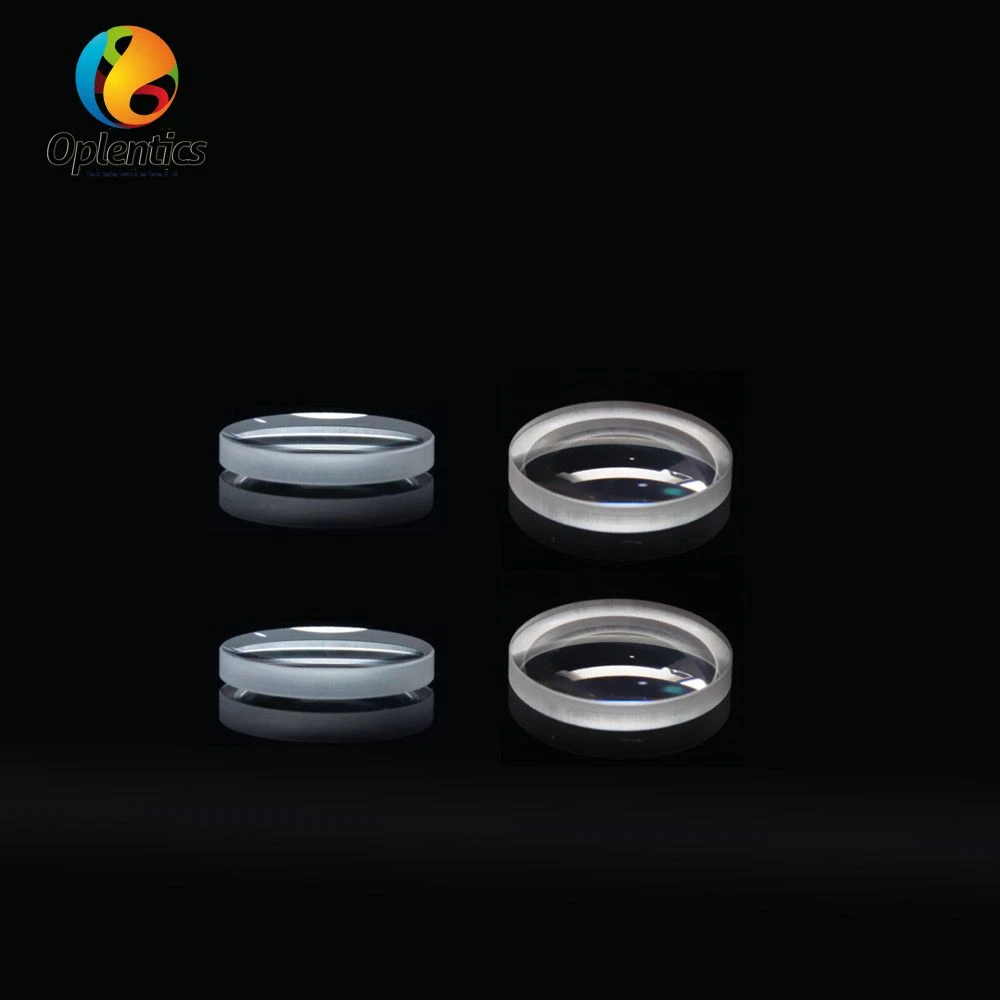

The Jgs1/H-K9l/H-Zf13 Optical Glass Stock Meniscus Lens Focusing Lenses is supplied as an optical lens made from Optical Glass. Listed geometry: thickness as Required, single-lens shape. Optical / electrical data: transmittance >95%. Coating: HMC; surface quality 40-20. Typical applications: Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Meniscus Lens |
| Shape | Single-lens |
| Thickness | as Required |
| Transmittance | >95% |
| Coating | HMC |
| Surface Quality | 40-20 |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | TT Lens 78 |
| Lenses Color | Clear |
| Bevel | Protective Bevel as Needed |
| Polished | Yes |
| NML | Negative Meniscus Lenses |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
Technical data
| Product Name | Stock Negative Meniscus Lenses |
|---|---|
| Shape | NML:Negative Meniscus Lenses |
| Material | H-K9L/N-BK7 |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20”; quote surface figure (λ) and scratch-dig.
- Centring and edges — listed as “Protective Bevel as Needed”; state centration and edge chamfer.
- Coating — listed as “HMC”; list the band and reflectance or transmission target.
