Product type: Half Ball Lenses. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc. Model: OL-0108.
Overview

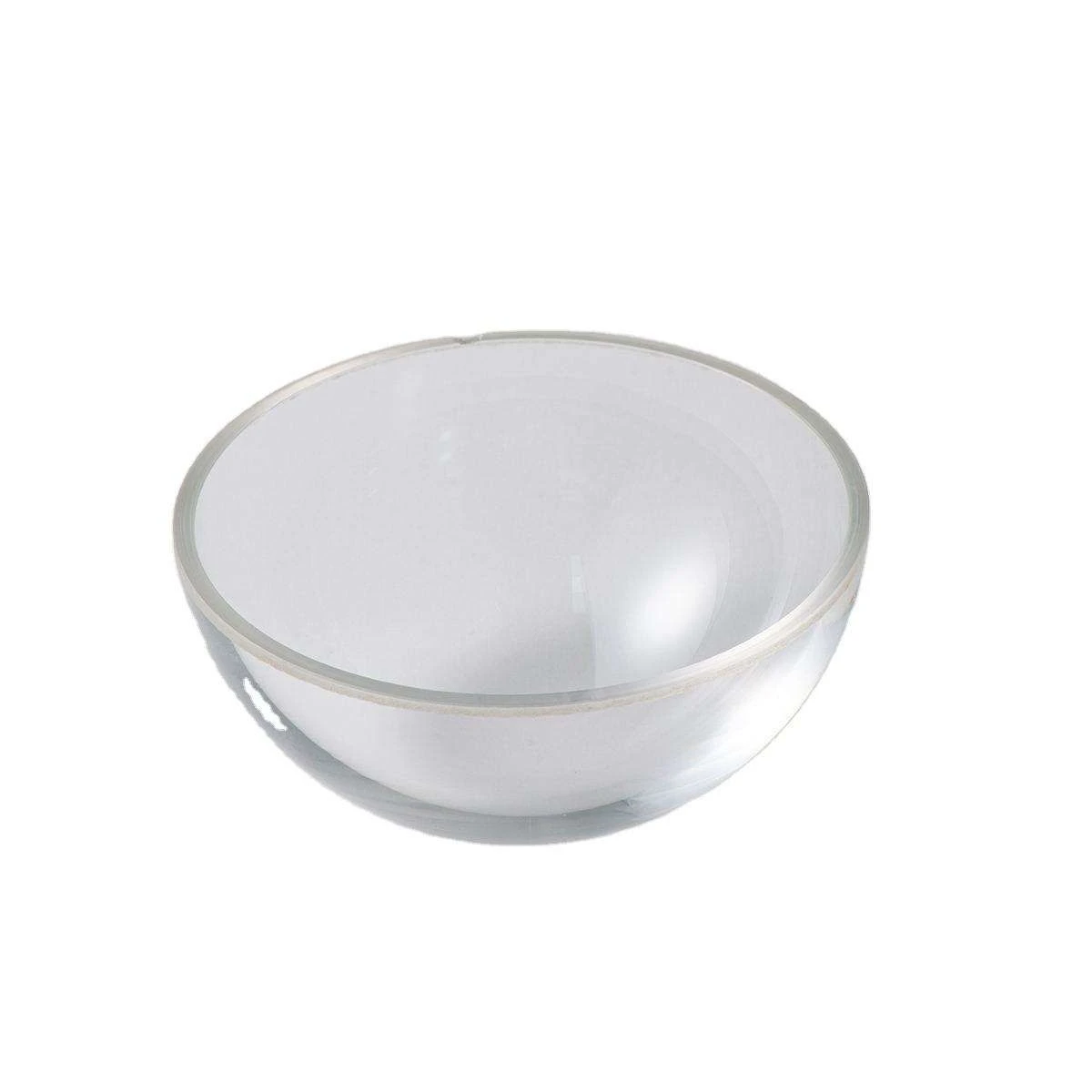

K9 Optical Glass Half Ball Lenses High-Precision Spherical Hemispherical Lens Processing is an optical lens in Optical Glass (Bk7, Quartz, Infrared, Sapphire, Ge, Si, Znse, Caf substrate). Listed geometry: diameter 1.5-300mm, size Custom, ball, hemisphere shape. Optical / electrical data: transmittance >95%. Supplied uncoated. Typical applications: Lighting, Medical, Optical, Photography and Laser. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | Bk7, Quartz, Infrared, Sapphire, Ge, Si, Znse, Caf |
| Type | Half Ball Lenses |
| Shape | Ball, Hemisphere |
| Diameter | 1.5-300mm |
| Size | Custom |
| Transmittance | >95% |
| Coating | Uncoated |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | OL-0108 |
| Lenses Color | Clear |
| Product Name | Optical Lens |
| Supplier | C-Laser (Taicang) Material Technology Co., Ltd. |
Technical data
| Production Name | Half Ball Lens |
|---|---|
| Material | K9 Glass |
| Diameter | Customer Request |
| Application | Optical Equipment |
| Coating | AR coating or customized |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “1.5-300mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Uncoated”; list the band and reflectance or transmission target.
