Product type: Quartz Plate. Application: Chemical, Construction, Metallurgy, Glass, Well Drilling, Decorations, Heater, Printer. Model: HB-QP.
Overview

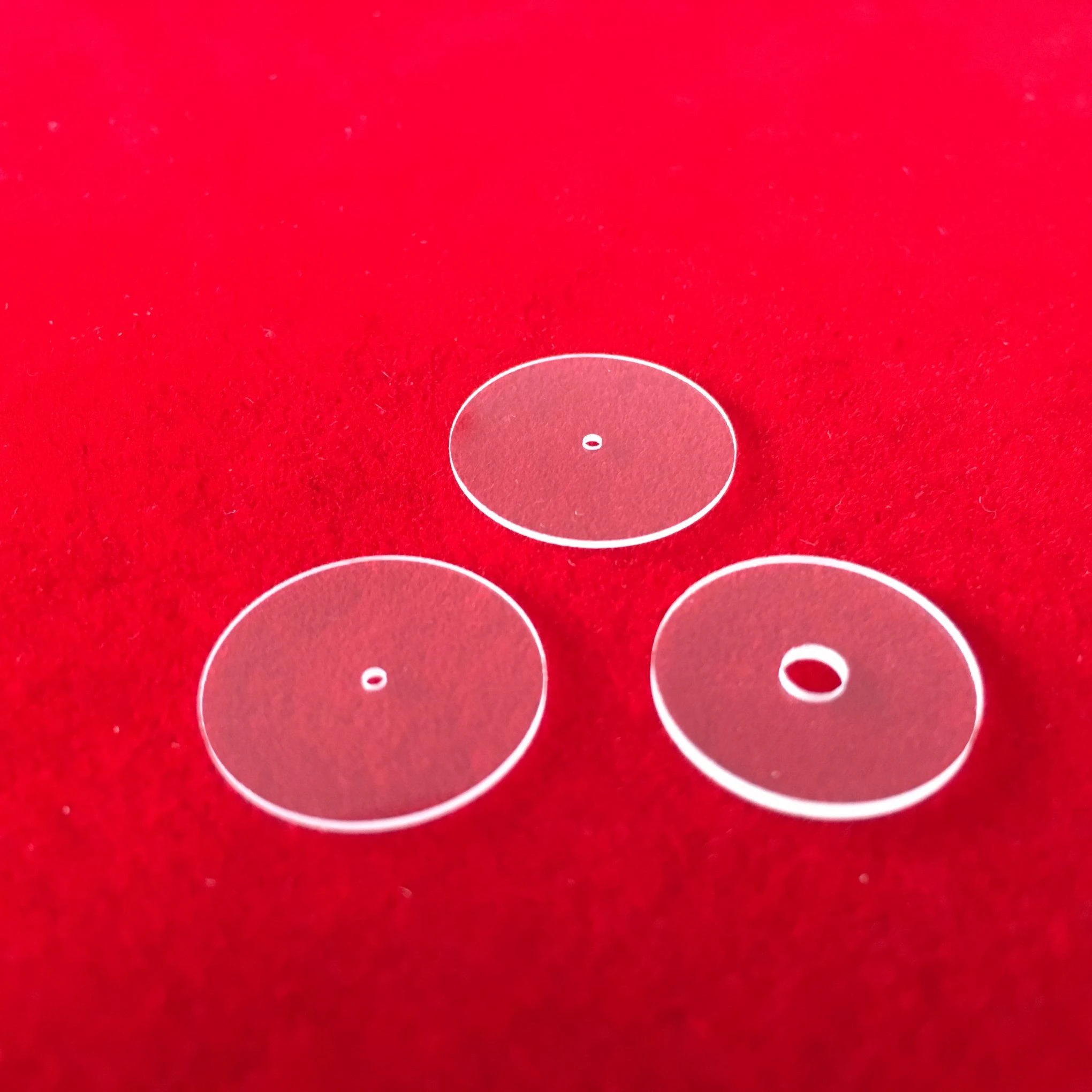

Laser Drilling Jgs1 Round Solar Grade Polishing Quartz Glass Plate: a drilled / perforated glass plate made from Quartz ,Borosilicate Glass. Listed geometry: size 5-1500mm, as your request shape. Optical / electrical data: sheet resistance 1200 degree C. Surface quality Polishing; temperature 1100 Degree. Typical applications: Chemical, Construction, Metallurgy, Glass and Well Drilling. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Quartz ,Borosilicate Glass |
|---|---|
| Type | Quartz Plate |
| Shape | as Your Request |
| Size | 5-1500mm |
| Dimension | Can Be Customized |
| Surface Quality | Polishing |
| Application | Chemical, Construction, Metallurgy, Glass, Well Drilling, Decorations, Heater, Printer |
| Model NO. | HB-QP |
| Color | Transparent |
| Edge | Can Be Flamed |
| Temperature | 1100 Degree |
| Two Sides | Polishing or Grind |
| Surface | No Airline, No Bubbles |
| Sio2 | > 99.9% |
| Density | 2.21 |
| Pakage | Safe Individual Package |
| Keyword | Round Quartz Glass Plate |
| Strain point | 1075°C=1967°F |
| Heat resistant temperature | 1200 degree C |
| The thickness | 0.5-50mm |
| Quartz disc | 10-500mm diameter |
| Main Appilication | Used for window material,mask substrate or heat insulation,optics,electronics,medical treatment,laser industries ect. |
| Material properties of transparent quartz glass | High Durability |
| Further process of clear quartz disk | We can do edge flame polishing, optical polishing, grind, general polishing, two sides polishing, one side polishing and the other side grind. |
| Supplier | Lianyungang Highborn Technology Co., Ltd. |
Technical data
| Al | Fe | Ca | Mg | Ti | Cu | Mn | K | Na | Li | Co | Ni | B |
| 21.32 | 0.94 | 1.88 | 0.29 | 0.54 | 0.05 | 0.05 | 0.40 | 2.06 | 1.66 | 0.07 | 0.07 | 0.16 |
| Purity | Total Impurities, including Al, Fe, Ca, Mg, Ti, Cu, Ni,Co, Mn, k, Na, Li, B<35ppm<> |
|---|---|
| Thermal Data | Annealing Point Strain Point Softening Point Melting Point Expansion Index |
| 1120°C 1210°C 1570°C 1730°C 5.5×10-7/°C | |
| Operation Temperature | Short-term Long-term |
| 1300°C 1100°C | |
| Mechanical Data | Rigidity Modulus 3.1×104Mpa Density 2.2/cm3 MohsHardness 6 Young`s Modulus 7.2×104Mpa Compression Strength 1.1×103Mpa Poisson Ratio 0.17 Elongation Strength 48Mpa |
| produce per customers' request such as design & package & printing logo | Professional package to ensure the transportation with no goods damaged. | The Trade Assurance Service is ready for you and our guarantee account is USD40000. |
| Sampling Service. | OEM service | After-sales service. Quick response, 100% feedback. |
| 15 years golden supplier. | 0% compain feedback | 100% good reputation. |
What to specify when you request a quote
- Material — listed as “Quartz ,Borosilicate Glass”; name the glass or quartz grade.
- Outline and thickness — listed as “5-1500mm”; give outline, thickness and tolerances.
- Holes, slots and features — listed as “as Your Request”; dimension every hole and its position tolerance on the drawing.
- Edges — listed as “Can Be Flamed”; state edge finish and chamfer.
- Surface — listed as “Polishing”; state polish and flatness where they matter.
