Product type: Laser Lens. Application: Lighting, Medical, Optical, Photography, Laser System. Model: RAY-XS054#.
Overview

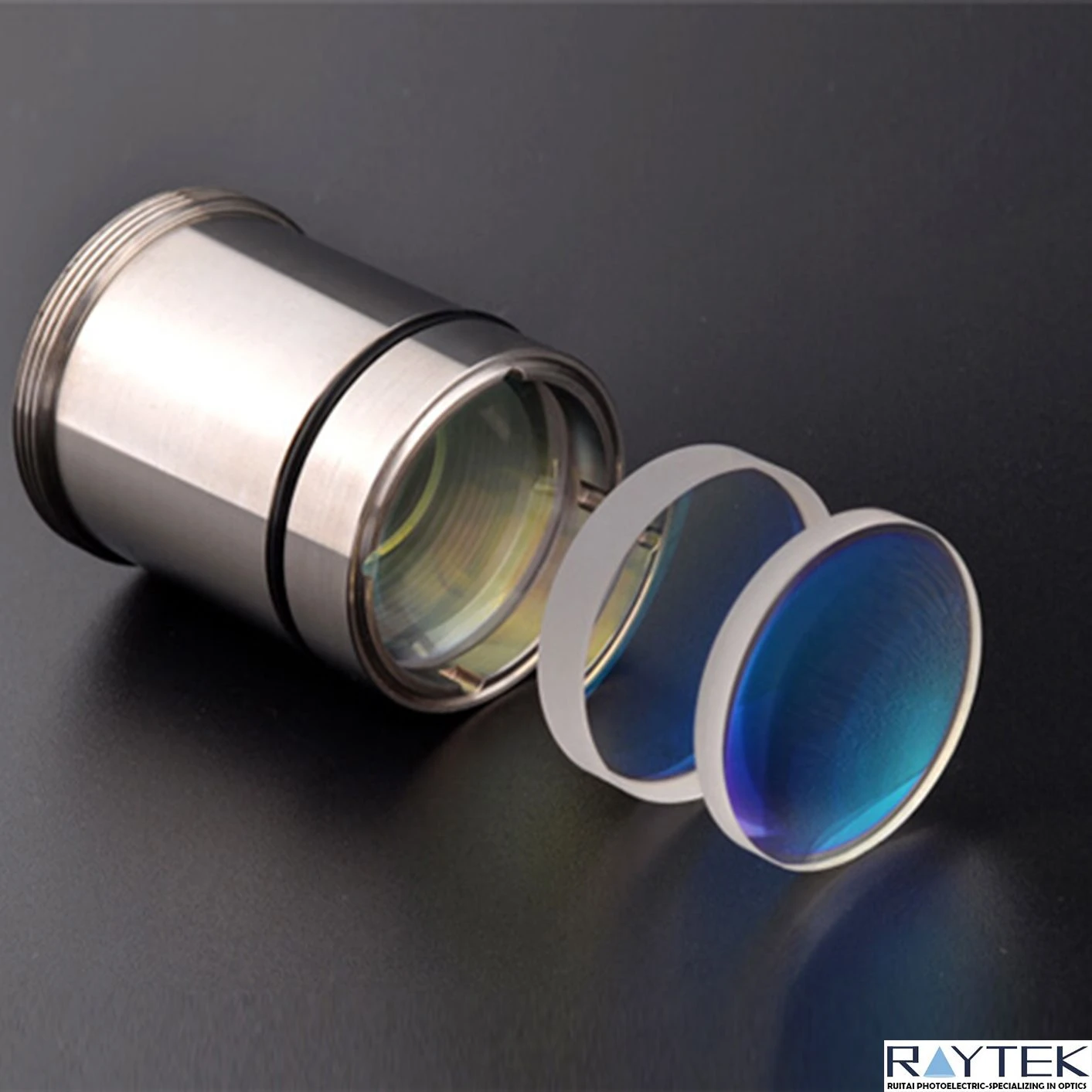

Laser Focusing Lens/Optical Fiber Focusing Lens/Fused Quartz Focusing Lens: an optical lens made from Optical Glass. Listed geometry: single-lens shape. Optical / electrical data: transmittance >95%. Coating: Coating or Uncoating. Listed for laser cutting, laser welding, laser cladding and laser quenching. applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Laser Lens |
| Shape | Single-lens |
| Transmittance | >95% |
| Coating | Coating or Uncoating |
| Application | laser cutting, laser welding, laser cladding, laser quenching. |
| Usage | Lighting, Medical, Optical, Photography, Laser System |
| Model NO. | RAY-XS054# |
| Lenses Color | Clear |
| Base material | fused quartz |
| Main functions | 1. Improve the ability of edge beam incident to detector; |
| ain Cooperation Materials Manufacturers | CORNING, OHARA, SCHOTT, LEONI, AGC, HELLMA, NIKON, VITRON, C-LASER, |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Coating or Uncoating”; list the band and reflectance or transmission target.
