Product type: Laser Protective Lens. Application: Optical, Protect The Focusing Lens. Model: D20.
Overview

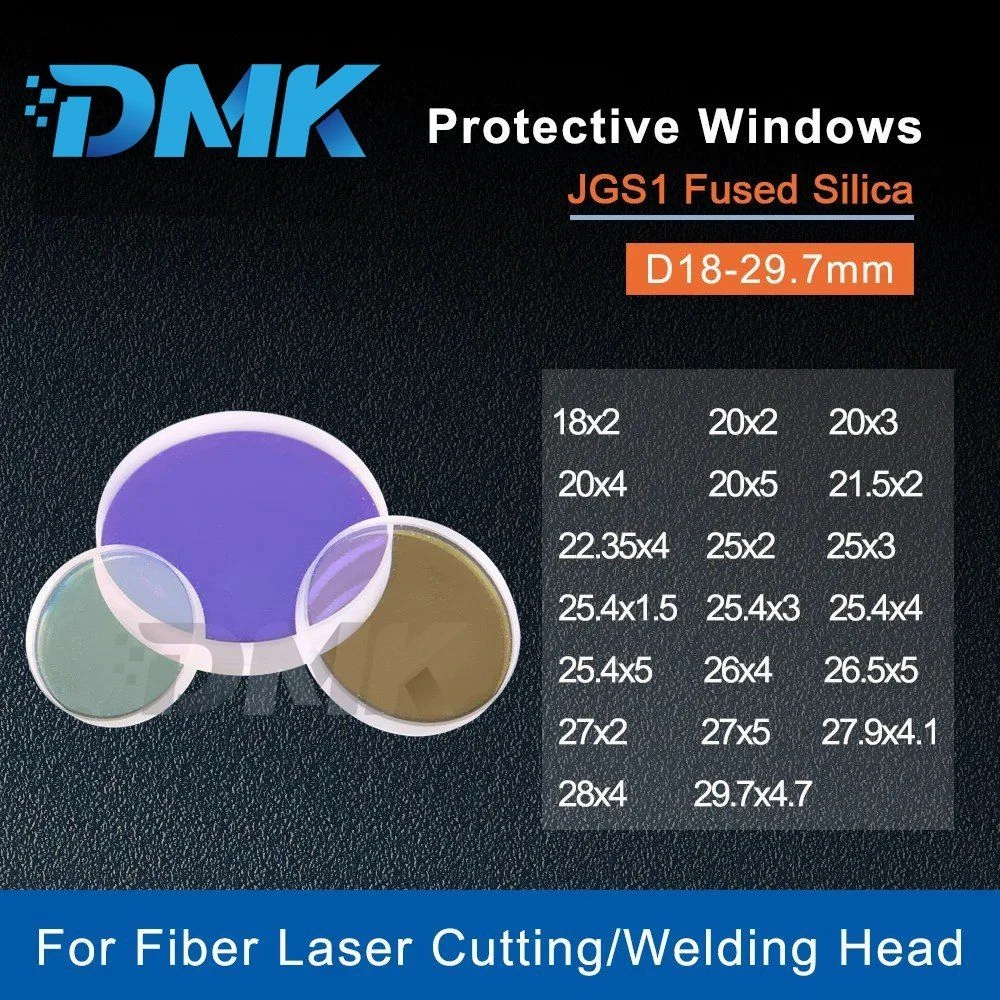

Laser Optical Quartz Lens High Power: an optical lens made from Fused Silica. Listed for Optical and Protect The Focusing Lens applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Fused Silica |
|---|---|
| Type | Laser Protective Lens |
| Usage | Optical, Protect The Focusing Lens |
| Model NO. | D20 |
| Standard Component | Standard Component |
| Weight | 0.5kg |
| Head Model | Wsx/Qilin/Hanwei |
| Supplier | Demark (Wuhan) Technology Co., Ltd |
Technical data
| Material | High temperature resistant quartz crystal |
|---|---|
| Coating | Double-sided AR coating |
| equipment | German optical equipment |
| Process | Slicing, spheronization, polishing, polishing, vacuum high-temperature coating, sorting, ultrasonic cleaning, manual inspection, packaging, etc. |
| Diameter | range 20-140mm |
|---|---|
| Thickness | range 1-9MM |
| Diameter tolerance | ±0.01mm |
| Thickness tolerance | ±0.01mm |
| Wavelength | 1010-1100mm |
| Transmittance | 99.998% |
| Clear aperture | 290% |
| Parallelism | 0.1mm |
What to specify when you request a quote
- Material — listed as “Fused Silica”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
