Product type: Solar Glass. Application: Door, Building, Window. Model: T-62. Function: Optical Function, Electromagnetic Function, Thermal Function, Mechanics and Mechanical Function, Biological and Chemical Function.
Overview

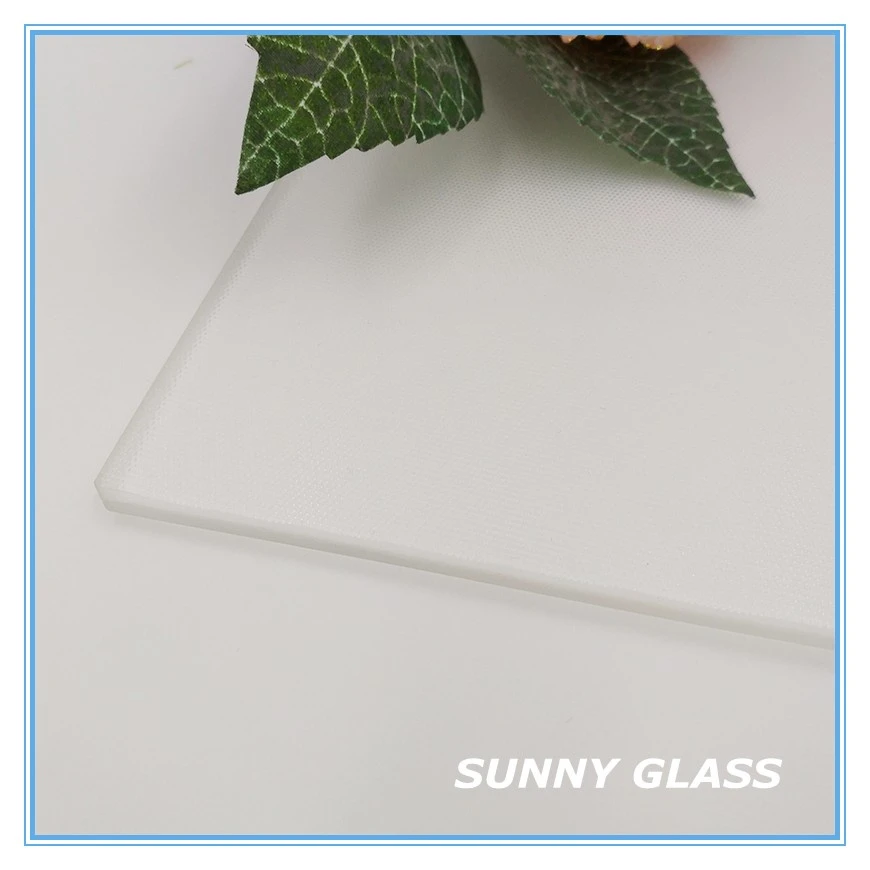

Low-Iron Tempered Coating Solar Glass is a building / safety glass. Listed geometry: thickness 3.2mm, 4mm, plate shape. It is used in Daily Products. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Solar Glass |
|---|---|
| Shape | Plate |
| Thickness | 3.2mm, 4mm |
| Application | Daily Products |
| Usage | Door, Building, Window |
| Model NO. | T-62 |
| Structure | Solid |
| Moh's Hardness | 9 |
| Function | Optical Function, Electromagnetic Function, Thermal Function, Mechanics and Mechanical Function, Biological and Chemical Function |
| Transparency | Transparent |
| Processing Method | Ultrapurification |
| Preparation Process | Fusion Method |
| Color | Ultra Clear |
| Means of Transportation | Sea, Train, Air |
| Name | Solar Glass |
| Supplier | Qingdao Sunny Glass Co., Ltd. |
Technical data
| Standard Thickness | 3.2mm and 4mm |
|---|---|
| Thickness Tolerance | 3.2+-0.20mm; 4.0mm+-0.30mm; |
| Max size | 2250mm*3300mm |
| Solar Transmittance (3.2mm) | ≥ 91.6% |
| Iron Content | ≤ 120ppm Fe2O3 |
| Poisson's Ration | 0.2 |
| Density | 2.5g/CC |
| Young's Modulus | 73. Gpa |
| Tensile Strength | 42MPa |
| Hemispherical Emissivity | 0.84 |
| Epansion Coefficient | 9.03*10-6/º C |
| Softening Point | 720º C |
| Annealing Point | 550º C |
What to specify when you request a quote
- Glass type and thickness — listed as “3.2mm, 4mm”; name the glass and thickness.
- Temperature and pressure — give working temperature, thermal shock and any pressure rating.
- Strengthening and safety — state tempering, lamination or the safety standard.
- Outline and edges — listed as “Plate”; send a drawing with outline, holes and edge finish.
