Product type: Aspheric. Application: Laser. Model: STF59.
Overview

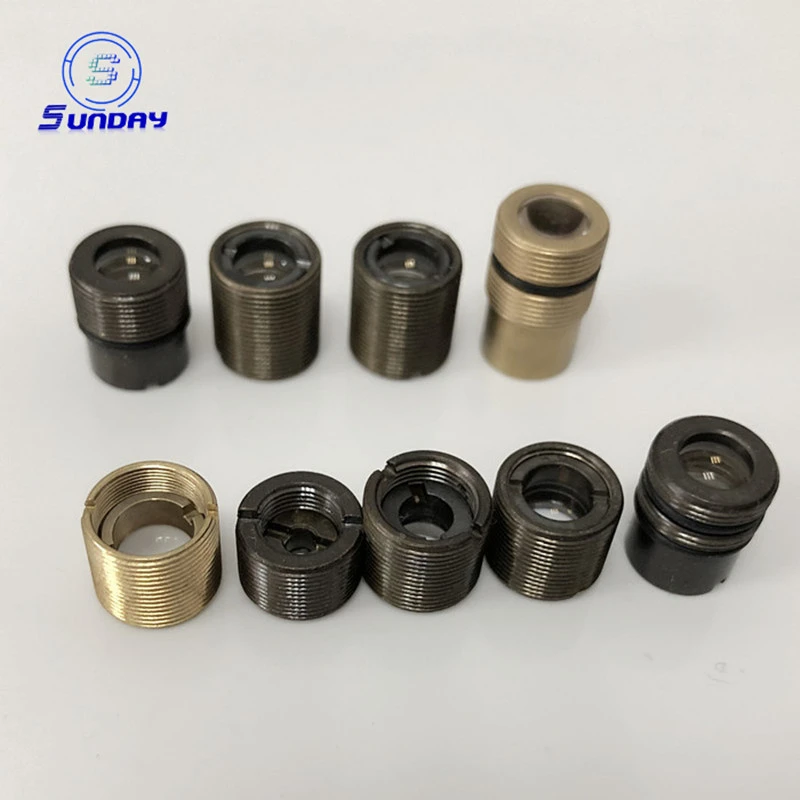

Manufacture Optical Laser Glass Collimator Lens with Metal Shell M8 M9 M10 is an optical lens made from Glass. Listed geometry: size M6*0.5,M7*0.5,M9X0.5,M8X0.5,M12.7X0.5, single-lens shape. Optical / electrical data: wavelength 405nm-450nm,630-670nm, transmittance >95%. Coating: HC. Listed for Laser applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Aspheric |
| Shape | Single-lens |
| Size | M6*0.5,M7*0.5,M9X0.5,M8X0.5,M12.7X0.5 |
| Wavelength | 405nm-450nm,630-670nm |
| Transmittance | >95% |
| Coating | HC |
| Usage | Laser |
| Model NO. | STF59 |
| Lenses Color | Clear |
| Efl | 2mm 4.05mm 6mm 6.5mm 7mm 8mmm 15mm |
| Shell Material | Aluminum or Copper. |
| Lenses | aspheric lens,two lenses,three lenses (Glass),single apron, two aprons. |
| Focal length | 2mm,4.05mm,6mm,7mm,8mm,10mm,15mm,20mm |
| Length | 7mm,8mm,10mm,12mm |
| Lens Show | Our Factory |
| Supplier | Changchun Sunday Optics Co., Ltd. |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — listed as “M6*0.5,M7*0.5,M9X0.5,M8X0.5,M12.7X0.5”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “HC”; list the band and reflectance or transmission target.
