Application: Microscope Slide. Model: TYI-7101.
Overview

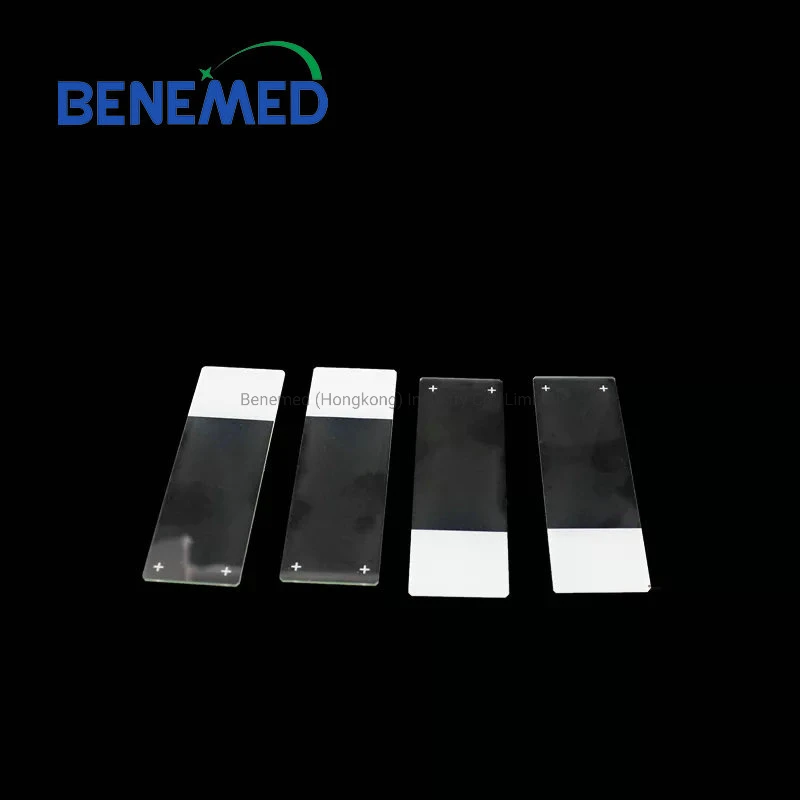

The Microscope Glass Slides Disposable Medical Consumables is supplied as a microscope slide / cover slip made from Clear Glass. Listed geometry: thickness 1-1.2mm. Listed for Microscope Slide applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Clear Glass |
|---|---|
| Thickness | 1-1.2mm |
| Usage | Microscope Slide |
| Polishing | Polishing |
| Model NO. | TYI-7101 |
| Quantity | 50PCS.65PCS.72PCS/Box, 50box/CTN |
| Cleaning | Free Cleaning |
| Style | Frosted on One Slide |
| Gw | 13kg |
| Supplier | Benemed (Hongkong) Industry Co., Limited |
Technical data
| Glass microscope slide | ||||||
| Code | Size(mm) | Style | Material | Ctn size(cm) | Packing | GW(kg) |
| TYI-7101 | 25.4*76.2 | Polished edge | Glass | 37*18*16 | 50pcs.65pcs.72pcs/box,50box/ctn | 13 |
| TYI-7102 | Cut edge | |||||
| TYI-7105 | Frosted on one slide | |||||
| TYI-7107 | Frosted on double side |
What to specify when you request a quote
- Material — listed as “Clear Glass”; name the glass (soda-lime, borosilicate, quartz) because it fixes UV transmission and chemical resistance.
- Dimensions — listed as “1-1.2mm”; give dimensions and tolerances.
- Surface and edges — listed as “Polishing”; state edge finish and any frosted or coated areas.
- Cleanliness and packing — listed as “Free Cleaning”; state cleanliness level and packing for lab use.
