Product type: Convex Lens. Application: Thermal Image. Model: S8GY.
Overview

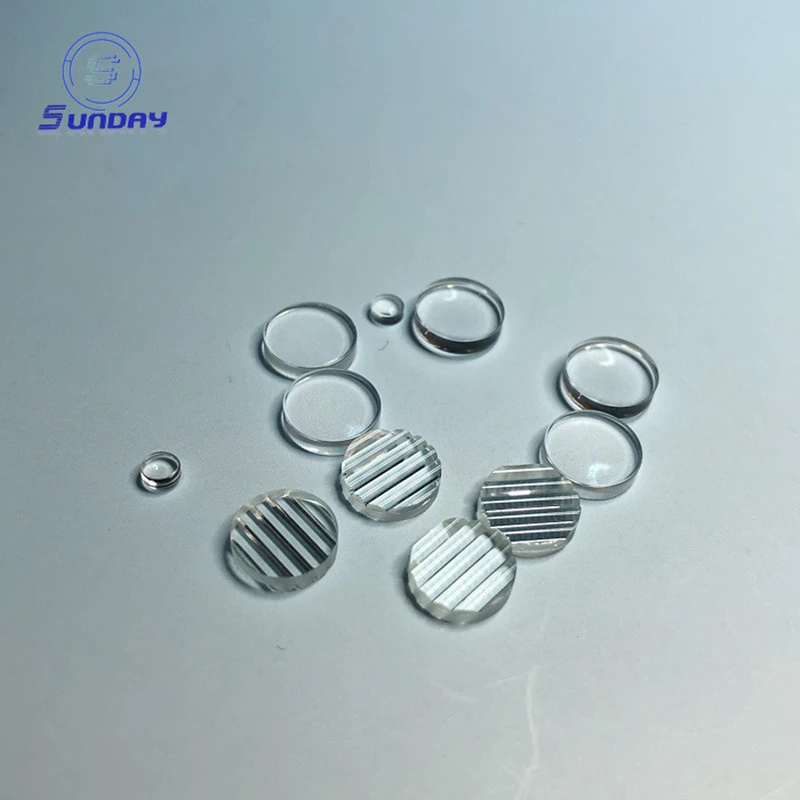

The Molded Small Aspheric Glass Lens for Focus Collimator Coating is supplied as an optical lens made from Optical Glass. Listed geometry: single-lens shape. Optical / electrical data: transmittance >95%. Coating: HC; surface quality 60-40; flatness 1/4 Lambda. Listed for Thermal Image applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Convex Lens |
| Shape | Single-lens |
| Transmittance | >95% |
| Coating | HC |
| Surface Quality | 60-40 |
| Flatness | 1/4 Lambda |
| Usage | Thermal Image |
| Model NO. | S8GY |
| Tolerance | +/-0.05mm |
| Efl | 3.8mm |
| Supplier | Changchun Sunday Optics Co., Ltd. |
Technical data
| art NO | Dia(mm) | EFL(mm) | CT(mm) | CA(mm) | NA | Material | WL(nm) |
| SDXR3A6Y | 3 | 6 | 1.5 | 2.1/2.4 | 0.2 | D-ZK3 | 400-700nm |
| SDXR3A2C | 3 | 2 | 1.87 | 2.15/1.55 | 0.54 | D-ZK3 | 400~1050nm/600-1050nm |
| SJXR30383 | 3 | 3.8 | 1.5 | 2.3 | 0.3 | D-ZK3 | 650nm |
| SDX4A433C | 4 | 4.33 | 2 | 4.2/3.47 | 0.48 | D-ZLaF52La | 635nm |
| SDXR4A71 | 4 | 7.1 | 2.2 | 3.65/3.15 | 0.26 | D-ZK3 | 400-700nm |
| SDX47A8C | 4.7 | 8 | 2.9 | 4.0/3.29 | 0.25 | D-ZK3 | 420-680nm |
| SJLT476226 | 4.7 | 6.2 | 3.484 | 3.7/2.55 | 0.3 | D-ZK3 | 420-680nm |
| SD598A12A | 5.98 | 12 | 1.95 | 5.3/4.9 | 0.22 | D-ZK3 | 400-700nm |
| SDXR6A10C | 6 | 10 | 2 | 5.0/4.58 | 0.25 | D-ZK3 | 400-700nm,600-850nm |
| SD6AR991C | 6 | 9.91 | 2 | 5.0/4.57 | 0.25 | D-ZK3 | 420-660nm |
| SD6AR12C | 6 | 12 | 2.5 | 5.5/4.93 | 0.23 | D-ZK3 | 400-700nm |
| SDXR633405-A | 6.33 | 4.02 | 3.3 | 5.1 | 0.6 | D-ZK3 | 400-700nm,700-1100nm |
| SDXR633405-B | 6.33 | 4.02 | 3.1 | 3.2/2.09 | 0.4 | D-ZK3 | 400-700nm |
| SDXR633A8 | 6.33 | 8 | 1.91 | 5.3/4.87 | 0.33 | D-ZK3 | 400-700nm |
| SDXR85A15 | 8.5 | 15 | 2.5 | 8.0/7.48 | 0.27 | D-ZK3 | 400-700nm |
| SD10A19C | 10 | 19 | 3.14 | 8.16/8.8 | 0.23 | D-ZK3 | 915nm |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “60-40”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “HC”; list the band and reflectance or transmission target.
