Product type: Prism. Application: Beam Dispersion, Beam Split. Model: TT Prism17.
Overview

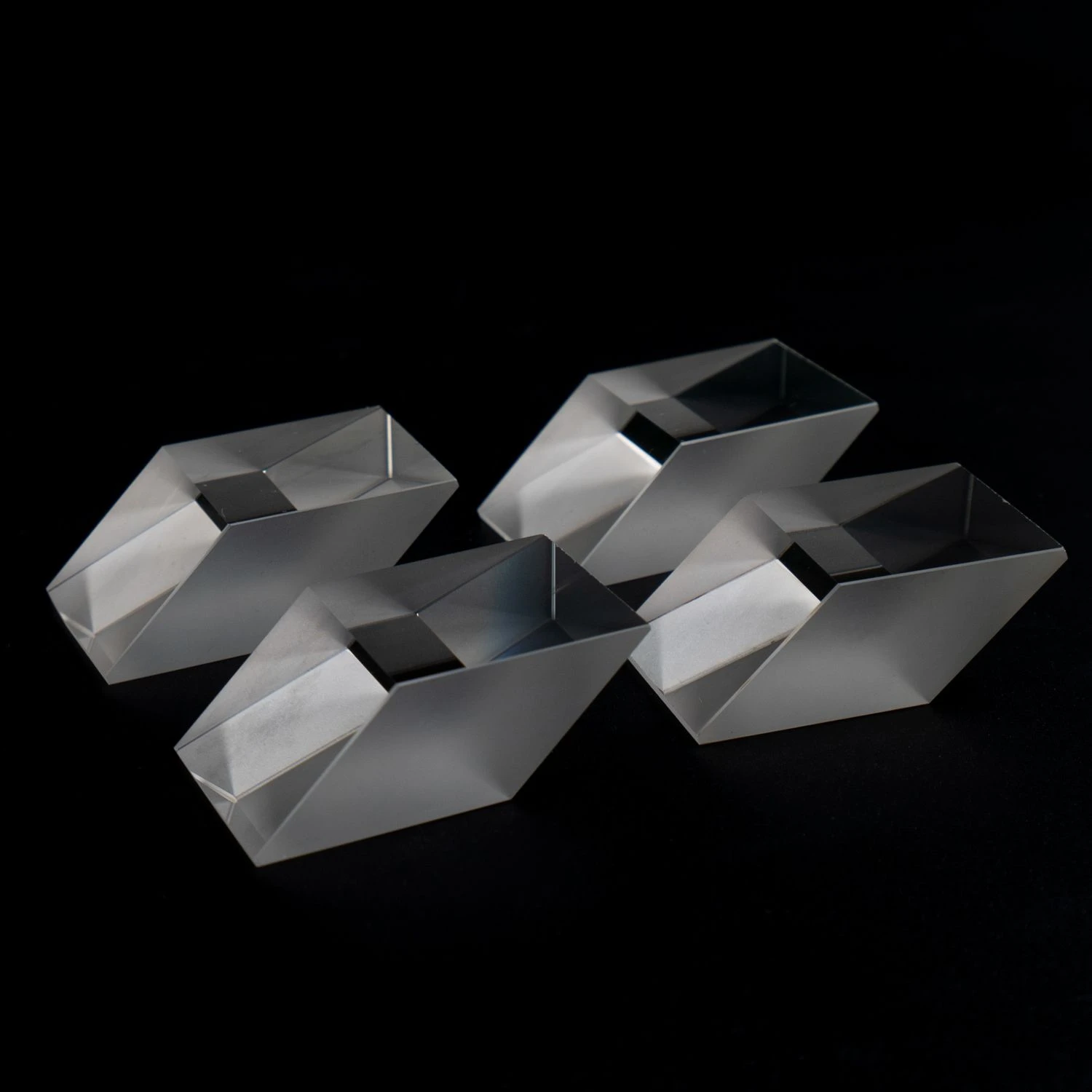

N-Sf11 Mgf2 Borofloat Glass Crystal Equilateral Rhomboid Prism is an optical prism made from Glass. Listed geometry: thickness as Required, rhomboid shape. Surface quality 40-20 or Better; flatness Lambda/8. Typical applications: Medical Instrument. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Prism |
| Shape | Rhomboid |
| Thickness | as Required |
| Surface Quality | 40-20 or Better |
| Application | Medical Instrument |
| Usage | Beam Dispersion, Beam Split |
| Model NO. | TT Prism17 |
| Angle Tolerance | +/-5arcsec |
| Ray Deviation | 0 Degree |
| Surface Flatness | Lambda/8 |
| Image Orientation | Beam Deviation |
| Dimensional Tolerance | +/10.1mm |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
Technical data
| Product Name | N-SF11 MgF2 Borofloat Glass Crystal Equilateral Rhomboid Prism |
|---|---|
| Input and Output Beams Parallel | ±30 Arcseconds |
| Substrate | N-SF11 |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — listed as “+/-5arcsec”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20 or Better”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
