Product type: Achromatic Lenses. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging,Detection, etc. Model: RAY-XS017#.
Overview

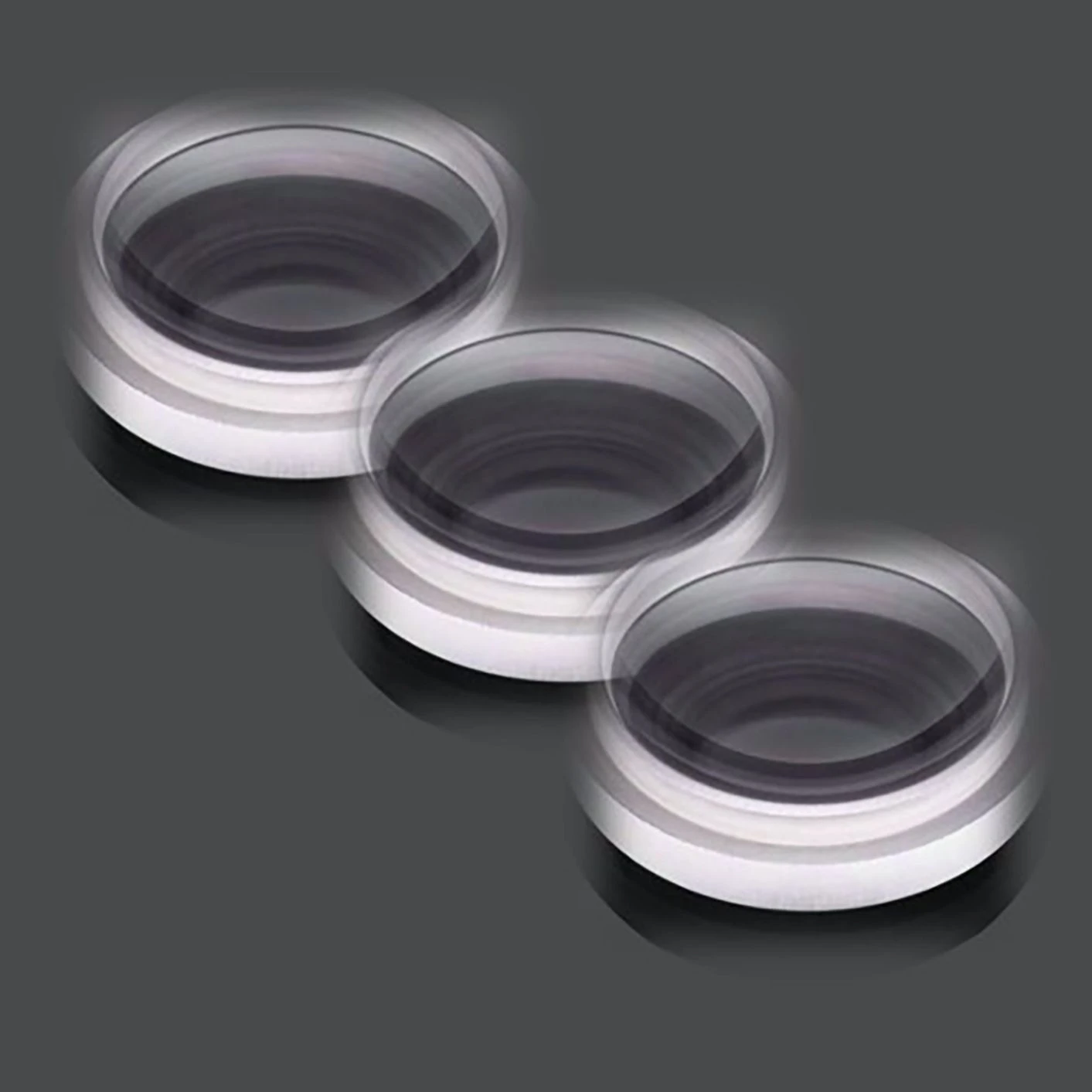

The Near-UV (NUV) Achromatic Lens/Nuv Achromatic Lens/Near-UV Lens/Optical Lens is supplied as an optical lens made from Optical Glass. Listed geometry: single-lens shape. Optical / electrical data: wavelength 405nm or custom, transmittance >95%. Coating: Near-UV; surface quality 40-20 or custom. Listed for Lighting, Medical, Optical, Photography and Laser applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Achromatic Lenses |
| Shape | Single-lens |
| Transmittance | >95% |
| Coating | Near-UV |
| Surface Quality | 40-20 or custom |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging,Detection, etc |
| Model NO. | RAY-XS017# |
| Lenses Color | Clear |
| Products Name | Near-UV (NUV) Achromatic Lenses |
| Alias | NUV Achromatic Lenses, Near-UV achromatic lens, NUV Lens, Near-UV lens |
| Main Tech Specification | Universal Optical Tech Data |
| Optical Lens Type | Achromatic Lens |
| Focal Length Tolerance (%) | ±2 or custom |
| Focal Length Specification Wavelength (nm) | 405nm or custom |
| Centering (arcmin) | <1 |
| Power (P-V) @ 632.8nm | 1.5λ or custom |
| Bevel | Protective bevel as needed |
| Irregularity (P-V) @ 632.8nm | 4λ or custom |
| Wavelength Range (nm) | 345 – 700 |
| Main Cooperation Materials Manufacturers | CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Universal Optical Tech Data | |
|---|---|
| Optical Lens Type: | Achromatic Lens |
| Focal Length Tolerance (%): | ±2 or custom |
| Focal Length Specification Wavelength (nm): | 405nm or custom |
| Surface Quality: | 40-20 or custom |
| Centering (arcmin): | <1 |
| Coating: | UV-VIS (345-700nm) or custom |
| Bevel: | Protective bevel as needed |
| Wavelength Range (nm): | 345 – 700 |
| Size/Substrate/Coating Tech Data | |
| Dia. | 6.25-50mm or custom |
| EFL | 12.5-200mm or custom |
| BFL | 10.22-192.01 or custom |
| Substrate | N-FK5 / F2HT, etc. |
| Coating | UV-VIS(345-700nm) coating or custom |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “±2 or custom”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20 or custom”; quote surface figure (λ) and scratch-dig.
- Centring and edges — listed as “Protective bevel as needed”; state centration and edge chamfer.
- Coating — listed as “Near-UV”; list the band and reflectance or transmission target.
