Application: Digitizer.
Overview

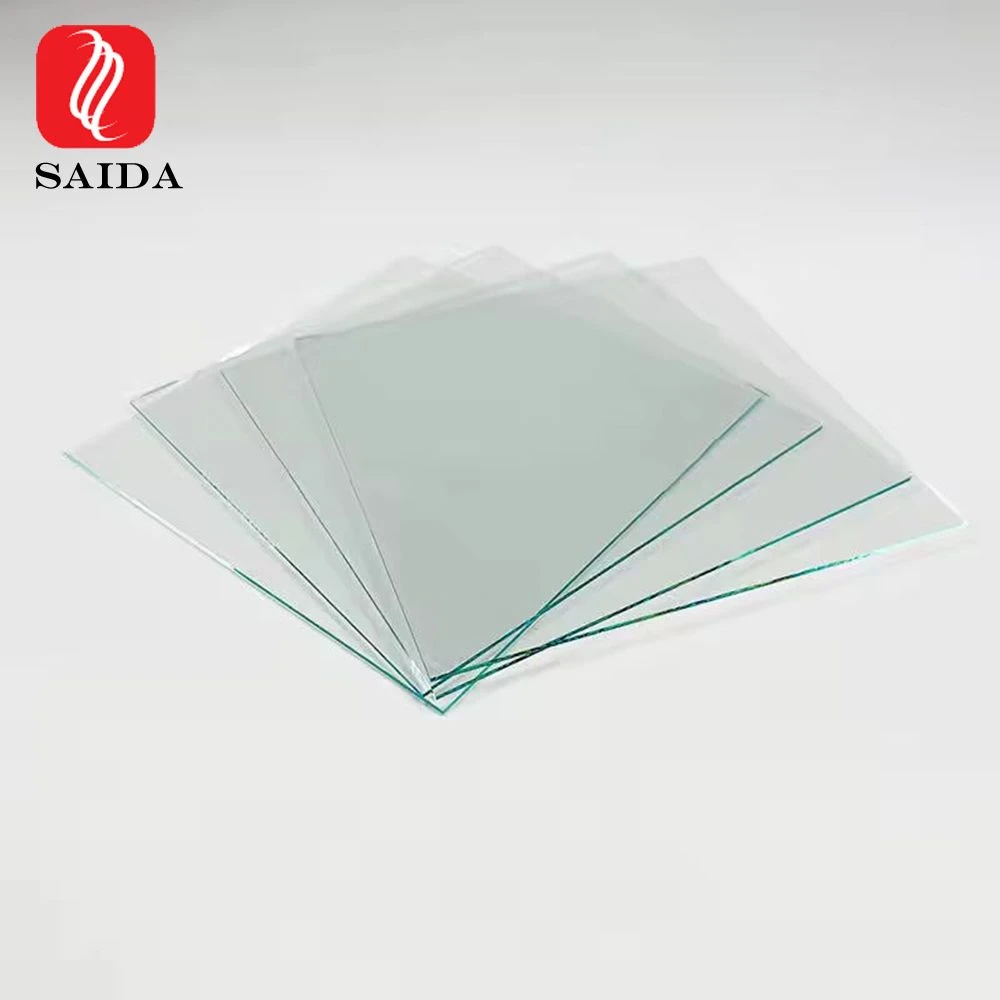

The New Products 0.4mm-4mm ITO Conductive Glass for Shielding Glass Panel with Ar Coating and Silk Screen Printing is supplied as an ITO-coated glass. Listed geometry: curve shape. Flatness Conforming Article. Typical applications: Electronics & Instruments. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Curve |
|---|---|
| Flatness | Conforming Article |
| Application | Electronics & Instruments |
| Usage | Digitizer |
| Appearance | Bent Tempered |
| Standard | GB/T9963 |
| Steel Degree | Tempered Glass |
| Thickness of Flat Tempered Glass | 0.5mm |
| Fragment State | I |
| Technics | Chemical Tempered |
| Avaialbe Size | 0.33mm, 0.55mm, 0.7mm, 1.1mm, 1.5mm, 2.0mm, |
| Avaialble Coating | Ar/Af/AG/ITO Coating |
| Printing Technology | Silk Printing |
| Quality Standard | En60598, En12150, etc. |
| Color | Customized |
| Mqo | Sample Order Accepted |
| Product picture | What is Conductive Glass? |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
What to specify when you request a quote
- Sheet resistance — state the target sheet resistance and its tolerance.
- Transmittance — give the minimum visible transmission at the resistance you need.
- Substrate and thickness — listed as “0.5mm”; name the base glass (soda-lime, borosilicate, alkali-free, quartz) and thickness.
- Size and cutting — listed as “0.33mm, 0.55mm, 0.7mm, 1.1mm, 1.5mm, 2.0mm,”; give the cut size and whether edges are seamed.
- Pattern or electrodes — send a drawing for any etched pattern, bus bar or electrode.
