Overview

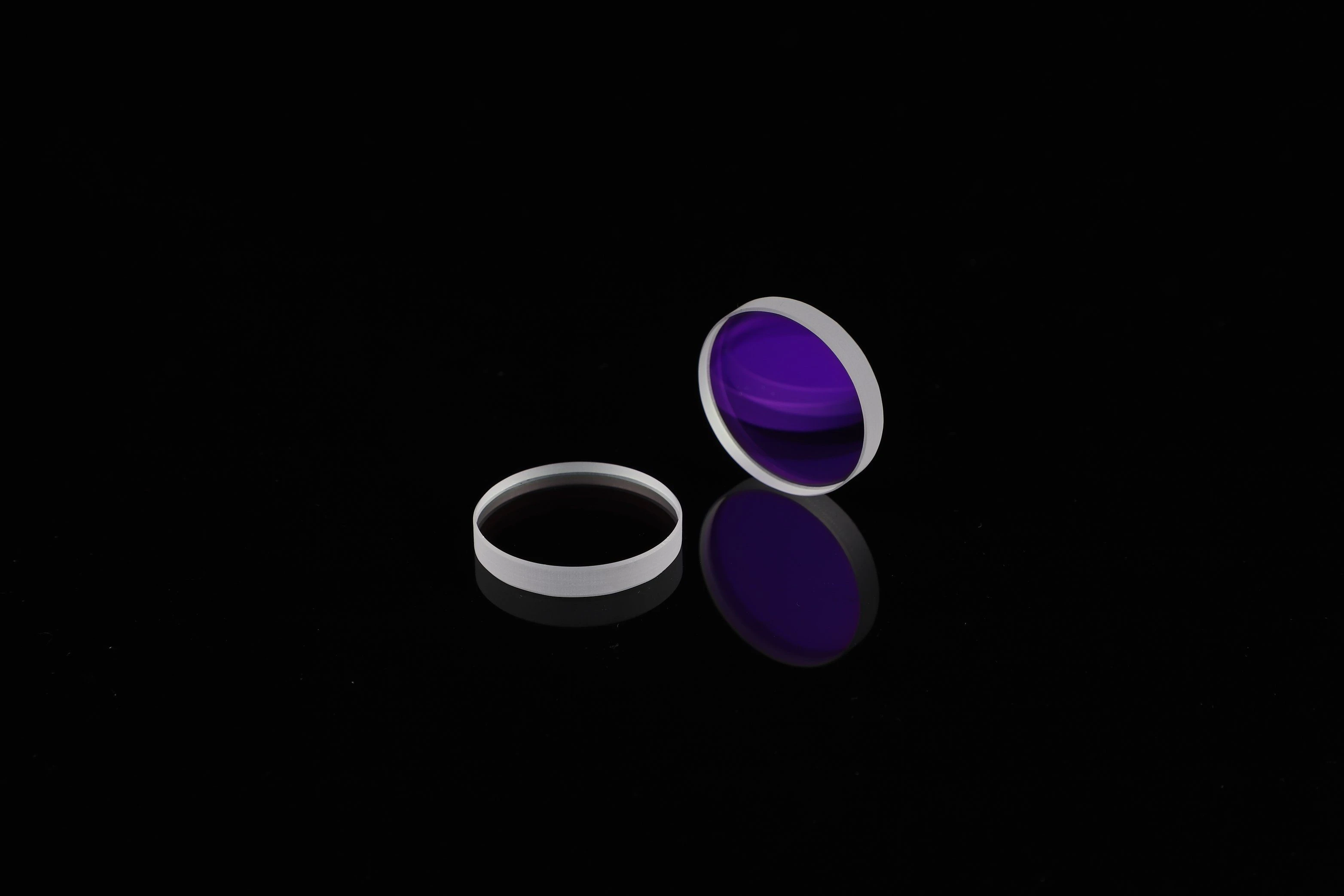

OEM 0.5-10mm Quartz Glass with Ar and ITO Coating with Resistivity7-15 Ohms for Conductive Glass: an ITO-coated glass. Listed geometry: size Customized According to Customer Drawings, thickness 1.0mm/2.0mm/3mm etc. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Glass Silk Screen Color | Black, Gray, White, Other Colors. |
|---|---|
| Glass Raw Materials | Jgs1, Jgs2, Jgs3 Quartz Glass |
| Glass Thickness | 1.0mm/2.0mm/3mm etc |
| Glass Shapes | Square, Round, Irregular Graphics, (Customized) |
| Glass Size | Customized According to Customer Drawings |
| Edge Processing | Straight, Round, Beveled, Stepped; Polished, CNC |
| Surface Treatment | No |
| Minimum Order Quantity | 10 PCS |
| Drilling | Acceptable |
| Shipping Way | Commercial Express, Sea Shipping |
| Tempered | Physical Tempered, Chemical Tempered |
| Hardness | >7h |
| Currently our products are mainly used in | 1. Consumer Electronics (smart watch, smart bracelet, tablet, glass cover, camera lens cover, PSP game console cover, etc.) |
| Packaging | Each glass use double sided protective film and then packed by craft paper then into a wooden crate. |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| Product Name | OEM 0.5-10mm Quartz Glass with Ar and ITO Coating with Resistivity7-15 Ohms for Conductive Glass |
|---|---|
| Material | JGS1, JGS2, JGS3 Quartz glass |
| Color | Clear |
| size | as your requirement |
| shape | as your requirement |
| thinkness | 1mm/2mm/3mm etc. |
| Technology | Tempering (Silk printing, tempering, frosting ,drilling, edging, water-jet cutting, laminating) |
| Used | Lighting equipment, chemical equipment and instruments |
| Diameter | 5mm-1500mm |
|---|---|
| Thickness | 0.8mm-100mm |
| Length | 10mm-800mm |
|---|---|
| Width | 10mm-600mm |
| Thickness | 0.5mm-100mm |
What to specify when you request a quote
- Sheet resistance — state the target sheet resistance and its tolerance.
- Transmittance — give the minimum visible transmission at the resistance you need.
- Substrate and thickness — listed as “Jgs1, Jgs2, Jgs3 Quartz Glass”; name the base glass (soda-lime, borosilicate, alkali-free, quartz) and thickness.
- Size and cutting — listed as “Customized According to Customer Drawings”; give the cut size and whether edges are seamed.
- Pattern or electrodes — send a drawing for any etched pattern, bus bar or electrode.
Engineering guides for this part
For material grades and coating options, see ITO Coated Glass Material Options for Optoelectronic Components. How parts like this are machined and finished is covered in ITO Coating Process: How Conductive Glass is Made for Optoelectronics. For an application example, read Precision ITO Glass Substrate Production for Optoelectronics. A related standard product is Custom ITO Coating Glass.
FAQ
What sizes and thicknesses are available? expand_more
The listing gives size Customized According to Customer Drawings, thickness 1.0mm/2.0mm/3mm etc. Custom outlines and thicknesses are made to drawing; state the tolerance you need.
What should I include in a quote request? expand_more
Include sheet resistance, transmittance, substrate and thickness, size and cutting and pattern or electrodes, plus quantity and a drawing if the part is custom.
