Application: Digitizer. Model: T01.
Overview

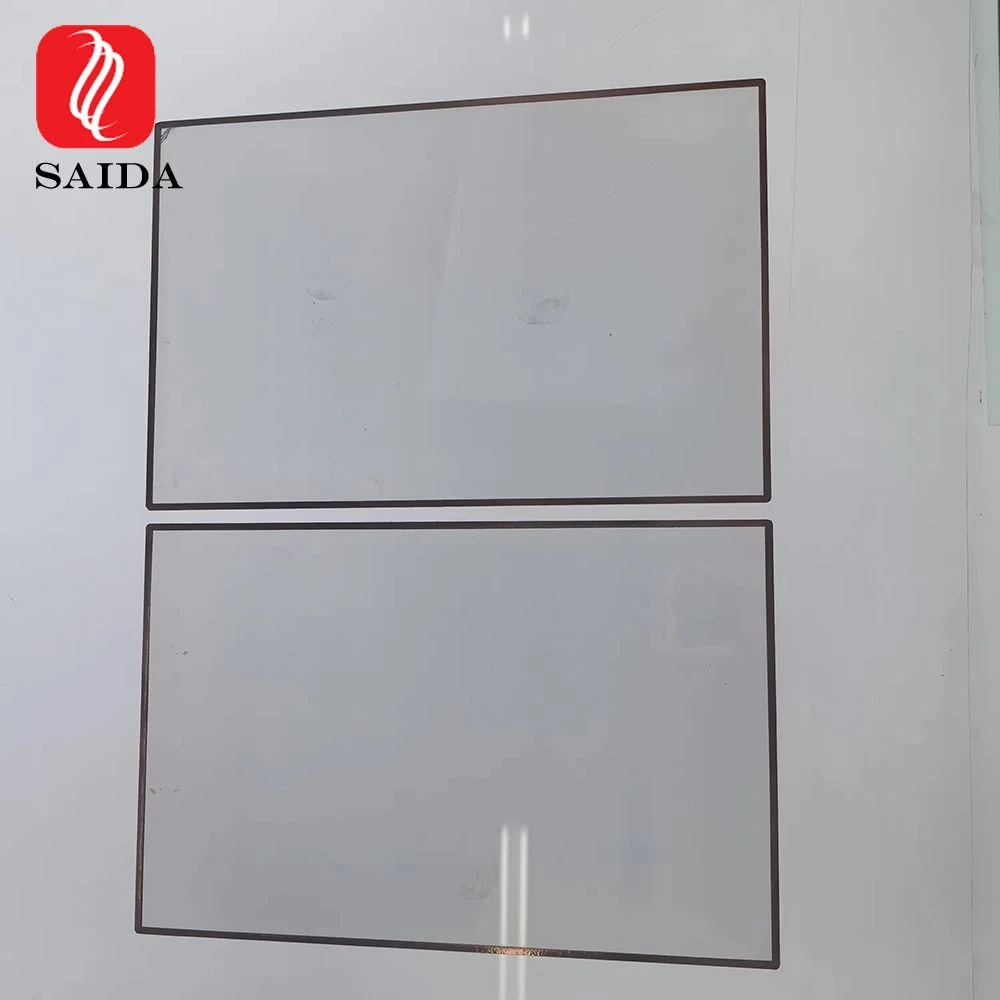

OEM ITO Conductive EMI Shielding Cover Glass with Ar Coating for Monitors: an ITO-coated glass. Listed geometry: curve shape. Flatness Conforming Article. It is used in Electronics & Instruments. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Curve |
|---|---|
| Flatness | Conforming Article |
| Application | Electronics & Instruments |
| Usage | Digitizer |
| Model NO. | T01 |
| Appearance | Bent Tempered |
| Standard | GB/T9963 |
| Steel Degree | Tempered Glass |
| Thickness of Flat Tempered Glass | 0.5mm |
| Fragment State | I |
| Technics | Chemical Tempered |
| Avaialbe Size | 0.33mm, 0.55mm, 0.7mm, 1.1mm, 1.5mm, 2.0mm, |
| Avaialble Coating | Ar/Af/AG/ITO Coating |
| Printing Technology | Silk Printing |
| Quality Standard | En60598, En12150, etc. |
| Color | Customized |
| Mqo | Sample Order Accepted |
| Product picture | Dongguan Saida Glass Co., Ltd. |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| Description: | OEM 0.4mm-6mm ITO Conductive EMI Shielding Cover Glass with AR Coating for Defence Displays, Monitors |
|---|---|
| Glass Material | Soda lime glass/Aluminosilicate glass/Low Iron glass/Borosilicate glass/PMMA |
| Size | Size can be customized |
| Thickness | 0.5mm-12mm |
| Thempered | Thermal Tempered/Chemical Tempered |
| Edge treatment | CNC grind, polished, chamfered |
| Hole | Round/Square (Irregular hole are available) |
| Color | Black/White/Silver (up to 7 layers of colors) |
| Printing Method | Normal Silkscreen printing/High Temperature Silkscreen printing |
| Coating | Anti-Glaring Anti-Reflective Anti-Fingerprint Anti-Scratches ITO /FTO |
| Production process | Cut-Edge Polish-CNC-Clean-Tempered-Print-Clean-Inspect-Pack |
| Features | Anti-scratches/Waterproof/anti-fingerprint/aProduct Typenti-fire/easy to clean/high-pressure scratch resistant |
What to specify when you request a quote
- Sheet resistance — state the target sheet resistance and its tolerance.
- Transmittance — give the minimum visible transmission at the resistance you need.
- Substrate and thickness — listed as “0.5mm”; name the base glass (soda-lime, borosilicate, alkali-free, quartz) and thickness.
- Size and cutting — listed as “0.33mm, 0.55mm, 0.7mm, 1.1mm, 1.5mm, 2.0mm,”; give the cut size and whether edges are seamed.
- Pattern or electrodes — send a drawing for any etched pattern, bus bar or electrode.
