Product type: Flat Lens. Application: Optical.
Overview

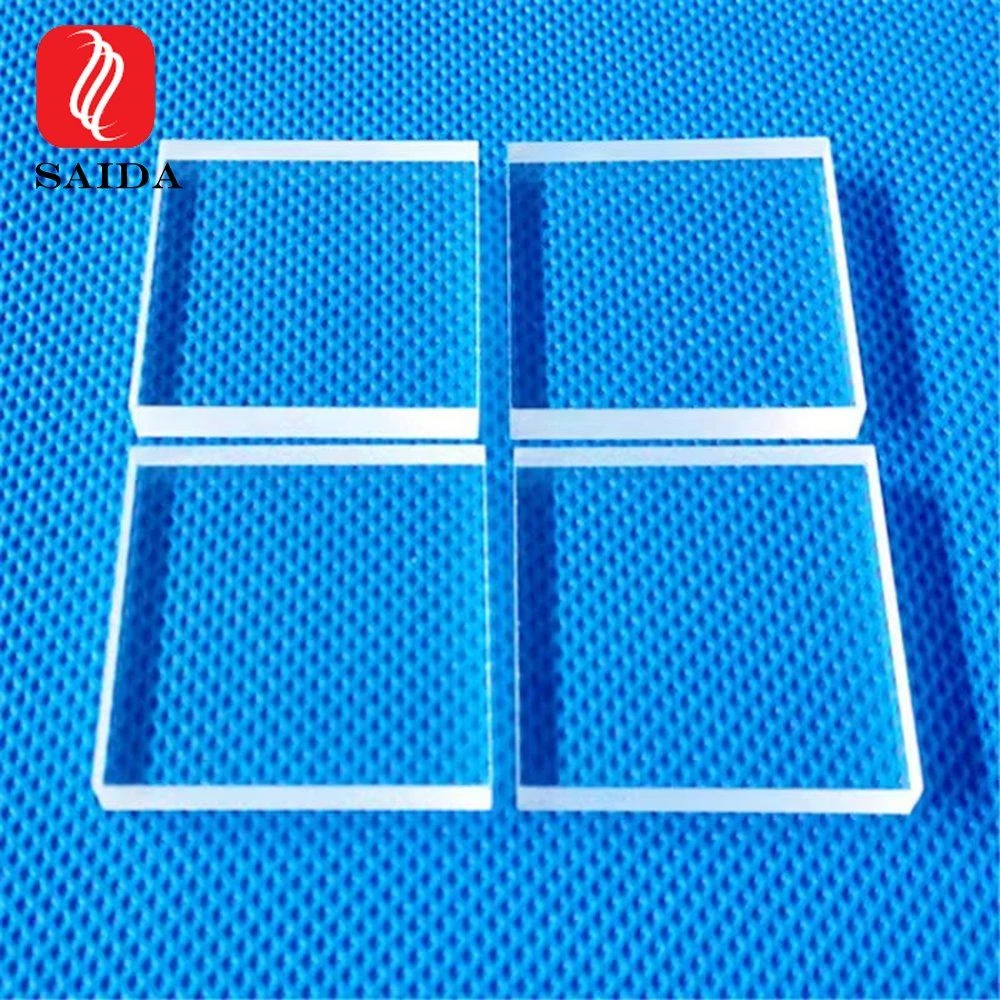

OEM Quartz Glass with Ar and ITO Coating with Resistivity7-15 Ohms for Conductive Glass Pad is an ITO-coated glass made from Optical Glass. Listed geometry: size Customized According to Customer Drawings, thickness 1.0mm/2.0mm/3mm etc, single-lens shape. Optical / electrical data: transmittance >80%. Coating: Ar. Listed for Optical applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Flat Lens |
| Shape | Single-lens |
| Transmittance | >80% |
| Coating | Ar |
| Usage | Optical |
| Lenses Color | Clear |
| Glass Silk Screen Color | Black, Gray, White, Other Colors. |
| Glass Raw Materials | Jgs1, Jgs2, Jgs3 Quartz Glass |
| Glass Thickness | 1.0mm/2.0mm/3mm etc |
| Glass Shapes | Square, Round, Irregular Graphics, (Customized) |
| Glass Size | Customized According to Customer Drawings |
| Edge Processing | Straight, Round, Beveled, Stepped; Polished, CNC |
| Surface Treatment | No |
| Minimum Order Quantity | 10 PCS |
| Drilling | Acceptable |
| Shipping Way | Commercial Express, Sea Shipping |
| Tempered | Physical Tempered, Chemical Tempered |
| Hardness | >7h |
| Currently our products are mainly used in | 1. Consumer Electronics (smart watch, smart bracelet, tablet, glass cover, camera lens cover, PSP game console cover, etc.) |
| Packaging | Each glass use double sided protective film and then packed by craft paper then into a wooden crate. |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| Product Name | OEM Quartz Glass with Ar and ITO Coating with Resistivity7-15 Ohms for Conductive Glass Pad |
|---|---|
| Material | JGS1, JGS2, JGS3 Quartz glass |
| Color | Clear |
| size | as your requirement |
| shape | as your requirement |
| thinkness | 1mm/2mm/3mm etc. |
| Technology | Tempering (Silk printing, tempering, frosting ,drilling, edging, water-jet cutting, laminating) |
| Used | Lighting equipment, chemical equipment and instruments |
| Diameter | 5mm-1500mm |
|---|---|
| Thickness | 0.8mm-100mm |
| Length | 10mm-800mm |
|---|---|
| Width | 10mm-600mm |
| Thickness | 0.5mm-100mm |
What to specify when you request a quote
- Sheet resistance — state the target sheet resistance and its tolerance.
- Transmittance — listed as “>80%”; give the minimum visible transmission at the resistance you need.
- Substrate and thickness — listed as “Optical Glass”; name the base glass (soda-lime, borosilicate, alkali-free, quartz) and thickness.
- Size and cutting — listed as “Customized According to Customer Drawings”; give the cut size and whether edges are seamed.
- Pattern or electrodes — send a drawing for any etched pattern, bus bar or electrode.
