Product type: Color Filter. Application: Lighting, Medical, Optical, Photography. Model: TT Waveplate-17.
Overview

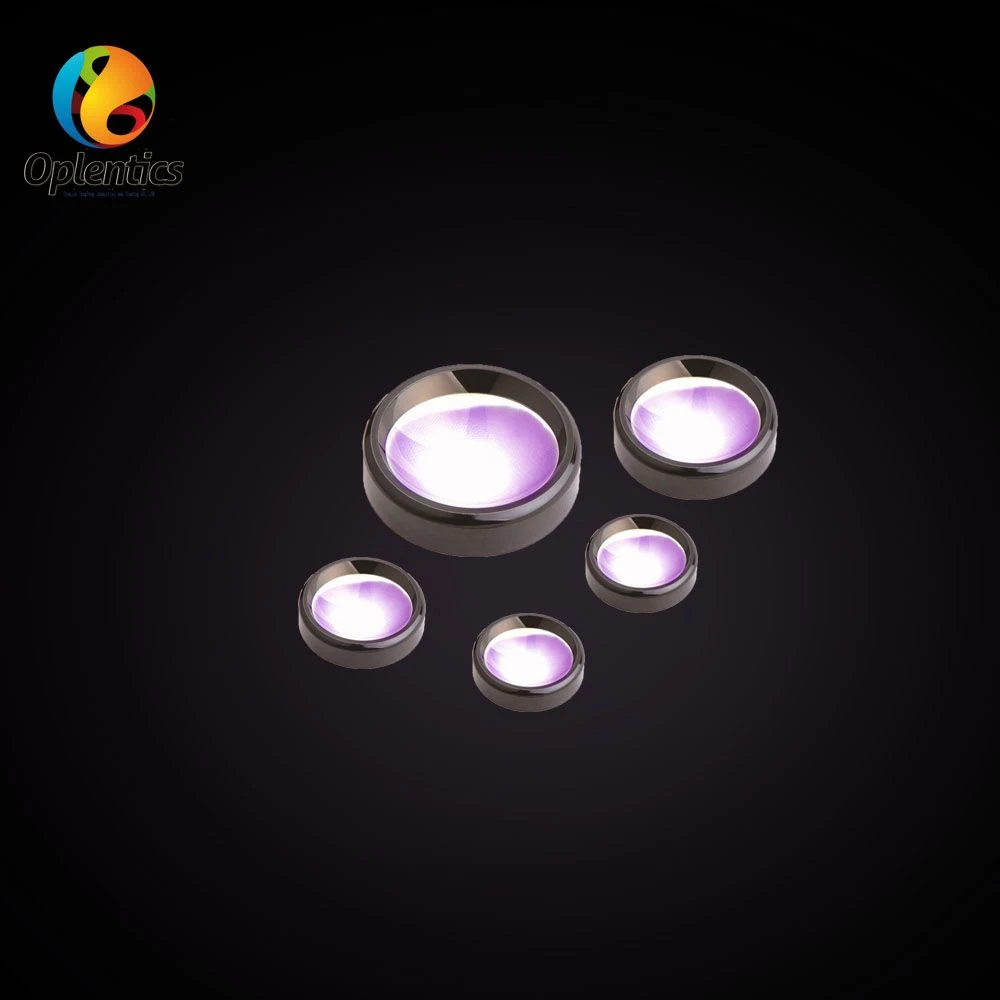

The Optical Ar Coated Fused Silica Zero Order Waveplate (Retarder) is supplied as a waveplate / polariser / grating made from Glass. Listed geometry: thickness as Required. Surface quality as Required. Listed for Lighting, Medical, Optical and Photography applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Thickness | as Required |
| Surface Quality | as Required |
| Usage | Lighting, Medical, Optical, Photography |
| Thickness Range | 1mm-2mm |
| Model NO. | TT Waveplate-17 |
| Color | Red |
| Principle | Neutral-type Filter |
| Angle of incidence | 0° |
| Polished | Yes |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
Technical data
| Product Name | Precision Zero Order Waveplates (Retarders) |
|---|---|
| Material | Optical Glass |
| Size | Dia 1mm to 300mm |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — listed as “0°”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “as Required”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
