Product type: Thin Film Filter. Application: Lighting, Medical, Optical, Photography.
Overview

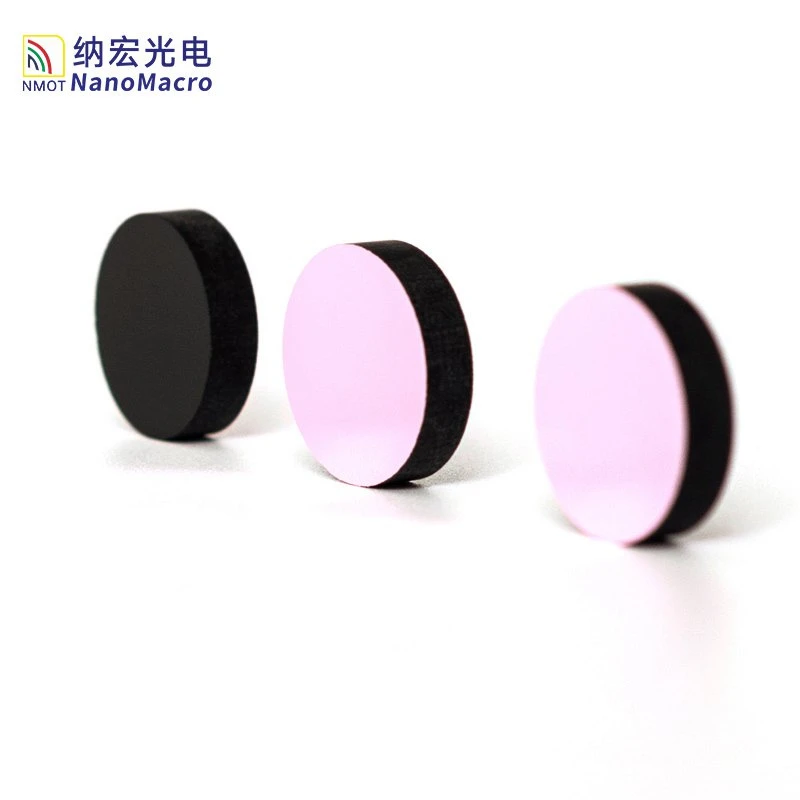

Optical Components Guidance Measurement Imaging Lidar CO2 Laser Window Filter Lens: an optical filter made from Glass. Listed geometry: size 5~120mm, thickness 0.5-3mm or Custom. Optical / electrical data: wavelength 1550nm, bandwidth 30nm or Custom, transmittance T>90%. Typical applications: Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Thin Film Filter |
| Shape | Customized |
| Size | 5~120mm |
| Cwl | 1550nm |
| Fwhm | 30nm or Custom |
| Transmittance | T>90% |
| Usage | Lighting, Medical, Optical, Photography |
| Color | Transparent |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Thickness Range | 0.5-3mm or Custom |
| Applications | Bio-Analyzer |
| Supplier | Nano Macro Optics Co.,Ltd. |
Technical data
| Wavelength | 1550nm |
|---|---|
| FWHM | 30nm or custom |
| Substrate Material | K9,BK7,B270 etc |
| Dimensions | custom |
| Thickness | 1 ±0.1mm or custom |
| AOI | 0° |
| Transmittance | T>90% |
| Surface Quality (SQ) | 60-40 Scratch & Dig |
| Clear Aperture (CA) | 90% |
| Blocking | 350-1100nm except for transmission band |
What to specify when you request a quote
- Spectral target — listed as “1550nm”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “5~120mm”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
