Product type: Thin Film Filter. Application: Medical. Model: STF98.
Overview

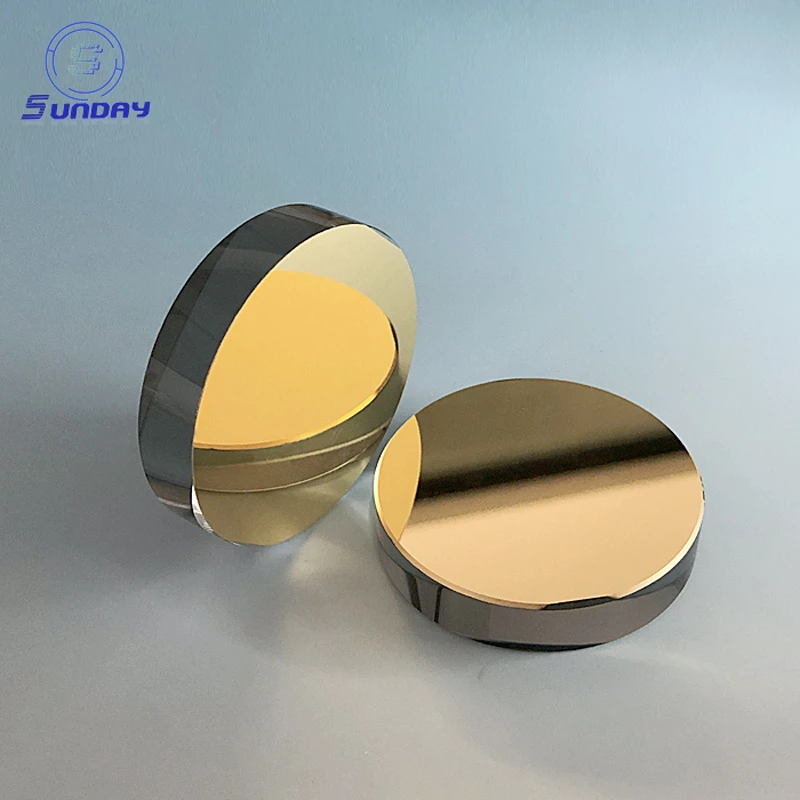

The Optical Front Surface Mirror Quartz UV is supplied as an optical mirror made from Glass. Listed geometry: thickness 2mm-5mm. Optical / electrical data: bandwidth 3-50nm. Surface quality 60-40; flatness 1/4 Lambda. It is used in Medical. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Thin Film Filter |
| Shape | Customized |
| Fwhm | 3-50nm |
| Surface Quality | 60-40 |
| Flatness | 1/4 Lambda |
| Usage | Medical |
| Thickness Range | 2mm-5mm |
| Model NO. | STF98 |
| Color | Blue |
| Principle | Reflection |
| Angle of incidence | 0° |
| Tolerance | +/-0.05mm |
| Supplier | Changchun Sunday Optics Co., Ltd. |
Technical data
| Diameter | 2mm to 400mm |
|---|---|
| Diameter Tol. | +/-0.1 |
| Material | Bk7 sapphire fused silica,ZnS2,CaF2,Si,Ge. |
| Surface Quality | 40-20 standard |
| Flatness | 1/4 lambda |
| Chamfer | 0.25mmx45degree |
| Coating | AR,HR,Silver,Aluminum.Golden. |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — listed as “0°”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “60-40”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
