Product type: Prism. Model: Prism01.
Overview

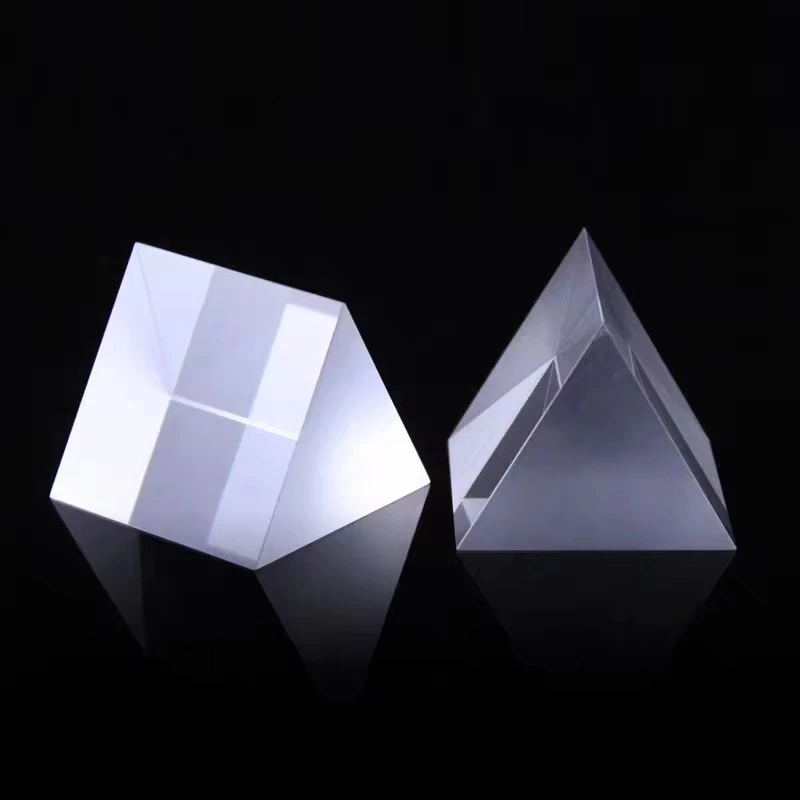

Optical Glass Bk7/K9/UV Fused Silica Rectangular Right Angle Prism is an optical prism. Listed geometry: right angle prisms shape. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Prism |
|---|---|
| Shape | Right Angle Prisms |
| Model NO. | Prism01 |
| UV | UV CaF2 ,UV MgF2, UV Fused Silica |
| VIS | S-chot glass or CDGM glass |
| IR | Znse,IR CaF2,Ge etc |
| Standard Warranty | 12 months |
| Extended Warranty | Optional coverage up to 24months. |
| Global Support | 24/7 technical assistance and spare parts supply. |
| Training | On-site or remote operation/maintenance training. |
| Supplier | Hefei Ezenda Technology Co., Ltd. |
Technical data
| Material | UV: UV CaF2 ,UV MgF2, UV Fused SilicaVIS: S-chot glass or CDGM glassIR: Znse,IR CaF2,Ge etc |
|---|---|
| Dimensions | 1mm to 300mm |
| Design Wavelength | 632.8nm |
| Dimension Tolerance | +0/-0.1mm |
| Thickness Tolerance | ±0.1mm |
| Surface quality | 20-10 S-D |
| Centration | <1 arc minutes |
| Focal Length Tolerance | ±2% |
| Clear Aperture | >90% |
| Chamfer | Protective <0.5mm x 45deg |
What to specify when you request a quote
- Material — name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
