Product type: Concave Lens. Application: Optical.
Overview

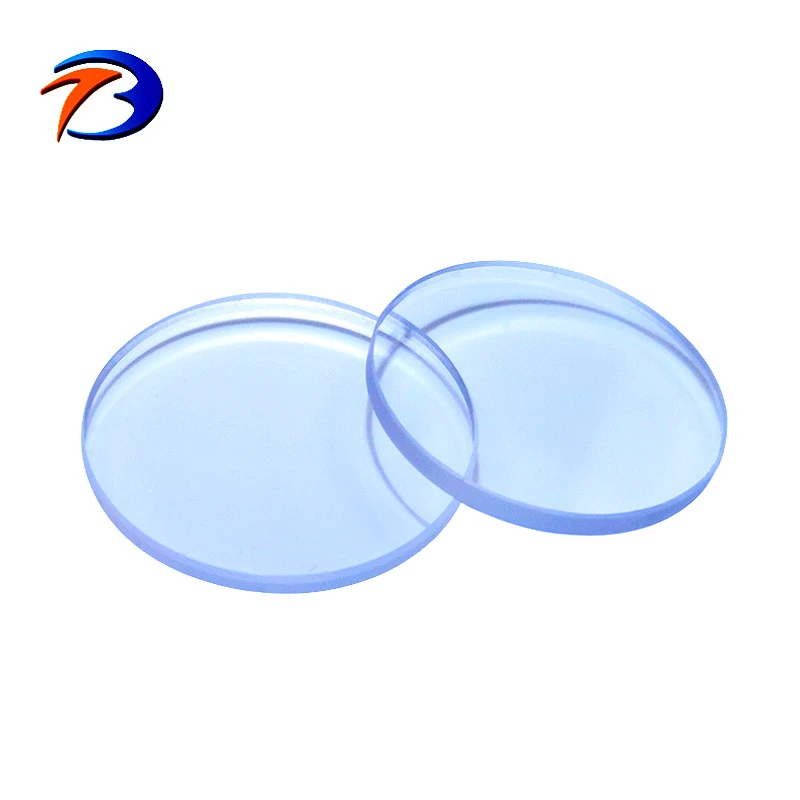

Optical Glass Flat Concave Lens 12mm 50mm 80mm Plano-Concave Lens is an optical lens made from Optical Glass. Listed geometry: plano concave lens shape. Optical / electrical data: transmittance >95%. Typical applications: Optical. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Concave Lens |
| Shape | Plano Concave Lens |
| Transmittance | >95% |
| Usage | Optical |
| Lenses Color | Clear |
| Supplier | Shenyang Ebetter Optics Co., Ltd. |
Technical data
| Diameter Tolerance | +0.0/-0.05mm |
|---|---|
| Center Thickness Tolerance | ±0.02 mm |
| Focal Length Tolerance | ±2% |
| Surface Quality | 60/40, 40/20 or better |
| Material | BK7, UVFused silica, Ge,Si,CaF2, ZnSe, |
| Clear Aperture | >90% |
| Centering | <3 arc min |
| Coating | Custom |
| Bevel | Protective bevel as needed |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
