Product type: All Types. Application: Lighting, Medical, Optical, Photography, Laser System. Model: RAY-OM115#.
Overview

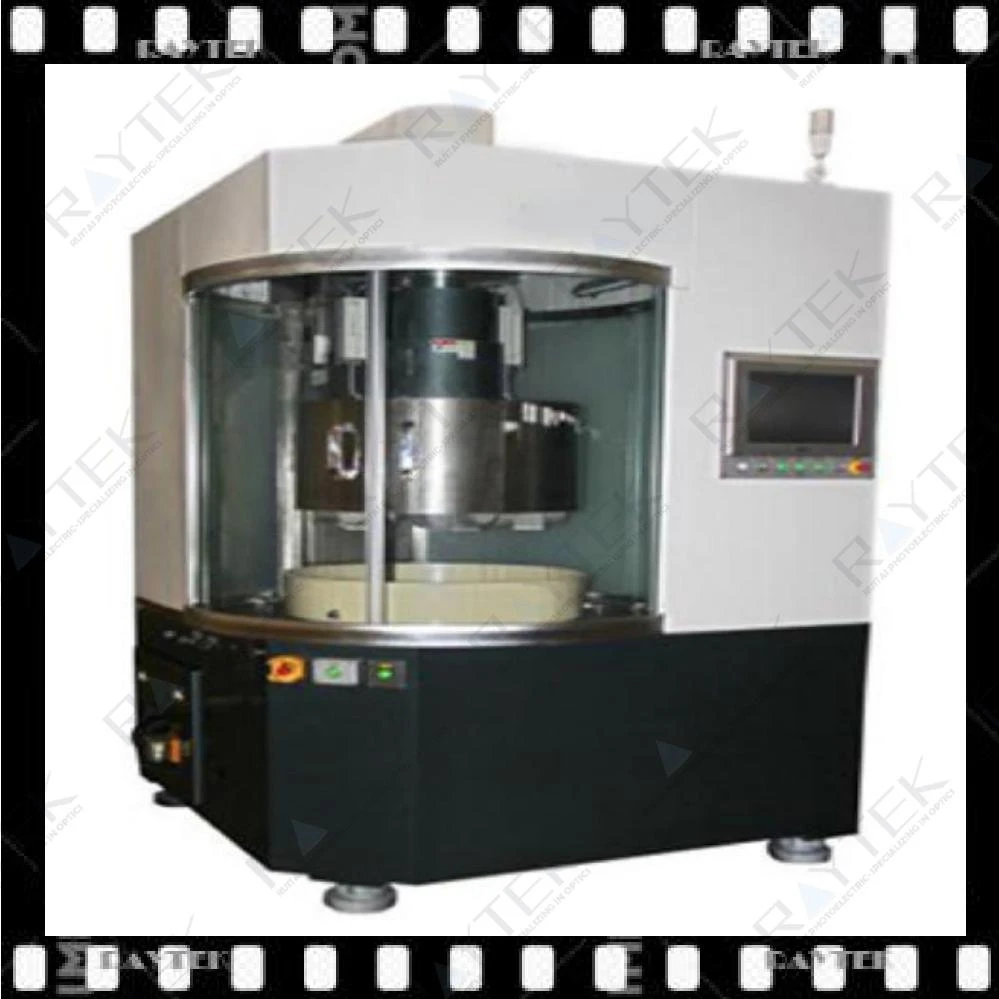

Optical Glass Magnetorheological Polishing/Optical Lens Magnetorheological Polishing/Mrf: an optical lens made from Optical Glass/Fused Silica/Borosillice Glass/CaF2. Listed geometry: all shapes shape. Optical / electrical data: transmittance as Per The Demand. Coating: Polishing/Coating/Uncoating, etc. Typical applications: Lighting, Medical, Optical, Photography and Laser System. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass/Fused Silica/Borosillice Glass/CaF2 |
|---|---|
| Type | All Types |
| Shape | All Shapes |
| Transmittance | as Per The Demand |
| Coating | Polishing/Coating/Uncoating, etc |
| Usage | Lighting, Medical, Optical, Photography, Laser System |
| Model NO. | RAY-OM115# |
| Lenses Color | Clear |
| Polishing Materials Type I | Quartz/Silicon/Sapphire Ingot/Graphite |
| Polishing Materials Type II | Fused Slica/Sic/CaF2/Baf2/Zns/Znse |
| Max.Mrf Polishing Size | D600mm |
| Max.Mrf Polishing Thickness | 200mm |
| Mrf Polishing Accuracy | RMS Less Than 5nm |
| Positioning Accuracy | 0.005mm |
| Movement Controlling Method | (5)6-Axis Linkage |
| Processing Shapes | Planar, Spherical, Aspheric, Ultrathin, Cylindrica |
| Main Processing Technical Capacity Data | Specifications |
| ain Cutting Technologies Advantages | 1).No stress; |
| ain Cooperation Materials Manufacturers | CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Specifications | Manufacturing Limits |
|---|---|
| Processing Workcrafts | Magnetorheological Polishing(MRF) |
| Diameter | ≤600mm (± 0.010mm) |
| Length | ≤1000mm (± 0.010mm) |
| Width | ≤600mm (± 0.010mm) |
| Thickness | ≤200mm (± 0.01mm) |
| Magnetorheological Polishing(MRF) Accuracy | RMS≤5nm |
| Positioning Accuracy | ± 0.005mm |
| Repositioning Accuracy | ± 0.002mm |
| Movement Controlling Method | 6-axis linkage |
| X Stroke Size | 0-1000mm |
| Y Stroke Size | 0-600mm |
| Z-axis Stroke Size | 0-300mm |
| A-axis Rotary Angle | -35° ~ +35° |
| B-axis Rotary Angle | -35° ~ +35° |
| C-axis Rotary Angle | ±360° |
| Processing Shapes | Planar, spherical, aspheric, ultrathin, cylindrical, off-axis, free-form surface |
What to specify when you request a quote
- Material — listed as “Optical Glass/Fused Silica/Borosillice Glass/CaF2”; name the glass or crystal.
- Geometry — listed as “D600mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Polishing/Coating/Uncoating, etc”; list the band and reflectance or transmission target.
