Application: Medical, Civil, Labs. Model: Reflective Mirror.
Overview

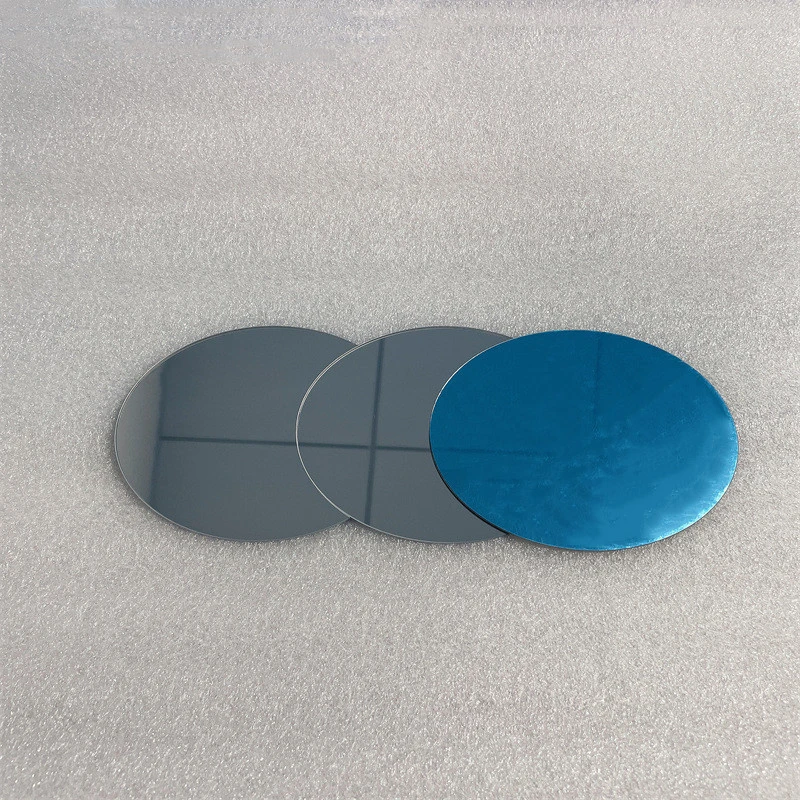

Optical Grade Aluminum Coated Reflective Mirror for Fiber Laser Systems: an optical mirror made from Glass. Listed geometry: diameter Customized, thickness Customized. Typical applications: Medical, Civil and Labs. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Shape | Customized |
| Diameter | Customized |
| Thickness | Customized |
| Application | Medical, Civil, Labs |
| Model NO. | Reflective Mirror |
| Color | Customized |
| Supplier | Huizhou Shengquan Optical Glass Products Co. Ltd |
Technical data
| Size | customized |
|---|---|
| Thickness | 1.5mm or customized |
| Surface Quality | 40/20 |
| Transmission | >85% |
| Parallelism | <5 arcsec |
| Flatness | L/4 |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — listed as “Customized”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
