Product type: Dome Lens. Application: Optical. Model: CW-P25D3S1901.
Overview

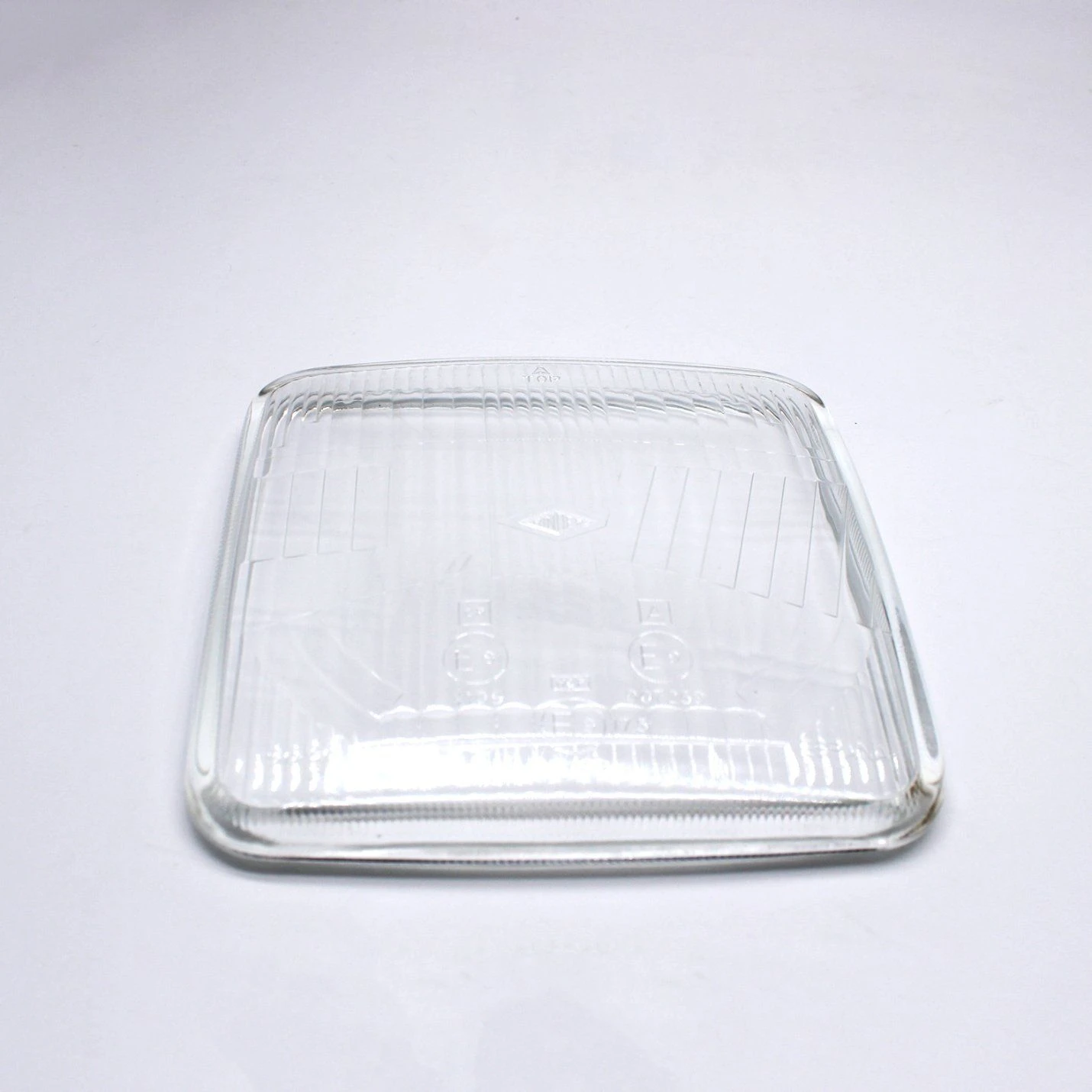

Optical Grade Automotive Cover Glass Precision Molded Component: a printed / strengthened cover glass made from Optical Glass. Listed geometry: thickness Customized, dome lens shape. Optical / electrical data: transmittance >95%. Coating: as Request. It is used in Optical. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Dome Lens |
| Shape | Dome Lens |
| Thickness | Customized |
| Transmittance | >95% |
| Coating | as Request |
| Usage | Optical |
| Model NO. | CW-P25D3S1901 |
| Lenses Color | Clear |
| Materials | Glass |
| Outer Diameter | 115mm |
| Height | Customized |
| Supplier | VY Optoelectronics Co., Ltd. |
Technical data
| Material | Glass |
|---|---|
| Diameter | 148*148mm |
What to specify when you request a quote
- Glass type and thickness — listed as “Optical Glass”; name the glass (soda-lime, aluminosilicate, borosilicate) and thickness.
- Strengthening — state thermal tempering or chemical strengthening and the required surface compression or impact rating.
- Printing and coatings — listed as “as Request”; list silk-screen colours, windows, and any AR / AG / AF coating.
- Outline and edges — listed as “Dome Lens”; send a drawing with cut-outs, holes and edge finish.
- Optical requirements — listed as “>95%”; give transmission, haze or gloss targets for the viewing area.
