Product type: Gluing Lens. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc. Model: OL-0181.
Overview

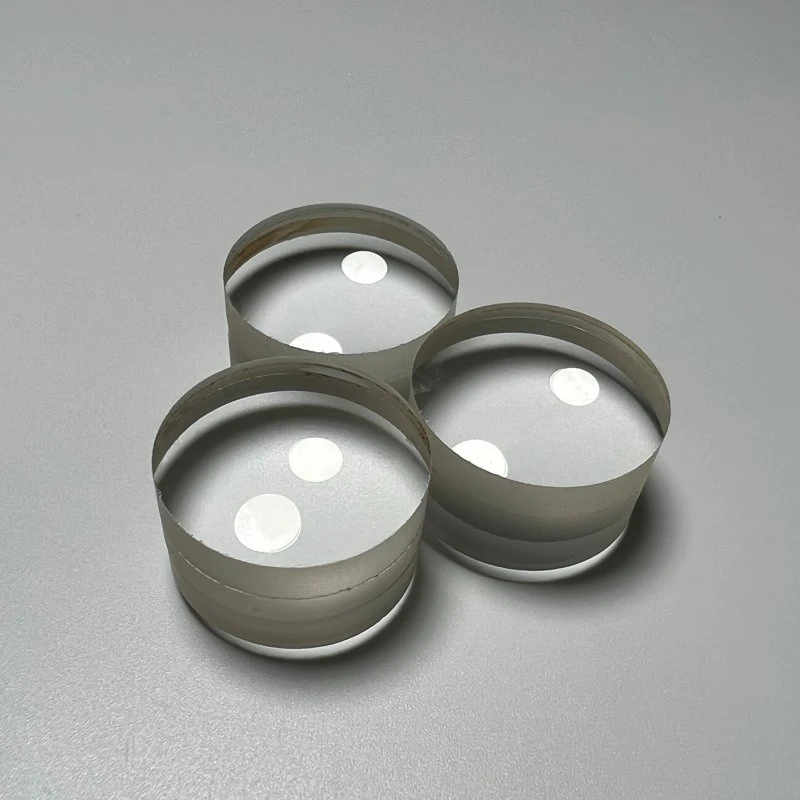

Optical K9 25.4mm FL200mm Ar Coating Achromatic Doublet Glass Cemented Lens is an optical lens in Optical Glass (Bk7, Quartz, Infrared, Sapphire, Ge, Si, Znse, Caf substrate). Listed geometry: diameter 1.5-300mm, size Custom, laminated lenses shape. Optical / electrical data: transmittance >95%. Coating: According to Customer Requirements. Listed for Lighting, Medical, Optical, Photography and Laser applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | Bk7, Quartz, Infrared, Sapphire, Ge, Si, Znse, Caf |
| Type | Gluing Lens |
| Shape | Laminated Lenses |
| Diameter | 1.5-300mm |
| Size | Custom |
| Transmittance | >95% |
| Coating | According to Customer Requirements |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | OL-0181 |
| Lenses Color | Clear |
| Product Name | Optical Lens |
| Industrial Equipment | Laser marking machines, cutting machines, engraving machines, optical sensors |
| Electronic Devices | Cameras, projectors, optical communication equipment, medical imaging devices |
| Automotive Industry | Vehicle-mounted cameras, HUD (Head-Up Display) systems |
| Aerospace | Optical detection equipment, satellite communication systems |
| Supplier | C-Laser (Taicang) Material Technology Co., Ltd. |
Technical data
| Product Name | 25.4mm/50.8mm Optical Glass AR Coating Doublet Achromatic Glued Lens |
|---|---|
| Material | BK7+N-SF5; Or other design |
| Design Wavelength | 546.1nm |
| Diameter | 1-460mm |
| Diameter Tolerance | +-0.1mm |
| Thickness Tolerance | +-0.1mm |
| Centration | 3 arc minutes |
| Clear Aperture | > 90% |
| Flatness | L/4 |
| Surface Quality | 40/20 |
| Bevel | 0.25 mm*45° |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “1.5-300mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “According to Customer Requirements”; list the band and reflectance or transmission target.
