Product type: Optical Windows. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc. Model: OL-339.
Overview

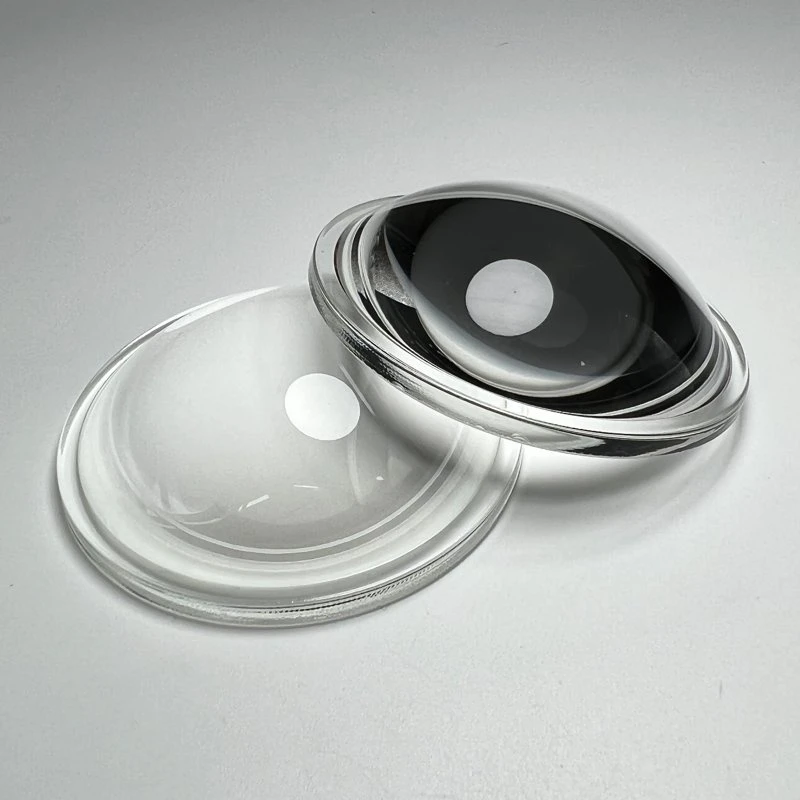

The Optical Lens Optical Customized Convex Coating Fused Silica Optical Processing Quartz Lens is supplied as an optical lens made from Optical Glass. Listed geometry: single-lens shape. Optical / electrical data: wavelength 150-5000nm, transmittance >95%. Supplied uncoated; surface quality 40-20. Listed for Lighting, Medical, Optical, Photography and Laser applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | Optical Glass |
| Type | Optical Windows |
| Shape | Single-lens |
| Wavelength Range | 150-5000nm |
| Transmittance | >95% |
| Coating | Uncoating |
| Surface Quality | 40-20 |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | OL-339 |
| Lenses Color | Clear |
| Focal Length | 2mm-10000mm+/-0.3% |
| Main Characteristics | Sapphire, Sapphire windows,Sapphire materials, Sapphire optical materials |
| Supplier | C-Laser (Taicang) Material Technology Co., Ltd. |
Technical data
| Items | Value | Value |
| Tensile strength | 40,000 – 60,000 psi (design criterion) | 0.27 – 0.41 GPa |
| Flexural strength | 70,000 -130,000 psi (design criterion) | 0.48 – 0.89 GPa |
| Young's Modulus, E (25 °C)(Modulus of Elasticity) | 50 x 106 psi | 345 GPa |
| Compressive Modulus, K | 55 x 106 psi | 379 GPa |
| Flexural Modulus (Modulus of Rupture) | 52 x 106 psi | 358 GPa |
| Shear Modulus, G (Modulus of Rigidity) | 21.5 x 106 psi | 148 GPa |
| Bulk Modulus, k (Volumetric Modulus of Elasticity) Poisson's Ratio | 35 x 106 psi0.29 | 241 GPa |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “2mm-10000mm+/-0.3%”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Uncoating”; list the band and reflectance or transmission target.
Engineering guides for this part
For material grades and coating options, see Fused Silica Windows for UV and Laser Optical Systems. How parts like this are machined and finished is covered in Flat Glass Polishing Process for Precision Substrates. For an application example, read Boost Yield with Fused Silica Viewports for Vacuum and Optical Systems. Before sending a drawing, check Specifying Coatings for Custom Glass Windows and Substrates. A related standard product is Fused Silica Glass Wafers (2–12", JGS1/JGS2).
