Application: Medical, Civil, Labs. Model: silver mirror.
Overview

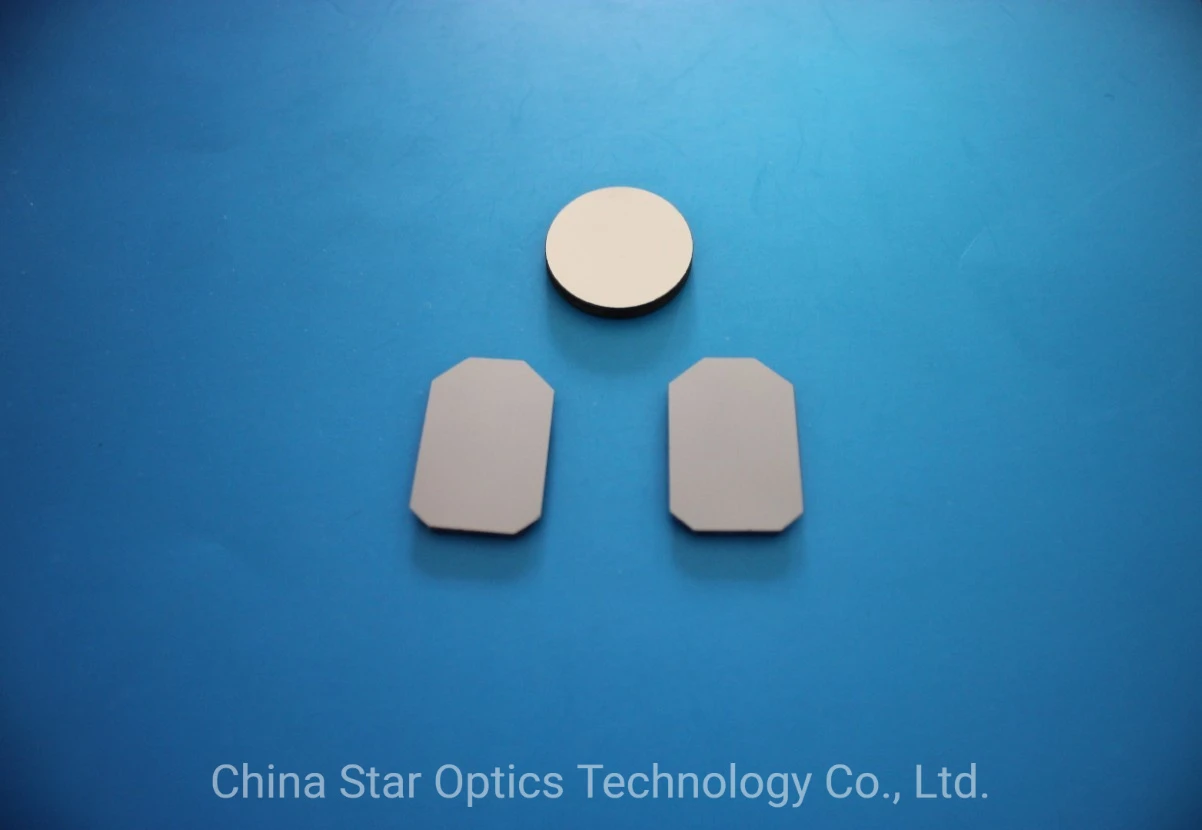

Optical Mirror with Silver or Aluminum Reflective and Protective Coating: an optical mirror made from Glass. Listed geometry: plano shape. It is used in Medical, Civil and Labs. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Shape | Plano |
| Application | Medical, Civil, Labs |
| Model NO. | silver mirror |
| Supplier | China Star Optics Technology Co., Ltd. |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
