Product type: Convex Lens. Application: Optical, Infrared Image. Model: STF0.
Overview

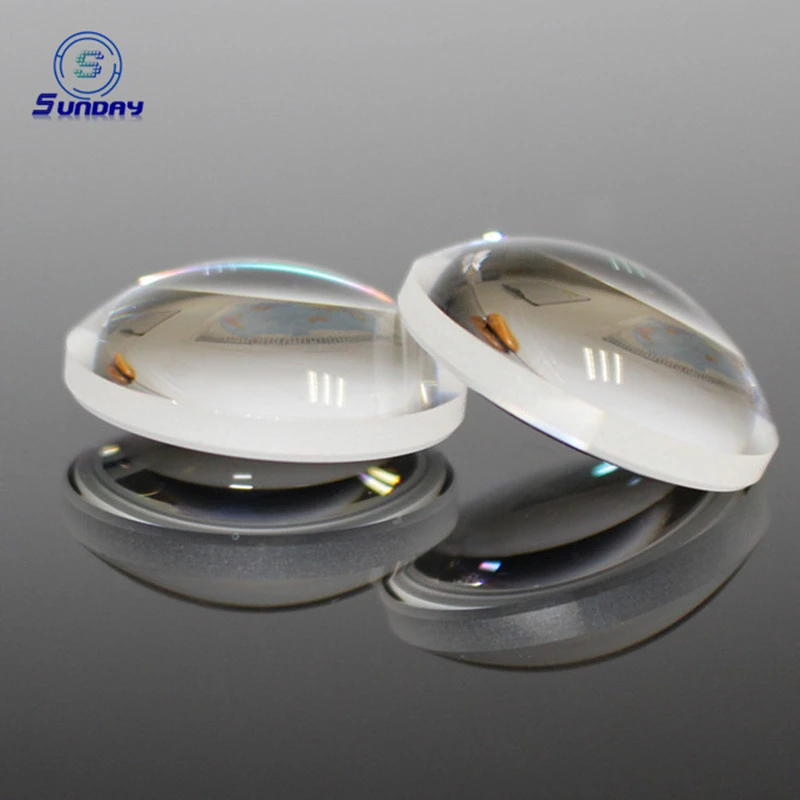

Optical Precision Biconvex Spherical Lens Ar Coated 25.4mm 12.7mm 20mm 5mm: an optical lens made from K9 Quartz Bk7 Corning7980 Germanium Silicon Znse. Listed geometry: single-lens shape. Optical / electrical data: transmittance >95%. Coating: Polish+Coating; surface quality 10-5; flatness 1/20 Lambda. Listed for Optical and Infrared Image applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | K9 Quartz Bk7 Corning7980 Germanium Silicon Znse |
|---|---|
| Type | Convex Lens |
| Shape | Single-lens |
| Transmittance | >95% |
| Coating | Polish+Coating |
| Surface Quality | 10-5 |
| Flatness | 1/20 Lambda |
| Usage | Optical, Infrared Image |
| Model NO. | STF0 |
| Lenses Color | Clear |
| Tolereance | +0.00/-0.01mm |
| Certeration | <1arcmin |
| Supplier | Changchun Sunday Optics Co., Ltd. |
Technical data
| Structure | Bi convex lens |
|---|---|
| Material | Optical glass, UVFS,Germanium, Silicon,CaF2,MgF2,ZnSe ZnS,Sapphire |
| Diameters Available | 1mm to 600mm |
| Diameter Tolerance | +0.00/-0.01mm or customer design |
| Surface Quality | 10-5 |
| Thickness tolerance | +0/-0.01mm |
| Clear Aperture | >90% of Diameter |
| Chamfer | 0.05-0.5mmx45degree,according to customer's needs. |
| Centeration | 3 arcmin |
| Coating | Single Mag2, Multiple Layers AR Coating A:350-650nm B:650-1050nm C:1050-1585nm D: Customer Design |
What to specify when you request a quote
- Material — listed as “K9 Quartz Bk7 Corning7980 Germanium Silicon Znse”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “10-5”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Polish+Coating”; list the band and reflectance or transmission target.
