Application: Medical, Optical. Model: yt435.
Overview

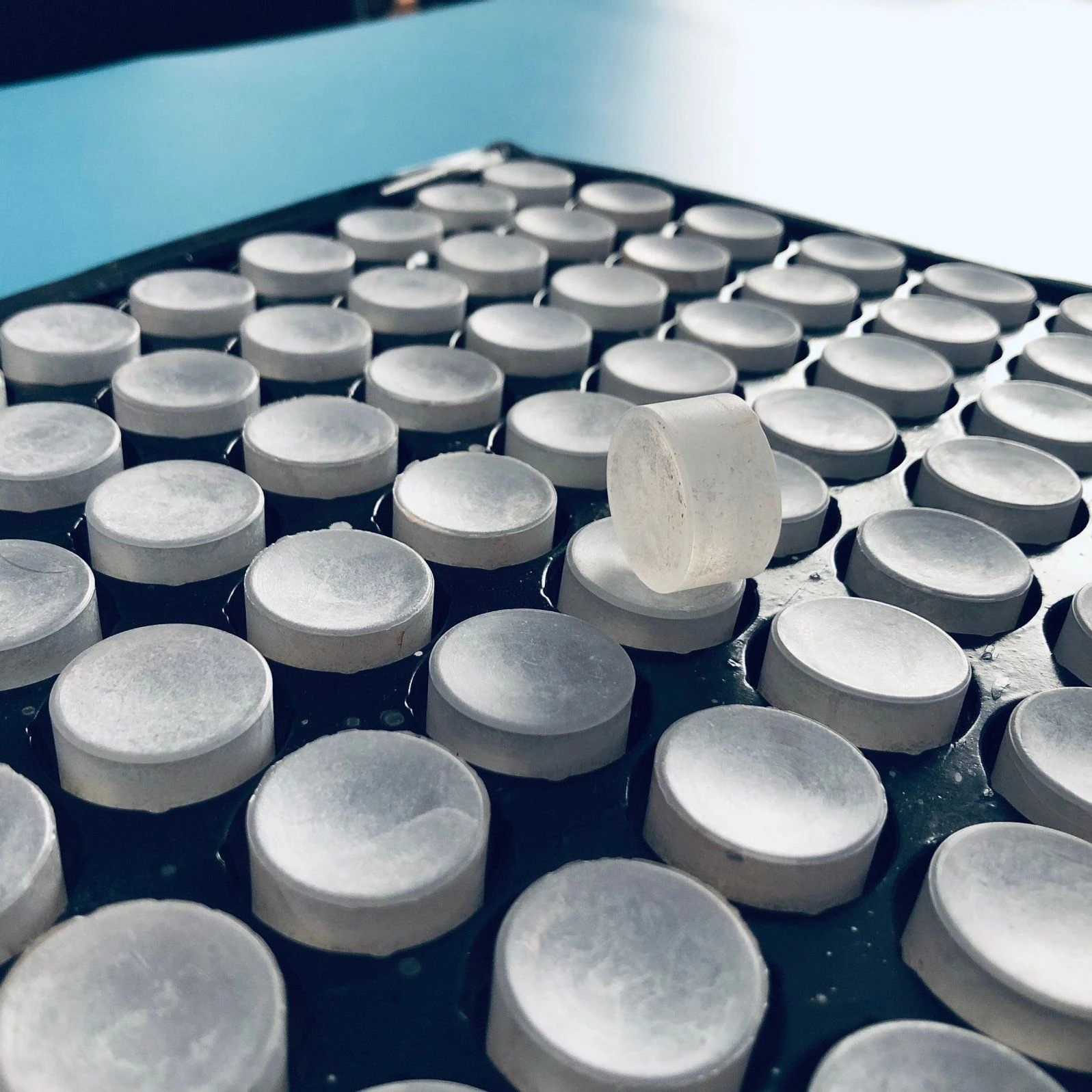

Optical Single Crystal Sapphire Glass Blanks/Substrate for Laser Window /Glass Sheet and Glass Lens Blanks Endoscope Lens is an optical lens in Optical Glass (Sapphire substrate). Listed geometry: diameter 1-300mm, thickness 0.5-50mm. Optical / electrical data: transmittance >95%. Coating: HC. Typical applications: for Optical Window, Glass and Sheet. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | Sapphire |
| Diameter | 1-300mm |
| Thickness | 0.5-50mm |
| Transmittance | >95% |
| Coating | HC |
| Application | for Optical Window/Glass/Sheet |
| Usage | Medical, Optical |
| Model NO. | yt435 |
| Lenses Color | Clear |
| Diameter Tolerance | +0/-0.2mm |
| Thickness Tolerance | +/-0.2mm |
| Color | Matte |
| materials comparison | Material |
| Supplier | Changchun Yutai Optics Co., Ltd. |
Technical data
| Material | Sapphire |
|---|---|
| Diameter | 1-300mm |
| Thickness | 0.5-50mm |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “1-300mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “HC”; list the band and reflectance or transmission target.
