Product type: Ball. Application: Optical, Fiber Coupling. Model: SRY46Y.
Overview

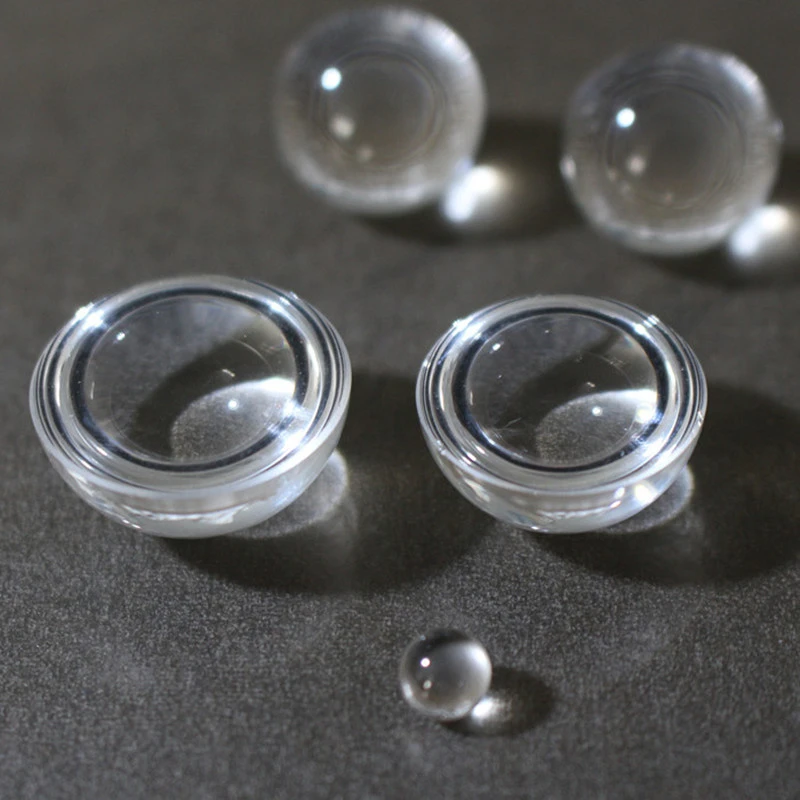

Optical Spherical Ball Lens 10mm 13mm 15mm Sapphire Jgs1: an optical lens made from K9 Quartz Bk7 Sapphire Germanium Silicon Znse. Listed geometry: ball, hemisphere shape. Optical / electrical data: transmittance >95%. Coating: Polish+Coating; surface quality 20-10; flatness 1/4 Lambda. Typical applications: Optical and Fiber Coupling. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | K9 Quartz Bk7 Sapphire Germanium Silicon Znse |
|---|---|
| Type | Ball |
| Shape | Ball, Hemisphere |
| Transmittance | >95% |
| Coating | Polish+Coating |
| Surface Quality | 20-10 |
| Flatness | 1/4 Lambda |
| Usage | Optical, Fiber Coupling |
| Model NO. | SRY46Y |
| Lenses Color | Clear |
| Tolereance | +0.00/-0.002mm |
| Supplier | Changchun Sunday Optics Co., Ltd. |
Technical data
| Diameter | 0.3mm -200mm |
|---|---|
| Diameter Tol. | +/-0.002 |
| Material | BK7 Fused Silica,Sapphire,ZnSe,Caf2,ruby. |
| Surface Quality | 40-20 standard |
| Sphericity | 0.003mm |
| Clear Aperture | >90% |
What to specify when you request a quote
- Material — listed as “K9 Quartz Bk7 Sapphire Germanium Silicon Znse”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “20-10”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Polish+Coating”; list the band and reflectance or transmission target.
