Product type: Right Angle Prism. Application: Optical Communication. Model: JS-CK-002.
Overview

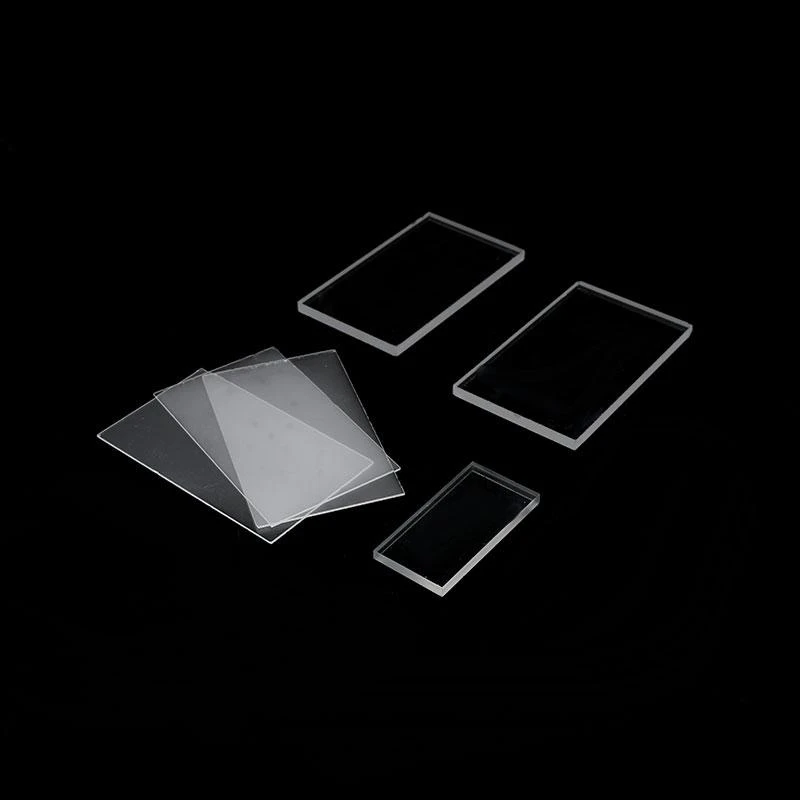

Polished Ultra Thin Sapphire Wafers and Substrates Optical Window 1mm 0.5mm Ultra Thin Sapphire Windows: a sapphire / specialty wafer made from Glass. Listed geometry: right angle prism shape. Surface quality 10/5~80/50. Listed for Scientific Research applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Right Angle Prism |
| Shape | Right Angle Prism |
| Surface Quality | 10/5~80/50 |
| Clear Aperture | >90% |
| Application | Scientific Research |
| Usage | Optical Communication |
| Model NO. | JS-CK-002 |
| Coating Choice | UC/ Hc/Hmc/Shmc/UV400/UV420 |
| Surface Accuracy | 1/4 Lambda Or1/8lambda |
| Color | Transparent |
| Supplier | Shanghai Jingsheng Optoelectronics Technology Co., Ltd |
Technical data
| Material | N-BK7, UV Fused Silica |
|---|---|
| Surface Quality | 40/20 20/10, 60/40, 40/20 |
| Dimension Tolerance | ±0.2mm |
| Angle Tolerance | +/- 2 arc seconds, +/- 2 arc seconds |
| Flatness | 1/4 Lambda OR 1/8 Lambda |
| Dimension (mm) | 0.5mm-380mm |
What to specify when you request a quote
- Diameter and flat / notch — state diameter, flat or notch and their tolerances.
- Thickness and TTV — give thickness, its tolerance and total thickness variation.
- Polish and roughness — listed as “10/5~80/50”; specify single- or double-side polish and roughness.
- Flatness, bow and warp — quote flatness, bow and warp limits.
- Material grade — listed as “Glass”; name the grade (JGS1/JGS2, Borofloat 33, alkali-free, sapphire orientation).
