Product type: Cube Prism. Application: Beam Dispersion. Model: FSOP.
Overview

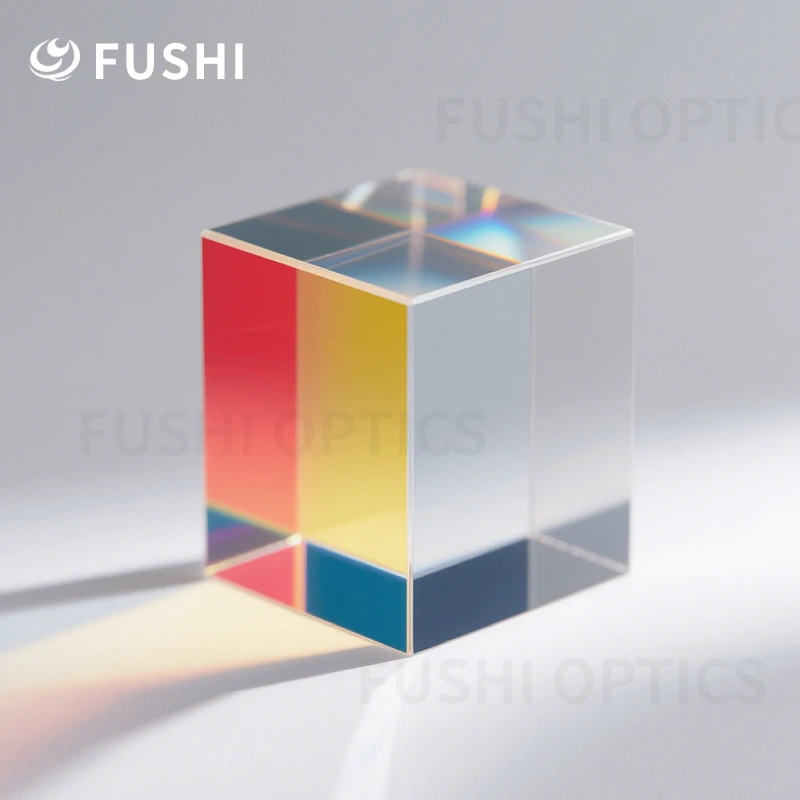

Precision-Cut Cube Prisms for Optical Instruments – High-Quality K9, Silica Materials for Laser and Imaging Systems is an optical prism made from Glass. Listed geometry: cube corner prism shape. Surface quality 20/10 or Better. Typical applications: Digital Device. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Cube Prism |
| Shape | Cube Corner Prism |
| Surface Quality | 20/10 or Better |
| Clear Aperture | >90% |
| Application | Digital Device |
| Usage | Beam Dispersion |
| Model NO. | FSOP |
| Model No | Fsop |
| Principle | Ar Coating |
| Supplier | Tianjin Fushi Optical Technology Co., Ltd. |
Technical data
| PRODUCT NAME | Cube Prism |
|---|---|
| PRODUCT SIZE | 1-500mm |
| SURFACE PERFECTION | 20/10 or better |
| DIMENSIONAL TOLERANCE | ±0.02MM |
| MATERIAL | Glass |
| TRANSMITTANCE | 96% |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “20/10 or Better”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
