Model: HHLGTL.
Overview

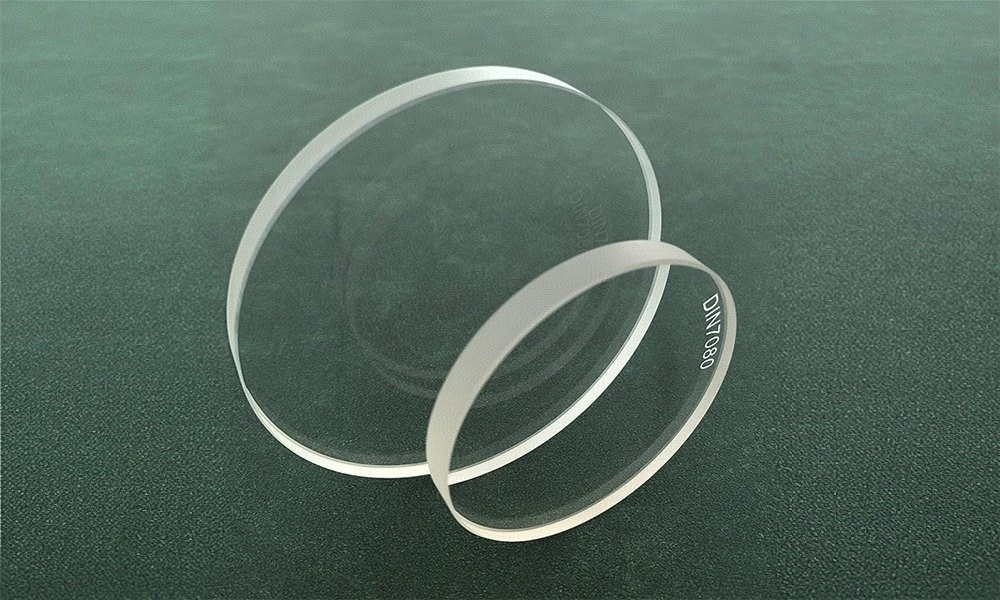

The Precision Technical Sight Glass Lens is supplied as a sight / viewing glass. Listed geometry: size Od From 50mm to 500mm. Optical / electrical data: transmittance Visible light transmittance ≥92%, low iron & zero distortion, dedicated to spectral detection and precision imaging;, sheet resistance Long working temperature ≤ 450 ° C, short time working ≤ 500 ° C. Temperature Industrial oven sight lens, high-low temperature test chamber optical panel, heating chamber light window. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Size | Od From 50mm to 500mm |
|---|---|
| Item | High Pyrex Pressed Round Sight Glass Lens |
| Model NO. | HHLGTL |
| Process | Cut, Polish, Ground, Tempered |
| Property 1 | Borosilicate Heat Resistant |
| Shipment | by Sea, by Air, by Courier |
| Tempered soda lime lens | Cost-effective for normal-temperature observation and general sensor light paths; |
| Borosilicate optical lens | Wide temperature range from -40ºC to 300ºC, outstanding thermal shock resistance for high-temperature chambers & thermal cycling equipment; |
| High-transmittance optical glass lens | Visible light transmittance ≥92%, low iron & zero distortion, dedicated to spectral detection and precision imaging; |
| Stepped optical lens | Multi-layer concentric tiers with micron-level thickness control, ideal for light splitting, liquid level and flow monitoring equipment. |
| AR anti-reflection coating | Reduce light reflection, boost transmittance for clearer observation under strong light; |
| Hydrophobic oleophobic coating | Anti-fingerprint, anti-oil & limescale, easy to wipe clean; |
| Dust-proof passivation coating | Reduce dust adhesion and lower equipment maintenance frequency. |
| Photoelectric sensing | Photoelectric sensor lens, optical calibration lens, spectral analyzer light path lens |
| Flow measurement | Flow meter stepped observation lens, tank liquid level optical sight glass, pipeline transparent lens |
| Lab biological equipment | Photobioreactor light lens, incubator observation lens, reactor optical window |
| High-temperature industrial equipment | Industrial oven sight lens, high-low temperature test chamber optical panel, heating chamber light window |
| Industrial control testing | Control cabinet display lens, automatic detector optical lens, new energy storage equipment observation window |
| Optional Material | Tempered soda lime glass / Heat-resistant borosilicate optical glass / Low iron high-transmittance float optical glass |
| Visible Light Transmittance | 90%~92% |
| Machining Precision | Flat lens parallelism ≤0.005mm; Step height tolerance ±0.005mm |
| Lens Types | Flat lens / Concentric stepped optical disc / Curved convex-concave lens / Square embedded lens |
| Optional Processing | CNC precision grinding, hole drilling, AR anti-reflection coating, hydrophobic anti-fingerprint coating, silk screen printing |
| Safety Feature | Tempered version breaks into blunt granular fragments, shatter & splash proof |
| Temperature resistance | Long working temperature ≤ 450 ° C, short time working ≤ 500 ° C |
| Light transmission rate | 95% up |
| Hydraulic Water-resistant strength | More than test 40Kgf/cm ² |
| Thermal stability | T300 ° C |
| Linear expansion coefficient (0-300 ° C) | 3.3 × 10-7 K-1 |
| Softening temperature | 820° C |
| Supplier | Jinan Honhai Glass Company Limited |
What to specify when you request a quote
- Glass type and thickness — listed as “Tempered soda lime glass / Heat-resistant borosilicate optical glass / Low iron high-transmittance float optical glass”; name the glass and thickness.
- Temperature and pressure — listed as “Industrial oven sight lens, high-low temperature test chamber optical panel, heating chamber light window”; give working temperature, thermal shock and any pressure rating.
- Strengthening and safety — listed as “Cost-effective for normal-temperature observation and general sensor light paths;”; state tempering, lamination or the safety standard.
- Outline and edges — listed as “Od From 50mm to 500mm”; send a drawing with outline, holes and edge finish.
