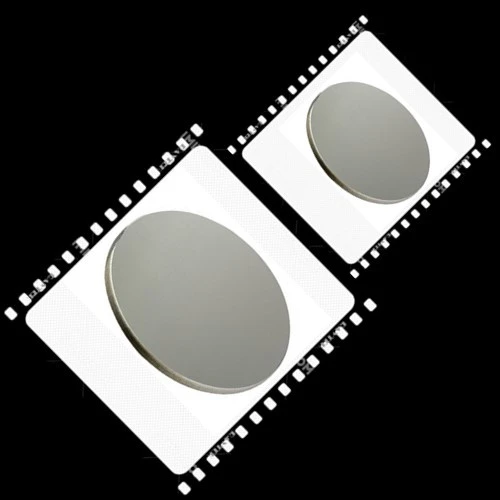

Premium Borofloat 33 Optical Mirrors for Enhanced Clarity

Premium Borofloat 33 Optical Mirrors for Enhanced Clarity — an optical mirror: Borofloat 33 or Equivalent, 3.1mm, 6.0mm, 12.7mm or Custom Manufacturing…

Borofloat 33 or EquivalentMaterial
Borofloat 33 or EquivalentSubstrate
AsphericShape
3.1mm, 6.0mm, 12.7mm or Custom ManufacturingThickness
Request a Quote Open the 3D + 2D Builder More in this family arrow_forward
Premium Borofloat 33 Optical Mirrors for Enhanced Clarity

Application: Medical, Civil, Labs, Astronomy, Laser, etc. Model: RAY-OM058#.

Overview

Premium Borofloat 33 Optical Mirrors for Enhanced Clarity is an optical mirror made from Borofloat 33 or Equivalent. Listed geometry: thickness 3.1mm, 6.0mm, 12.7mm or Custom Manufacturing, aspheric shape. Optical / electrical data: wavelength 250-600nm, 450-700nm, 480-20000nm, 650-20000 Nm. Coating: Four metal coatings covering UV-IR spectrum; surface quality N/a; flatness Lambda/10 at 632.8nm. It is used in Medical, Civil, Labs, Astronomy and Laser. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.

Specifications

Material Borofloat 33 or Equivalent
Substrate Borofloat 33 or Equivalent
Shape Aspheric
Thickness 3.1mm, 6.0mm, 12.7mm or Custom Manufacturing
Wavelength Range 250-600nm, 450-700nm, 480-20000nm, 650-20000 Nm
Coating Four metal coatings covering UV-IR spectrum
Surface Quality N/a
Application Medical, Civil, Labs, Astronomy, Laser, etc
Model NO. RAY-OM058#
Surface Flatness Lambda/10 at 632.8nm
Coating Type Metal Coatings Covering UV-IR Spectrum
Products Name Economy Borofloat 33 Metallic Mirrors
Alias Borofloat 33 Metallic Mirror, Borofloat Metallic Mirror
Mirrors Substrates Borofloat 33
Applying Fields I Most suitable for prototype development, proof of concept or educational applications where power loss, dispersion or wavefront distortion requirements are not critical
Main Optical Tech Specification Tech Data
Popular Physical Size Specification Mirror Size
Supplier Shanghai Rui Tai Photoelectric Technology Co., Ltd.

Technical data

Applying Fields I: Most suitable for prototype development, proof of concept or educational applications where power loss, dispersion or wavefront distortion requirements are not critical
*****
Tech Data Description
Wavelength Range 250-600 nm, 450-700 nm, 480-20000 nm, 650-20000 nm
Angle of Incidence 0-45°
Coating Type Metal coatings covering UV-IR spectrum
Reflectivity –
Damage Threshold –
Material Borofloat 33
Surface Quality –
Surface Flatness λ/10 at 632.8 nm
Clear Aperture ≥central 80% of diameter
Chamfers –
Chamfers Angle Tolerance –
Wedge –
Mirror Size 12.7 mm, 25.4 mm, 50.8 mm or custom manufacturing
Thickness 3.1 mm, 6.0 mm, 12.7 mm or custom manufacturing
Thickness Tolerance –
Diameter 12.7 mm, 25.4 mm, 50.8 mm or custom manufacturing
Diameter Tolerance –

What to specify when you request a quote

  • Material — listed as “Borofloat 33 or Equivalent”; name the glass or crystal.
  • Geometry — listed as “Mirror Size”; give diameter, focal length or radii, angles and tolerances.
  • Surface figure — listed as “N/a”; quote surface figure (λ) and scratch-dig.
  • Centring and edges — state centration and edge chamfer.
  • Coating — listed as “Four metal coatings covering UV-IR spectrum”; list the band and reflectance or transmission target.

Engineering guides for this part

For material grades and coating options, see Fused Silica Windows for UV and Laser Optical Systems. How parts like this are machined and finished is covered in Chalcogenide Glass Coating for IR Optical Components. For an application example, read How to Handle and Maintain Precision Glass Components in Laser Systems. Before sending a drawing, check Technical Guide to Glass Thickness and Flatness Requirements. A related standard product is Infrared Windows.

FAQ

What is the Premium Borofloat 33 Optical Mirrors for Enhanced Clarity made of? expand_more
It is listed as Borofloat 33 or Equivalent. Coating: Four metal coatings covering UV-IR spectrum. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
What sizes and thicknesses are available? expand_more
The listing gives thickness 3.1mm, 6.0mm, 12.7mm or Custom Manufacturing. Custom outlines and thicknesses are made to drawing; state the tolerance you need.
What optical or electrical performance does it have? expand_more
Listed values: wavelength 250-600nm, 450-700nm, 480-20000nm, 650-20000 Nm. Confirm the values at your operating wavelength, angle and temperature when you request a quote.
Where is this optical mirror used? expand_more
Listed applications: Medical, Civil, Labs, Astronomy and Laser.
What should I include in a quote request? expand_more
Include material, geometry, surface figure, centring and edges and coating, plus quantity and a drawing if the part is custom.
