Application: Home Appliance, Electronics & Instruments, Auto Manufacturing, Daily Products, Computer.
Overview

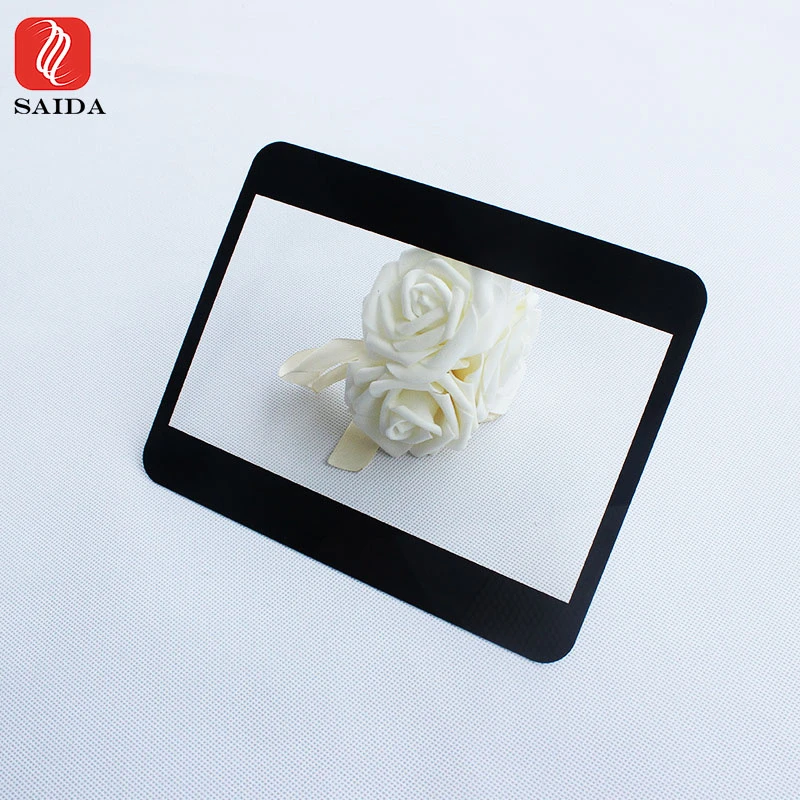

The Premium High Quality Silk Printingtempered Cover Glass for LED LCD Screen Display Touch Panel is supplied as a display / touchscreen cover glass made from Clear Glass, Ultra Clear Glass. Listed geometry: size 1200*360, thickness 0.5-6mm, flat shape. Flatness High Class. It is used in Home Appliance, Electronics & Instruments, Auto Manufacturing, Daily Products and Computer. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Clear Glass, Ultra Clear Glass |
|---|---|
| Shape | Flat |
| Thickness | 0.5-6mm |
| Flatness | High Class |
| Usage | Home Appliance, Electronics & Instruments, Auto Manufacturing, Daily Products, Computer |
| Appearance | Flat Tempered |
| Standard | GB/T9963 |
| Steel Degree | Tempered Glass |
| Thickness of Flat Tempered Glass | 1.1mm |
| Fragment State | I |
| Technics | Chemical Tempered |
| Structure | Solid |
| Technique | Clear Glass, Coated Glass, Tempered |
| Thick Tolerance | +/-0.2mm |
| Size Tolerance | +/-0.3mm |
| Min Size | 20*20 |
| Max Size | 1200*360 |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| Advantage | 1.Monitor grade glass 2.Clear And Soft performance 3.Higher sensitive than ordinary glass. 4.V .L transmittance greater than 88% 5.V. L Reflected less than 8% |
|---|---|
| Application | LCD display, Touch screen glass, PDP, Led TV, Note book PC, outdoor display screen, medical instrument, camera, display screen and so on. |
| Glass material | clear glass,ultra clear glass etc |
| Thickness | 0.5 – 6mm |
| Min size | 20*20mm |
| Max size | 1200*2400mm |
| Edge | flat polished edge, flat hazy edge, pencil hazy edge, simple edge etc |
| Silk screen pringing | accord customer's requirment |
| Hole | Drilling as customer's need |
| Packing | 1.Film processing. 1.Putting paper or cork between glass; 2.Strong wooden crates with steel banding for export. |
What to specify when you request a quote
- Glass type and thickness — listed as “Clear Glass, Ultra Clear Glass”; name the glass (soda-lime, aluminosilicate, borosilicate) and thickness.
- Strengthening — listed as “1.1mm”; state thermal tempering or chemical strengthening and the required surface compression or impact rating.
- Printing and coatings — listed as “Home Appliance, Electronics & Instruments, Auto Manufacturing, Daily Products, Computer”; list silk-screen colours, windows, and any AR / AG / AF coating.
- Outline and edges — listed as “Flat”; send a drawing with cut-outs, holes and edge finish.
- Optical requirements — give transmission, haze or gloss targets for the viewing area.
