Model: TR0693.
Overview

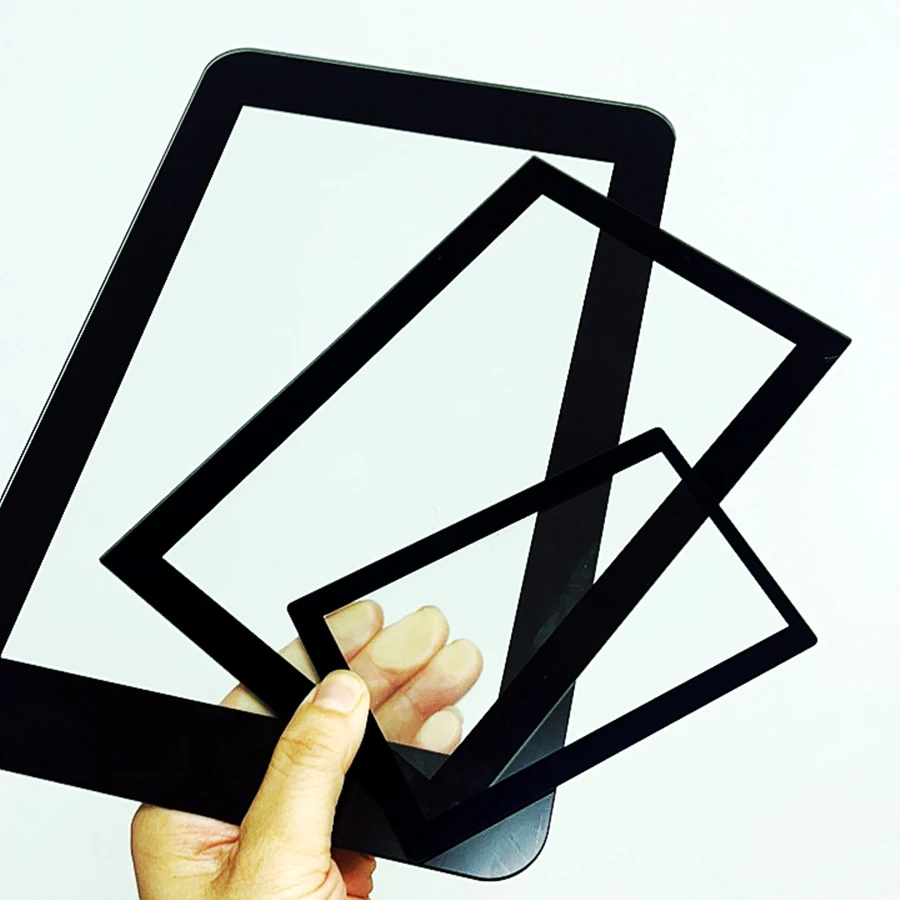

Premium LCD LED Screen Panel Cover Glass for Appliances is a display / touchscreen cover glass made from Aluminosilicate Glass. Listed geometry: according to client desgin or drawing shape. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | according to client desgin or drawing |
|---|---|
| Glass Type | Aluminosilicate Glass |
| Maximium Size | 85 Inch |
| Model NO. | TR0693 |
| Hardness | ≥7 H |
| Printing Color | Black, White ,Silver Others |
| Process flow | tempering ,drilling, edging, water-jet cutting, silk screen printing , coating |
| Surface treatment | AG or AR or AF process |
| Where to use | household panel, touch screen panel, switch panel, display billboard , screen protector |
| Supplier | Jiangyin Tairong Photoelectricity Technology Ltd |
Technical data
| Thickness(mm) | 0.50 /0.7/0.8 /1.1 /1.3 /1.5/ 1.8 /2 /3.0 |
|---|---|
| Process flow : | tempering ,drilling, edging, water-jet cutting, silk screen printing , coating |
| Surface treatment: | AG or AR or AF process |
| Shape: | according to client desgin or drawing |
| MOQ | 500Pieces |
| Where to use : | household panel, touch screen panel, switch panel, display billboard , screen protector |
What to specify when you request a quote
- Glass type and thickness — listed as “Aluminosilicate Glass”; name the glass (soda-lime, aluminosilicate, borosilicate) and thickness.
- Strengthening — state thermal tempering or chemical strengthening and the required surface compression or impact rating.
- Printing and coatings — listed as “≥7 H”; list silk-screen colours, windows, and any AR / AG / AF coating.
- Outline and edges — listed as “according to client desgin or drawing”; send a drawing with cut-outs, holes and edge finish.
- Optical requirements — give transmission, haze or gloss targets for the viewing area.
Engineering guides for this part
For material grades and coating options, see LED Cover Glass Material Guide for Optical Encapsulation. How parts like this are machined and finished is covered in AR Coating Process for Optical Glass Windows – Complete Manufacturing Overview. For an application example, read AR Coated Glass for Appliance Touch Screens: Specs and Selection. A related standard product is AR-Coated High-Transparency Optical Glass.
FAQ
What is the Premium LCD LED Screen Panel Cover Glass for Appliances made of? expand_more
It is listed as Aluminosilicate Glass. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
What should I include in a quote request? expand_more
Include glass type and thickness, strengthening, printing and coatings, outline and edges and optical requirements, plus quantity and a drawing if the part is custom.
