Product type: Spherical Lenses. Application: Lighting, Medical, Optical, Photography. Model: TT Lens 18.
Overview

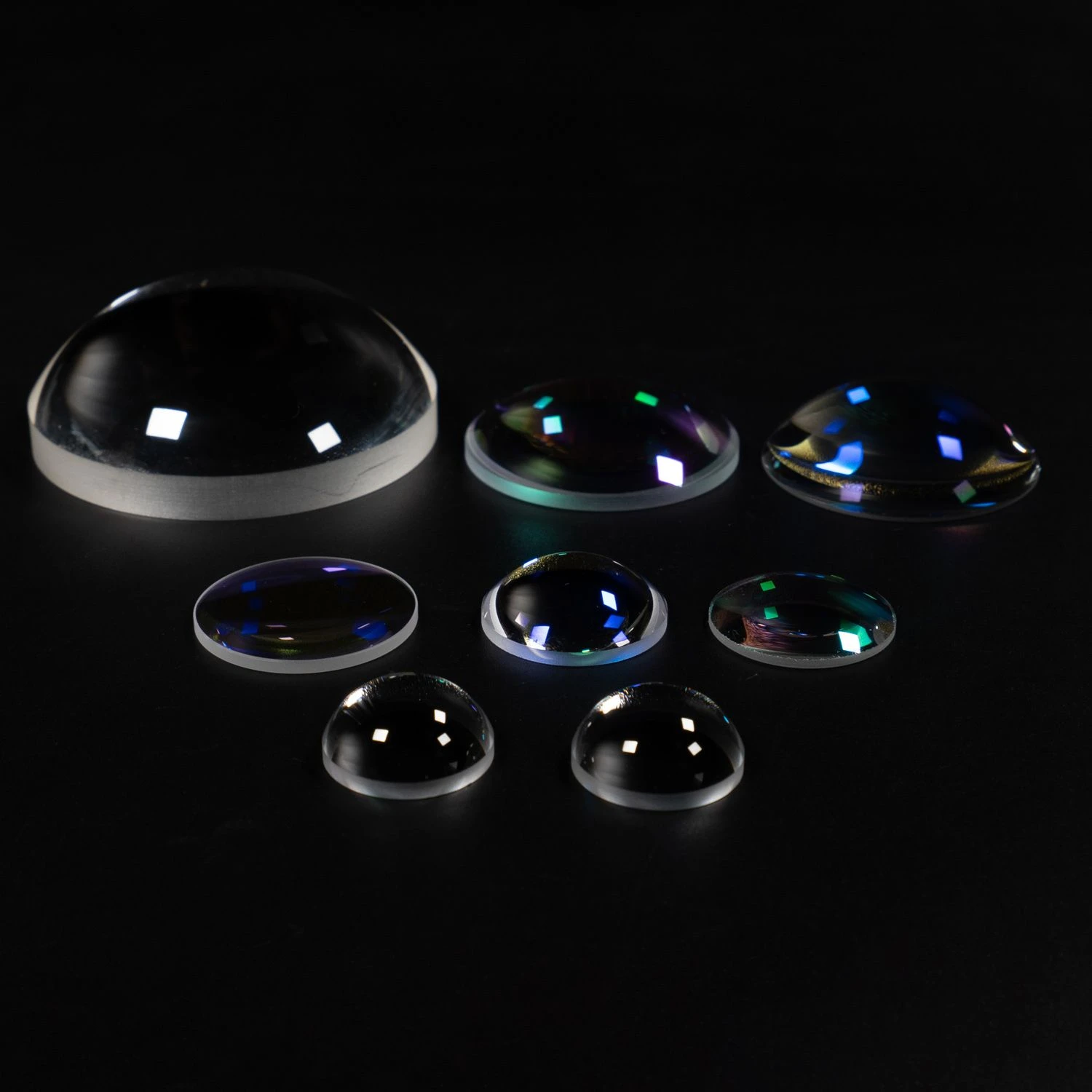

The Professional Factory Optical Components Sapphire Lens for Industry is supplied as an optical lens made from Optical Glass. Listed geometry: thickness as Required, spherical lenses shape. Optical / electrical data: transmittance >95%. Coating: HMC; surface quality 40-20 or Better. Listed for Lighting, Medical, Optical and Photography applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Spherical Lenses |
| Shape | Spherical Lenses |
| Thickness | as Required |
| Transmittance | >95% |
| Coating | HMC |
| Surface Quality | 40-20 or Better |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | TT Lens 18 |
| Lenses Color | Clear |
| Dimensional Tolerance | +0/-0.01 |
| Clear Aperature | >90% |
| Focal Length | +/-1% |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
Technical data
| Name | Professional Factory Optical Components Sapphire Lens for Industry |
|---|---|
| Material | Sapphire |
| Size | D1mm-D300mm |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “+0/-0.01”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20 or Better”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “HMC”; list the band and reflectance or transmission target.
Engineering guides for this part
For material grades and coating options, see Fused Silica and Other Glass Materials for Machined Components. How parts like this are machined and finished is covered in Optical Glass Polishing for High Clarity Surfaces. For an application example, read Boost Yield with Fused Silica Viewports for Vacuum and Optical Systems. Before sending a drawing, check Fused Silica Refractive Index: Key to Optical Design Improvement. A related standard product is Fused Silica Glass Wafers (2–12", JGS1/JGS2).
