Model: K250321008.
Overview

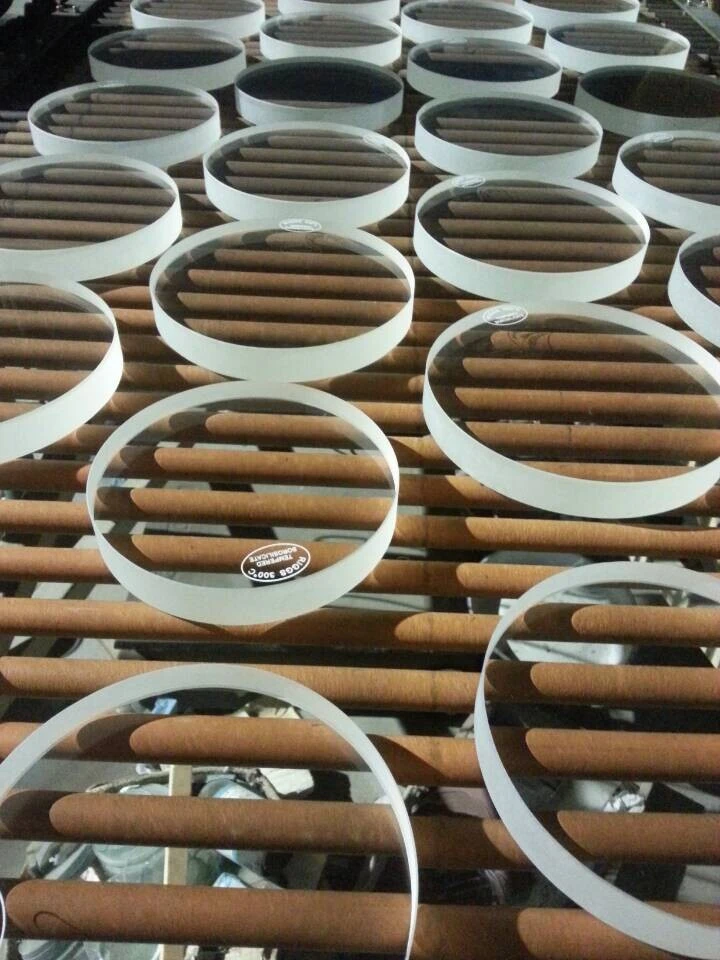

The Pyrex Sight Reflex Glass Sheet is supplied as a sight / viewing glass made from High borosilicate glass. Listed geometry: size Od From 50mm to 500mm. Optical / electrical data: transmittance ≥91%, sheet resistance ≥200 ºC. Temperature 500ºC. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | High borosilicate glass |
|---|---|
| Size | Od From 50mm to 500mm |
| Model NO. | K250321008 |
| Process | Cut, Polish, Ground, Tempered |
| Property 1 | Borosilicate Heat Resistant |
| Shipment | by Sea, by Air, by Courier |
| Item | High Pyrex Pressed Round Sight Glass |
| Coefficient of thermal expansion | 3.3 × 10 /K |
| Max continuous operating temperature | 500ºC |
| Thermal shock resistance | ≥200 ºC |
| Light transmittance | ≥91% |
| Standard thickness | 4mm,5mm,6mm,8mm,10mm,12mm,15mm,20mm |
| Available processing | Cutting, grinding, chamfering, drilling, tempering |
| Applicable medium | Water, oil, steam, weak acid, weak alkali liquid & gas |
| Power industry | Boiler sight window, steam generator liquid level sight glass |
| Chemical & petrochemical | Reaction kettle, storage tank, pipeline viewing window |
| Food & beverage | Fermentation tank, beverage storage vessel sight glass |
| Pharmaceutical industry | Mixing tank, sterile liquid storage equipment |
| Thermal machinery | Industrial oven, drying furnace, heating equipment observation window |
| Hydraulic equipment | Oil tank, cooling water tank liquid level sight window |
| Edge polishing | Smooth anti-cut edge, R round corner & C chamfer |
| Drilling | Single or multiple mounting holes for flange installation |
| Tempering strengthening | Improve pressure resistance and explosion-proof performance |
| Inner packing | Each sight glass wrapped with shockproof PE foam, foam separators between sheets to prevent scratches and collision |
| Outer packing | Export standard plywood case, moisture-proof and shockproof for sea and air transport |
| Sample service | Small test samples available for performance inspection |
| Temperature resistance | Long working temperature ≤ 450 ° C, short time working ≤ 500 ° C |
| Light transmission rate | 95% up |
| Hydraulic Water-resistant strength | More than test 40Kgf/cm ² |
| Thermal stability | T300 ° C |
| Linear expansion coefficient (0-300 ° C) | 3.3 × 10-7 K-1 |
| Softening temperature | 820° C |
| Supplier | Jinan Honhai Glass Company Limited |
What to specify when you request a quote
- Glass type and thickness — listed as “High borosilicate glass”; name the glass and thickness.
- Temperature and pressure — listed as “3.3 × 10 /K”; give working temperature, thermal shock and any pressure rating.
- Strengthening and safety — listed as “Improve pressure resistance and explosion-proof performance”; state tempering, lamination or the safety standard.
- Outline and edges — listed as “Od From 50mm to 500mm”; send a drawing with outline, holes and edge finish.
