Model: OL-0224.
Overview

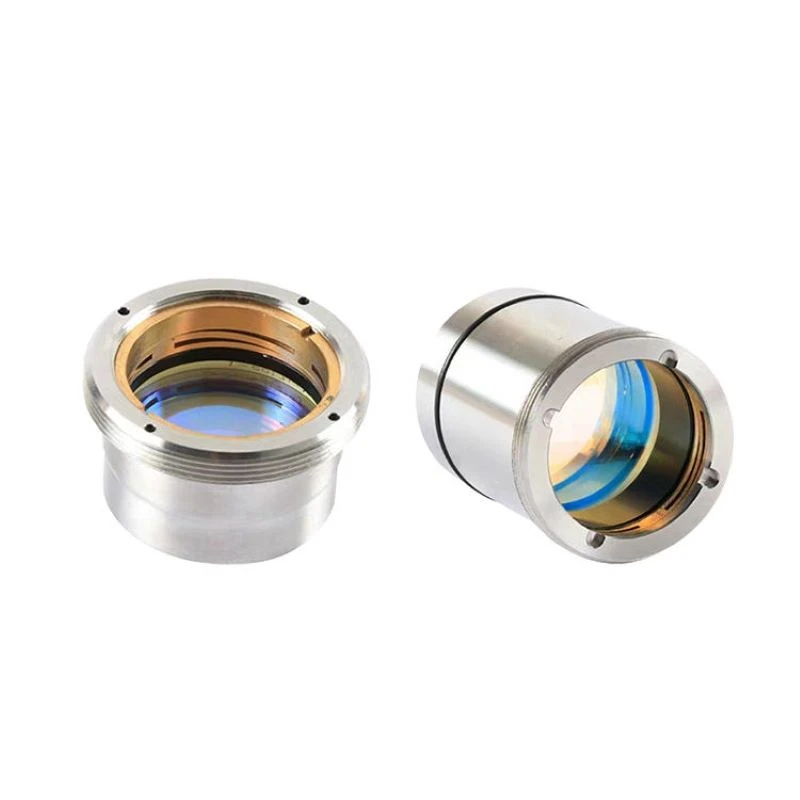

Quartz Jgs1 Laser Focus Collimating Lens for Laser Cutting /Welding Machine: an optical lens. Optical / electrical data: wavelength 1064 Nm. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Wavelength | 1064 Nm |
|---|---|
| Model NO. | OL-0224 |
| Standard Component | Non-Standard Component |
| Spare Parts Type | Fiber Laser Optics |
| Patent | Coating Technology |
| Supplier | C-Laser (Taicang) Material Technology Co., Ltd. |
Technical data
| Product Name | Fiber Collimator/Focus Lens |
|---|---|
| Material | Germany corning 7980 |
| Hot-sale | Dia25.4mm, Dia 28mm, Dia 30mm, Dia34mm,Dia37mm,Dia38.1mm |
| Function | Protect focus lens and improve the efficiency of laser cutting head |
What to specify when you request a quote
- Material — name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
