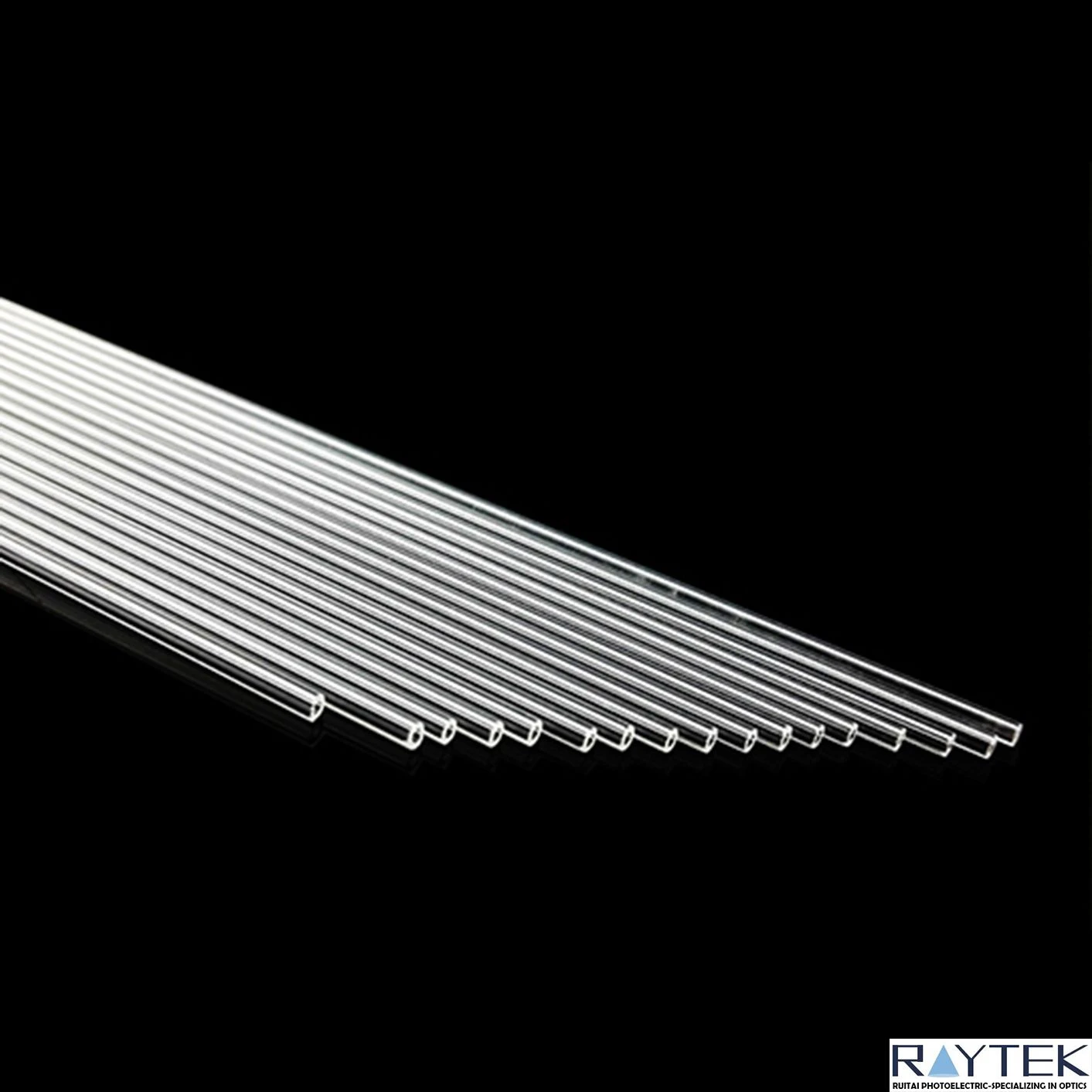

Product type: Quartz Tube. Model: RAY-XS066#.
Overview
The Quartz Tube/Silica Tube/Quartz Capillary Tube/Fused Silica Tube/Quartz Glass Tube is supplied as a precision glass tube / rod made from Quartz. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Quartz |
|---|---|
| Type | Quartz Tube |
| Model NO. | RAY-XS066# |
| Capacity | Customized |
| Chemical properties | 1, high temperature resistance |
| Physical properties | 1, good thermal stability |
| Main Cooperation Materials Manufacturers | CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
What to specify when you request a quote
- Material — listed as “Quartz”; name the glass (borosilicate 3.3, quartz, soda-lime).
- OD, ID and wall — listed as “RAY-XS066#”; give outer and inner diameter or wall and their tolerances.
- Length and ends — give length, end finish and any closed or flared ends.
- Straightness and bore — state straightness and bore tolerance for precision tubing.
