Rectangle opaque Fused Silica sheet wafer Frosty Quartz Glass Plate for Semiconductor

Rectangle opaque Fused Silica sheet wafer Frosty Quartz Glass Plate for Semiconductor — a fused silica / quartz wafer. Specs, RFQ checklist and custom…

Quartz PlateType
Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting, GlassApplication
HB-QPModel NO.
99.95%Purity
Rectangle opaque Fused Silica sheet wafer Frosty Quartz Glass Plate for Semiconductor

Product type: Quartz Plate. Application: Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting, Glass. Model: HB-QP.

Overview

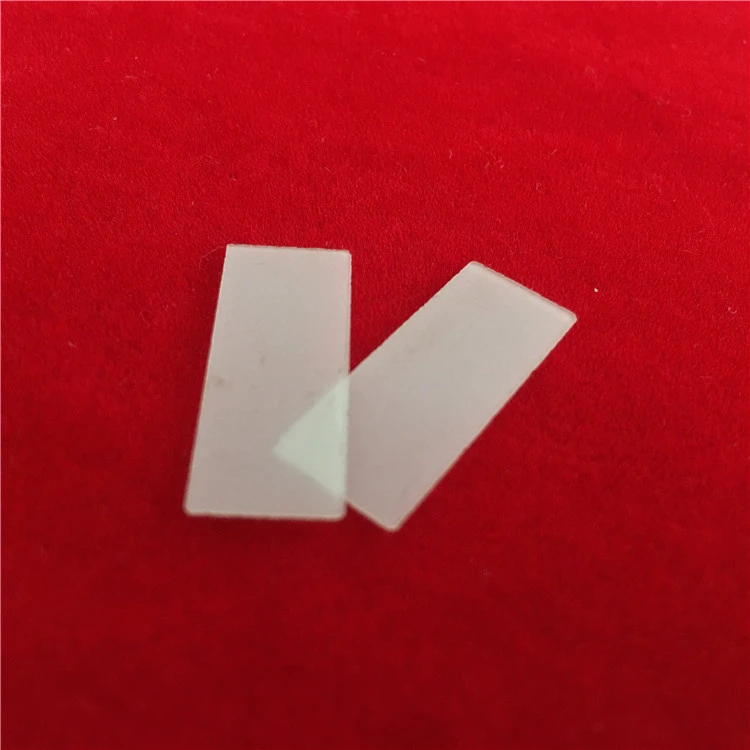

Rectangle opaque Fused Silica sheet wafer Frosty Quartz Glass Plate for Semiconductor is a fused silica / quartz wafer. Temperature 1000 Degree. Listed for Rubber, Plastic, Chemical, Construction and Metallurgy applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.

Specifications

Type Quartz Plate
Application Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting, Glass
Model NO. HB-QP
Purity 99.95%
Long Time Working Temperature 1000 Degree
Short Time Working Temperature 1100 Degree
Density 2.21g/cm3
Color opaque quartz plate
Keyword1 opaque quartz discs
Keyword2 milky white quartz discs with step
ISO 9001 2015 and IATF 16949
ISO9001 2015 Quality Management System
Period of validity from2024.10.17 to 2027.10.25
Date MAY .08.2026
Supplier Lianyungang Highborn Technology Co., Ltd.

Technical data

Property Content Property Index
Density 1.9-2.0x103g/cm3
Tensile Strength 4.9×107Pa(N/m2)
Compression Strength >1.0×109Pa
Coefficient of Thermal Expansion(20℃-300℃) 5.4×10−7cm/cm℃
Thermal Conductivity(20℃) low
Specific Heat(20℃) 650J/kg℃
Softening Point 1600℃
Annealing Point 1100℃

What to specify when you request a quote

  • Diameter and flat / notch — state diameter, flat or notch and their tolerances.
  • Thickness and TTV — give thickness, its tolerance and total thickness variation.
  • Polish and roughness — specify single- or double-side polish and roughness.
  • Flatness, bow and warp — quote flatness, bow and warp limits.
  • Material grade — name the grade (JGS1/JGS2, Borofloat 33, alkali-free, sapphire orientation).

Engineering guides for this part

For material grades and coating options, see Fused Quartz Wafer Substrate Selection: Materials & Coatings for Semiconductor and Optical Systems. How parts like this are machined and finished is covered in Precision Glass Hole Machining for MEMS and Wafer Parts. For an application example, read Fused Silica Glass Wafers for Precision Appliance Electronics. Before sending a drawing, check Fused Silica Refractive Index: Key to Optical Design Improvement. A related standard product is Fused Silica Glass Wafers (2–12", JGS1/JGS2).

FAQ

Where is this fused silica / quartz wafer used? expand_more
Listed applications: Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting and Glass.
What should I include in a quote request? expand_more
Include diameter and flat / notch, thickness and ttv, polish and roughness, flatness, bow and warp and material grade, plus quantity and a drawing if the part is custom.
